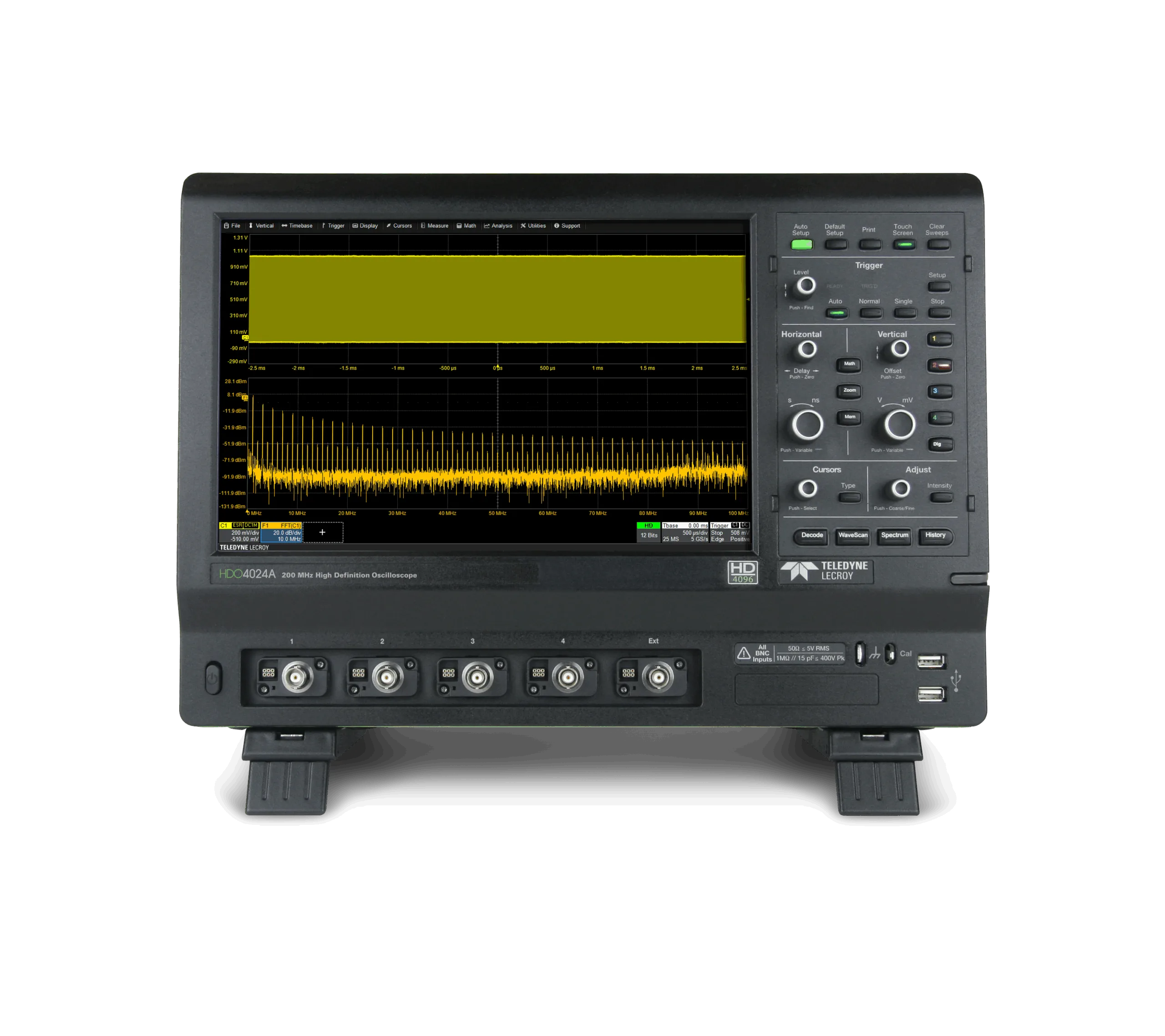

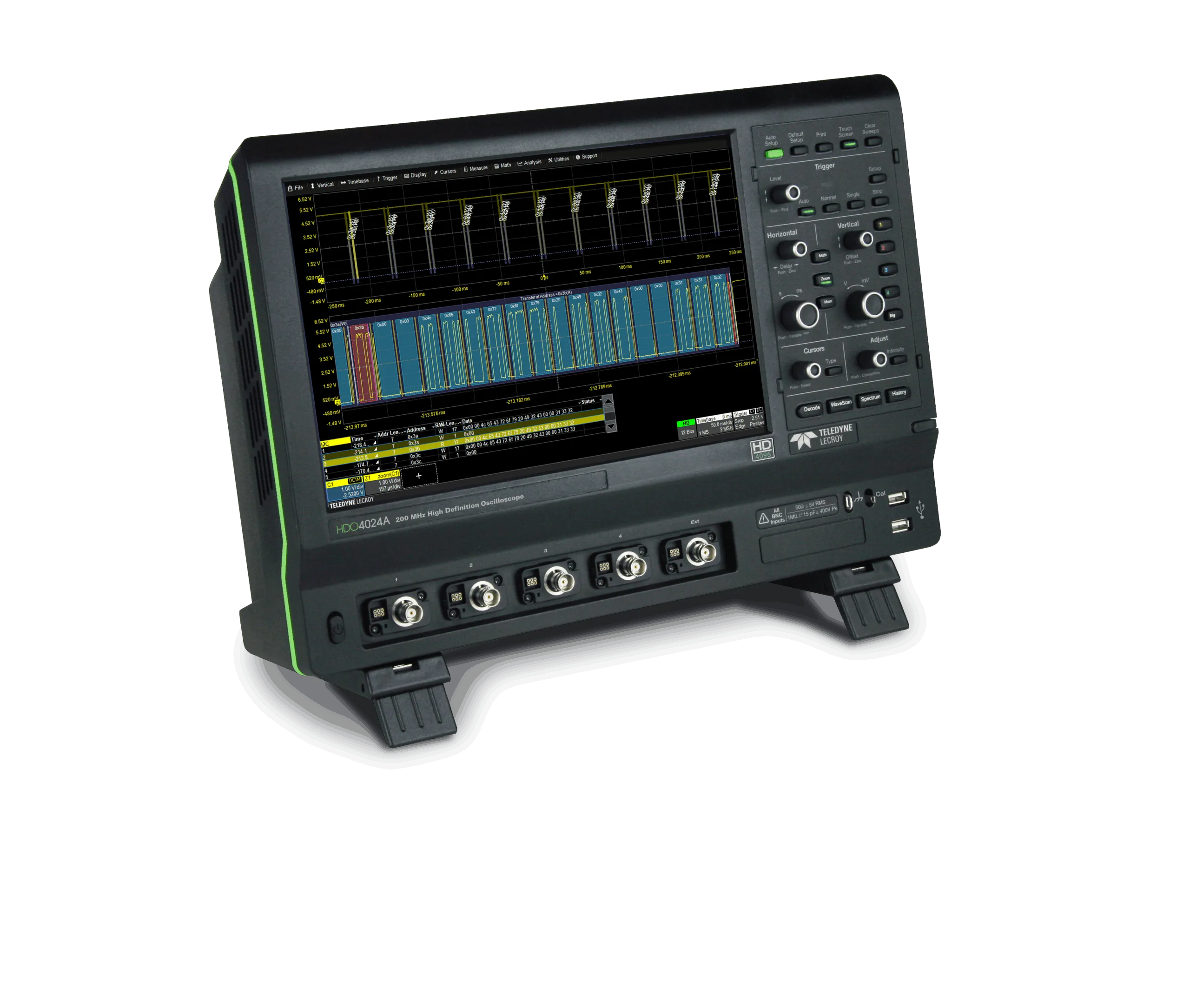

HDO4024A
200 MHz, 10 GS/s, 4 Ch, 12.5 Mpts/Ch, 12-Bit HD Oscilloscope with 12.1" WXGA Color Display
Article no.
HDO4024A
- Channels
- 4
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 25 Mpts
CHF 18'685.09
incl. 8.1% VAT · CHF 17'285.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 200 MHz bandwidth
- 10000 MS/s sampling rate
- 25 Mpts memory depht
- 12 Bits vertical resolution
The Teledyne Lecroy HDO4024A is a high-definition oscilloscope featuring a bandwidth of 200 MHz and a sampling rate of 10 GS/s across its four channels. Each channel is equipped with a memory depth of 12.5 million points, allowing for detailed signal analysis and data capture. The device offers a vertical resolution of 12 bits, enhancing the precision of waveform measurements. It includes a 12.1-inch WXGA color display with touch screen functionality, providing an interactive and clear interface for users. The total memory depth available is 25 million points, supporting extended data acquisition sessions. This oscilloscope does not include digital channels, focusing solely on analog signal processing. Its combination of high sampling rate, substantial memory depth, and advanced display features make it suitable for various detailed electronic testing and measurement applications.
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 25 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- No
- Touch Screen
- Yes
- Imax AC
