HDO4034A-MS

350 MHz, 4+16 Ch, 12-Bit, 10 GS/s, 12.5 Mpts/Ch HD Mixed-Signal Oscilloscope with 12.1" WXGA Color D

Article no. HDO4034A-MS

Channels: 4
Bandwidth: 350 MHz
Sampling Rate/Channels: 10000 MS/s
Memory Depht: 25 Mpts

CHF 25'776.45

incl. 8.1% VAT · CHF 23'845.00 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

4 channels
350 MHz bandwidth
10000 MS/s sampling rate
25 Mpts memory depht
12 Bits vertical resolution

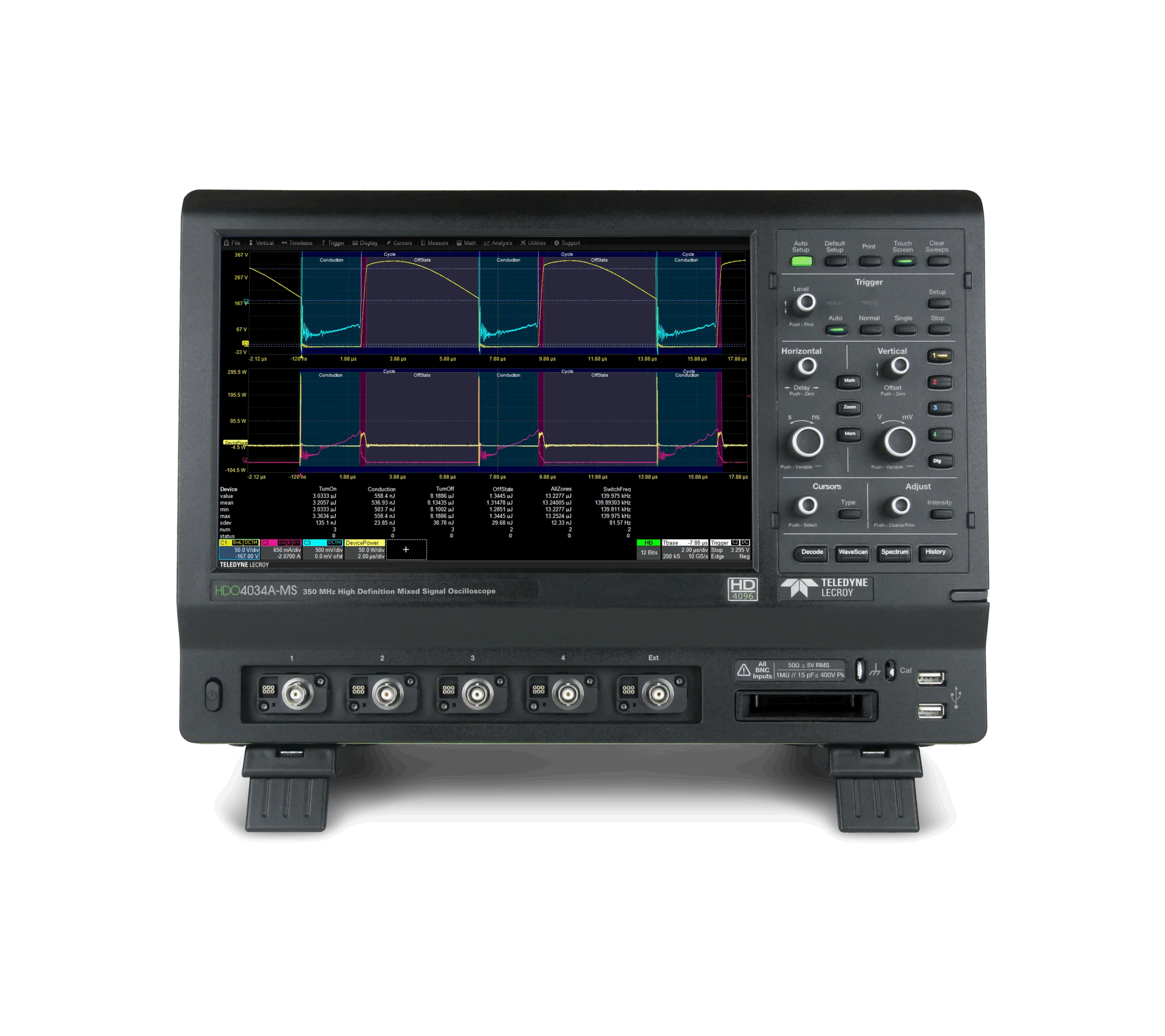

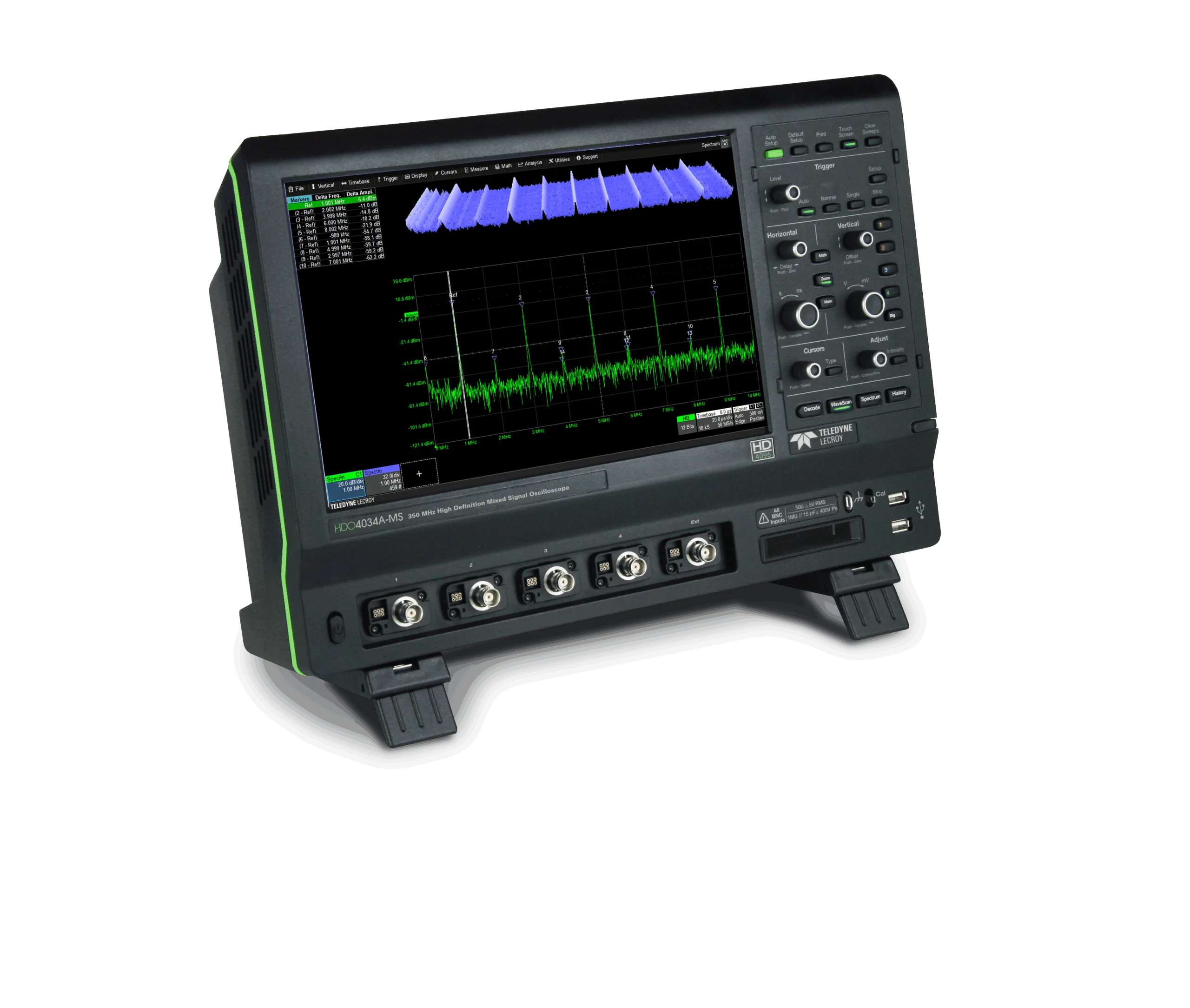

The Teledyne Lecroy HDO4034A-MS is a high-definition mixed-signal oscilloscope featuring a bandwidth of 350 MHz and four analog channels complemented by sixteen digital channels. It offers a vertical resolution of 12 bits and a maximum sampling rate of 10 GS/s per channel, enabling detailed signal analysis. Each channel is equipped with a memory depth of 12.5 million points, totaling 25 million points across all channels, which supports extensive data capture for complex waveforms. The device includes a 12.1-inch WXGA color display with touch screen functionality, facilitating intuitive operation and clear visualization of signals. This oscilloscope is designed to handle high-speed measurements with precision, making it suitable for various testing and diagnostic applications. Its mixed-signal capability allows simultaneous analysis of analog and digital signals, enhancing versatility in signal examination. The combination of high sampling rate, deep memory, and multiple channels provides comprehensive insight into signal behavior over time.

Technical data
