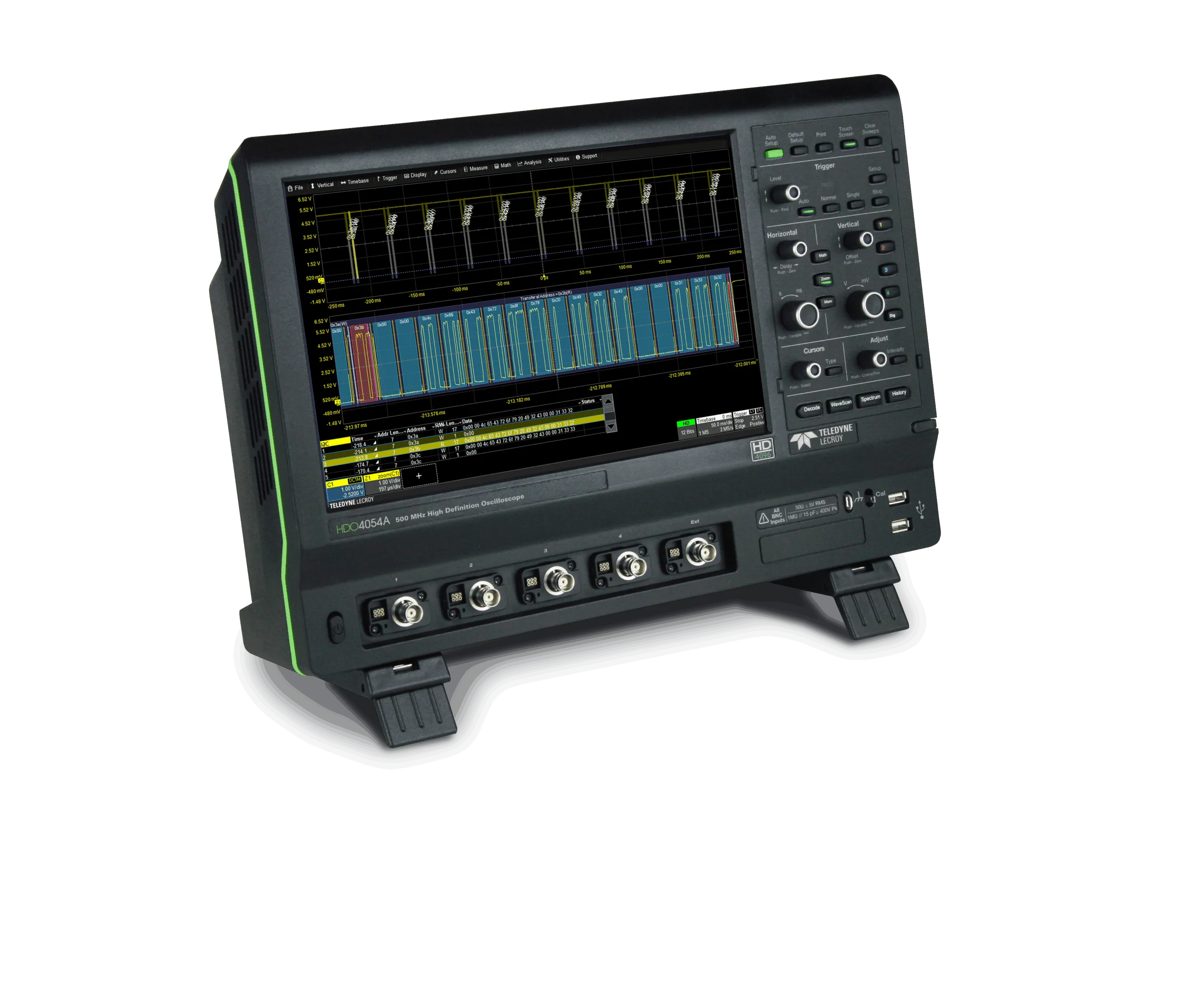

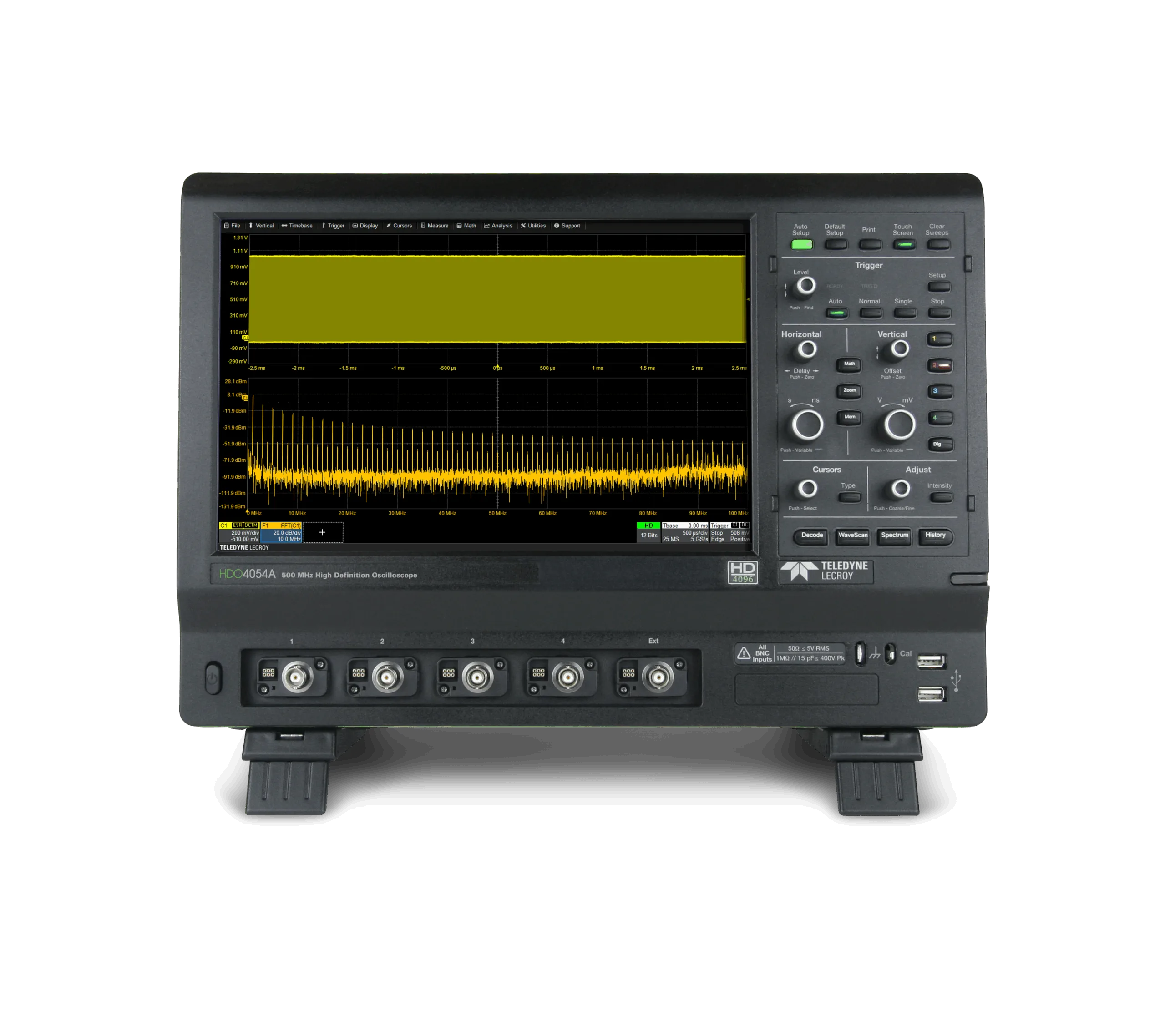

HDO4054A
Description
The Teledyne Lecroy HDO4054A is a high-definition oscilloscope featuring a bandwidth of 500 MHz and a sampling rate of 10 GS/s across its four channels. Each channel is equipped with a memory depth of 12.5 million points, allowing for detailed signal capture and analysis. The device offers a vertical resolution of 12 bits, enhancing the precision of waveform measurements. It includes a 12.1-inch WXGA color display with touch screen functionality, providing an intuitive interface for users. The total memory depth available is 25 million points, supporting extensive data storage for complex signal analysis. This oscilloscope does not include digital channels but is designed to handle analog signals with high accuracy. The combination of its high sampling rate, substantial memory depth, and advanced display features makes it suitable for various detailed electronic testing and measurement applications.
Additional information
500 MHz, 10 GS/s, 4 Ch, 12.5 Mpts/Ch, 12-Bit HD Oscilloscope with 12.1" WXGA Color Display
