HDO6054B-MS
500 MHz, 4+16 Ch, 12 bits, 10 GS/s, 50 Mpts/Ch HD Mixed Signal Oscilloscope with 15.6" Display
Article no.
HDO6054B-MS
- Channels
- 4
- Bandwidth
- 500 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 250 Mpts
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 4 channels
- 500 MHz bandwidth
- 10000 MS/s sampling rate
- 250 Mpts memory depht
- 12 Bits vertical resolution

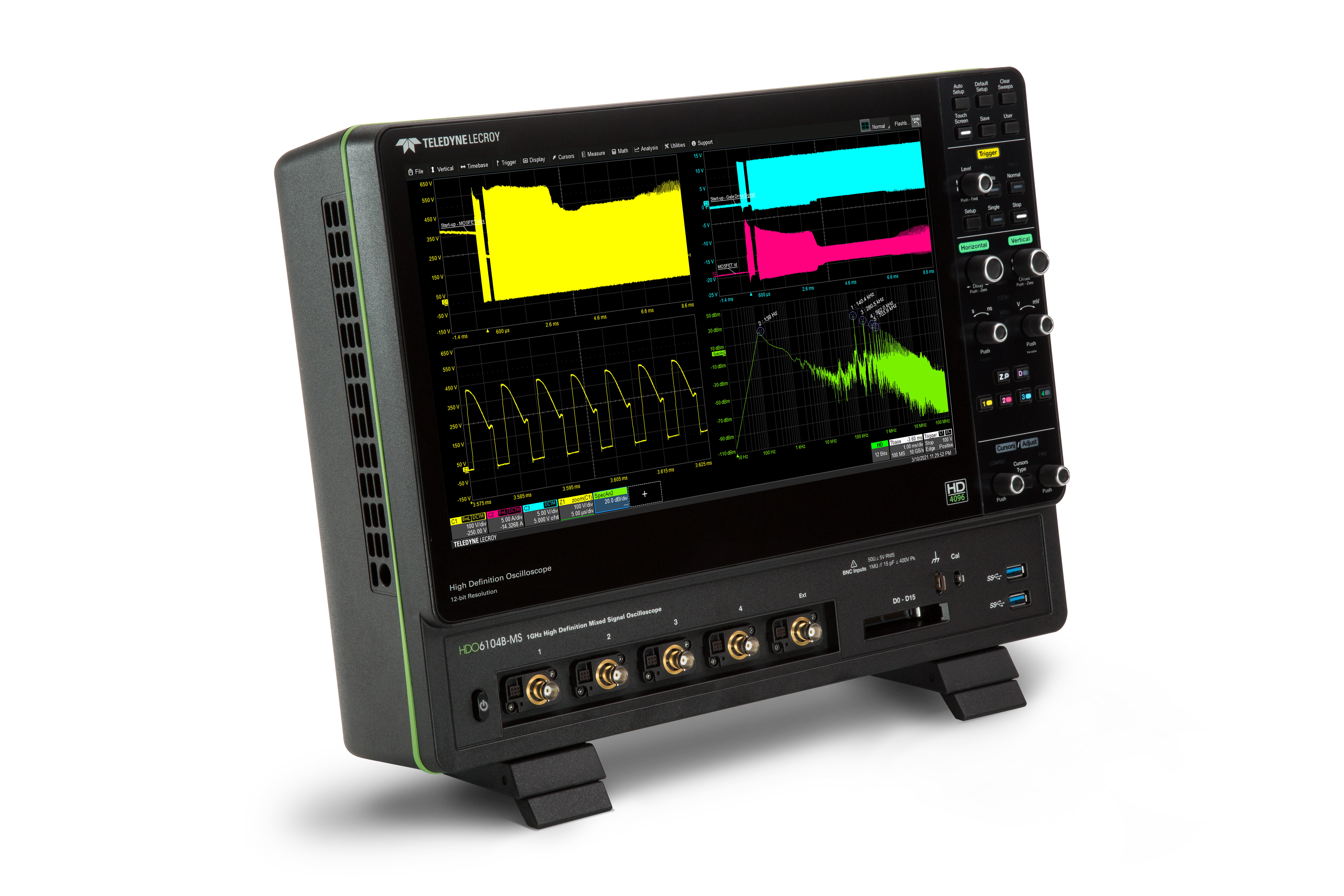

The Teledyne Lecroy HDO6054B-MS is a high-definition mixed signal oscilloscope featuring a bandwidth of 500 MHz and four analog channels complemented by sixteen digital channels. It offers a vertical resolution of 12 bits and a maximum sampling rate of 10 GS/s per channel, enabling detailed signal analysis. Each channel is equipped with a memory depth of 50 million points, allowing for extensive data capture and review. The device includes a 15.6-inch touchscreen display, facilitating user interaction and data visualization. With a sampling rate of 10,000 MS/s and memory depth of 250 Mpts, it supports high-speed and high-resolution measurements. The oscilloscope is designed to handle complex mixed signal environments, combining analog and digital signal acquisition in one instrument. Its advanced features make it suitable for detailed waveform analysis and troubleshooting in various electronic applications.

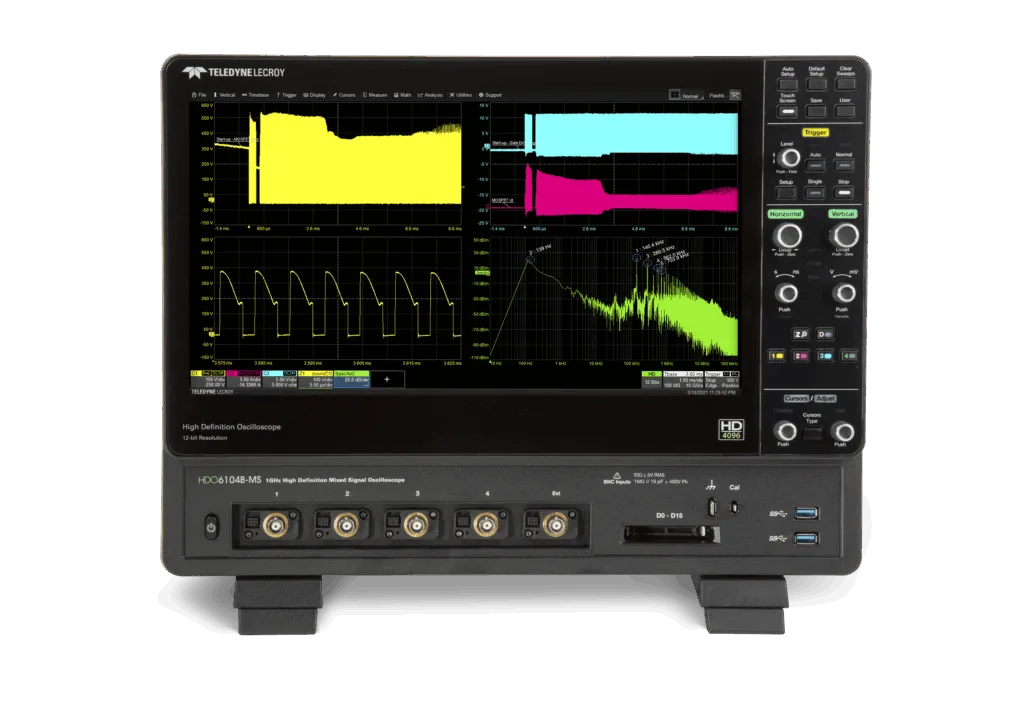

Video
HDO6054B-MS
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 500 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 250 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Yes
- Touch Screen
- Yes
- Imax AC
