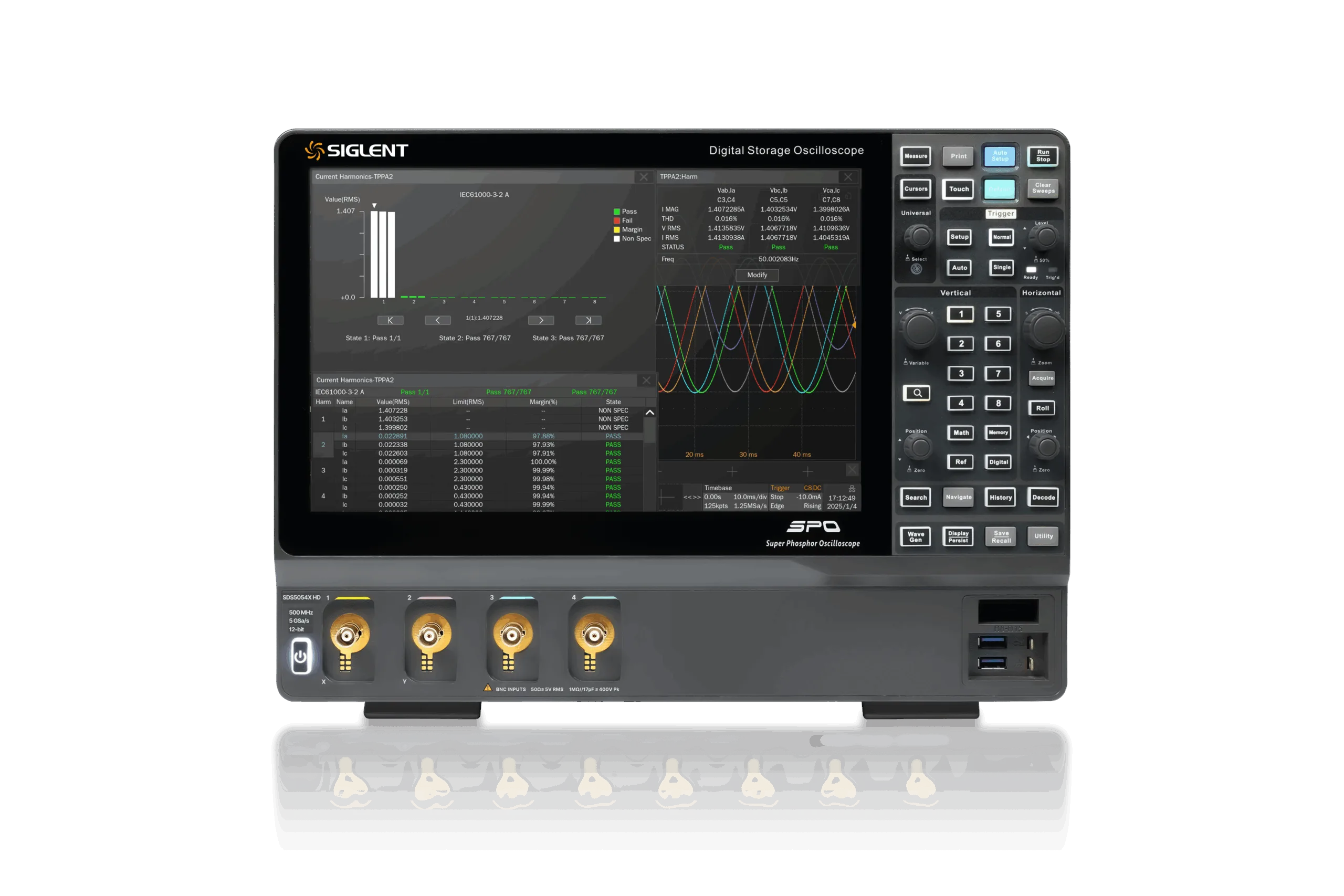

SDS5054X HD
4-ch, 500 MHz, 5 GSa/s, 12-bit, 2.5 Gpts/ch memory depth, 12.1” capacitive touch screen
Article no.
SDS5054X HD
- Channels
- 4
- Bandwidth
- 500 MHz
- Sampling Rate/Channels
- 2500 MS/s
- Memory Depht
- 2500 Mpts
CHF 9'760.49
incl. 8.1% VAT · CHF 9'029.13 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 500 MHz bandwidth
- 2500 MS/s sampling rate
- 2500 Mpts memory depht
- 12 Bits vertical resolution
The Siglent SDS5054X HD features four channels with a bandwidth of 500 MHz and a sampling rate of 2.5 GSa/s per channel. It offers a vertical resolution of 12 bits and a memory depth of 2.5 Gpts per channel, allowing for detailed signal analysis. The device is equipped with a 12.1-inch capacitive touch screen, providing an interactive interface for users. Each channel supports a sampling rate of 2500 MS/s and a memory depth of 2500 Mpts, ensuring high data acquisition capabilities. The oscilloscope is designed to handle complex signal measurements with precision and clarity. Its four-channel configuration enables simultaneous monitoring of multiple signals. The touch screen enhances usability by allowing intuitive control and navigation through the device’s functions.
Video
SDS5054X HD
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 500 MHz
- Sampling Rate/Channels
- 2500 MS/s
- Memory Depht
- 2500 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
Presentation
Product presentation
PDFDocuments
