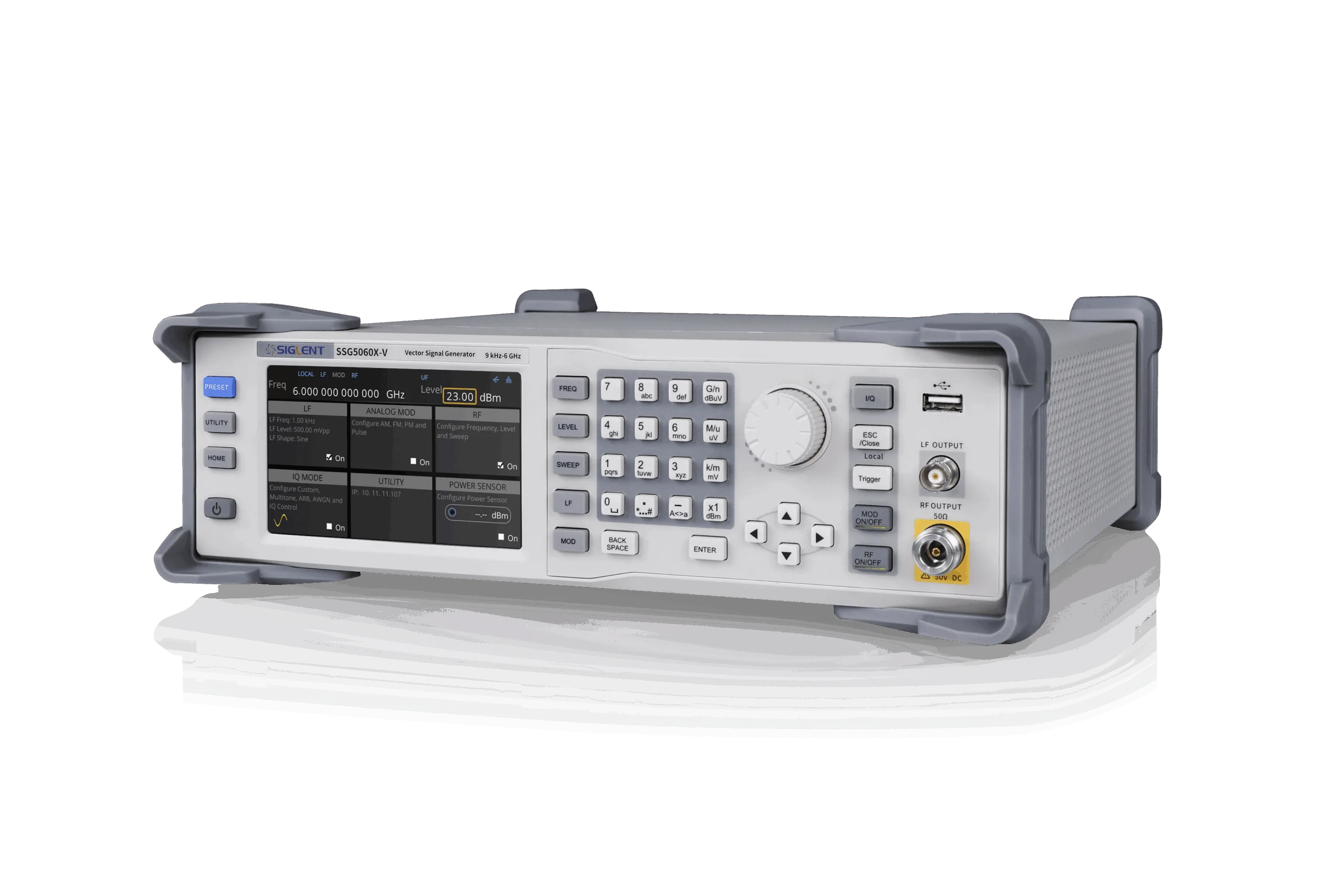

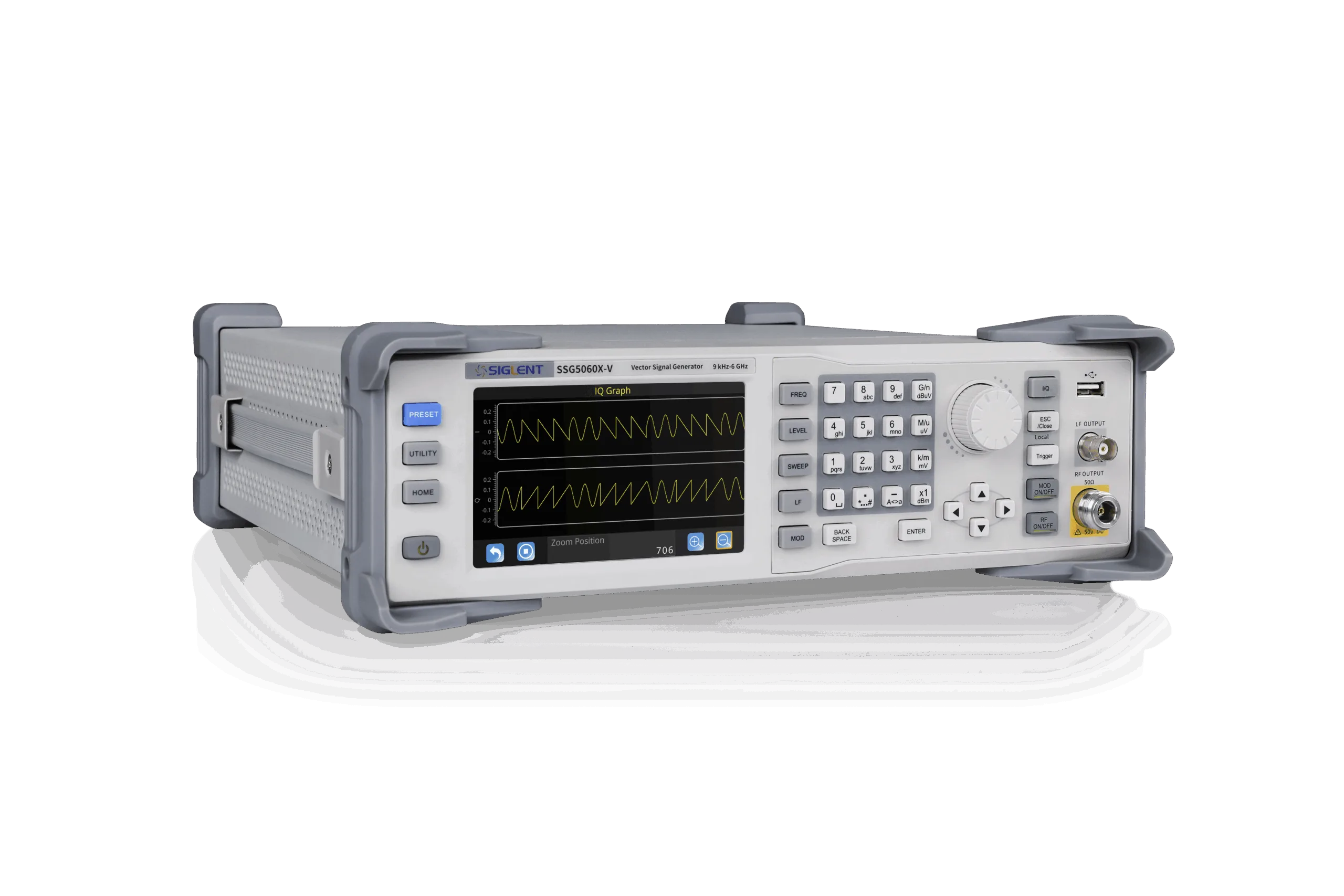

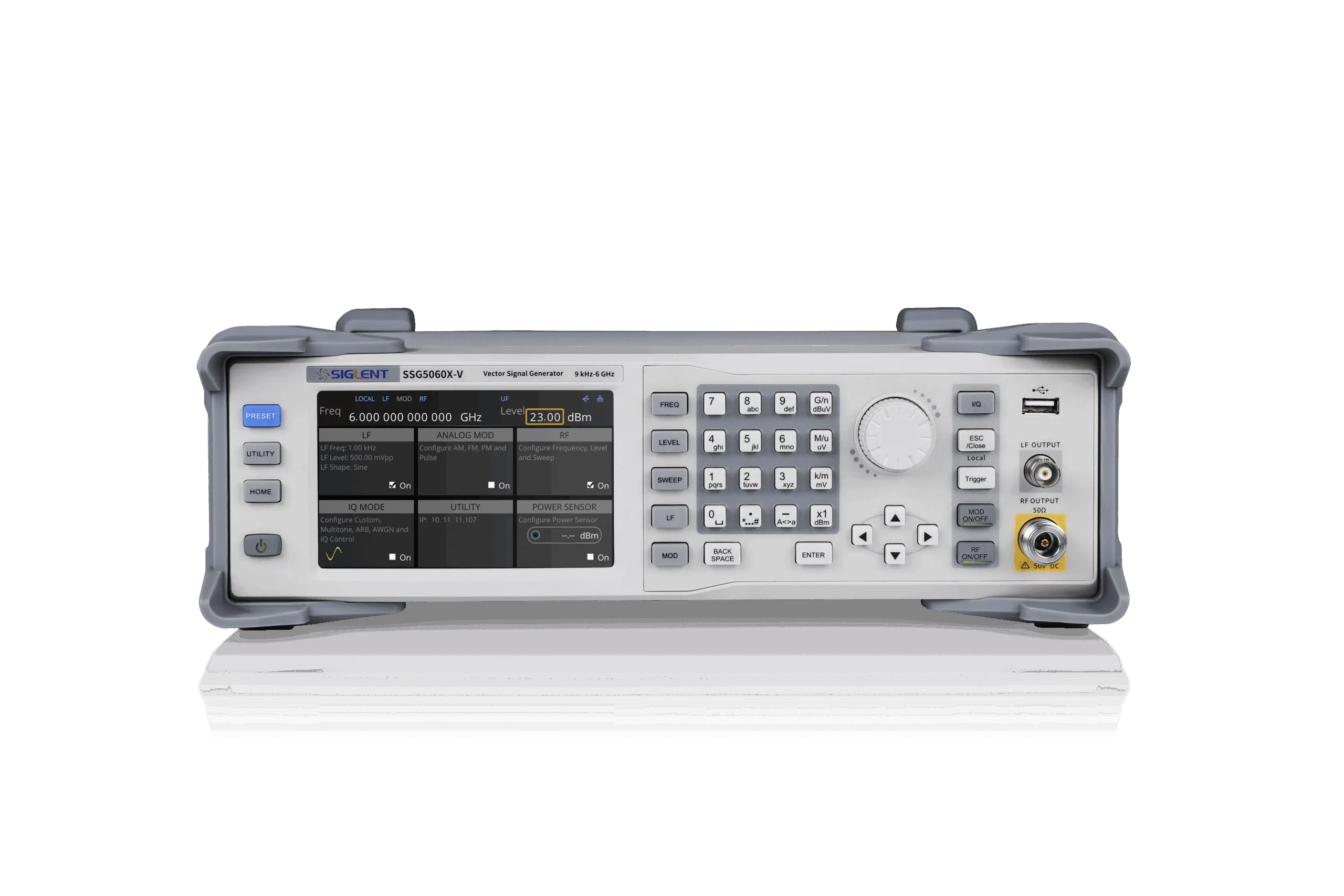

SSG5040X-V
9 k - 4 GHz; -140 dBm ~ +26 dBm; 0.001Hz frequency resolution, Phase noise -120 dBc/Hz @1 GHz, 20 kHz offset; 5 inch TFT touch-screen; with 60 MHz internal IQ modulation
Article no.
SSG5040X-V
- Channels
- 1
- Frequency
- 4000 MHz
- Amplitude
- 26 dBm
- IQ Bandwidth
- 150 MHz
CHF 9'444.58
incl. 8.1% VAT · CHF 8'736.89 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1 channels
- 4000 MHz frequency
- 26 dBm amplitude
- 150 MHz iq bandwidth
The SSG5040X-V by Siglent operates within a frequency range of 9 kHz to 4 GHz, offering a maximum frequency of 4000 MHz. It features a frequency resolution of 0.001 Hz and a phase noise level of -120 dBc/Hz at 1 GHz with a 20 kHz offset. The device supports an amplitude range from -140 dBm to +26 dBm, with a maximum amplitude of 26 dBm. It includes a 5-inch TFT touch-screen for user interaction and is equipped with 60 MHz internal IQ modulation. The IQ bandwidth is specified at 150 MHz, allowing for detailed signal analysis. This combination of features makes the SSG5040X-V suitable for precise frequency generation and modulation tasks.
Video
SSG5040X-V
Technical data
Specifications
4- Channels
- 1
- Frequency
- 4000 MHz
- Amplitude
- 26 dBm
- IQ Bandwidth
- 150 MHz
