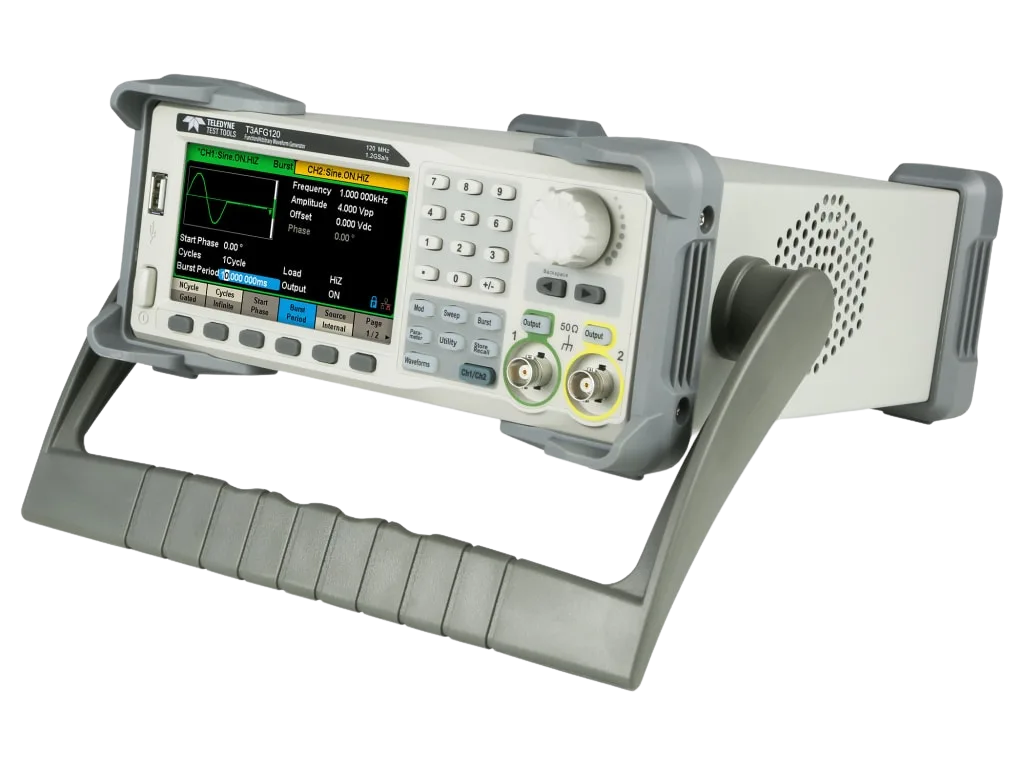

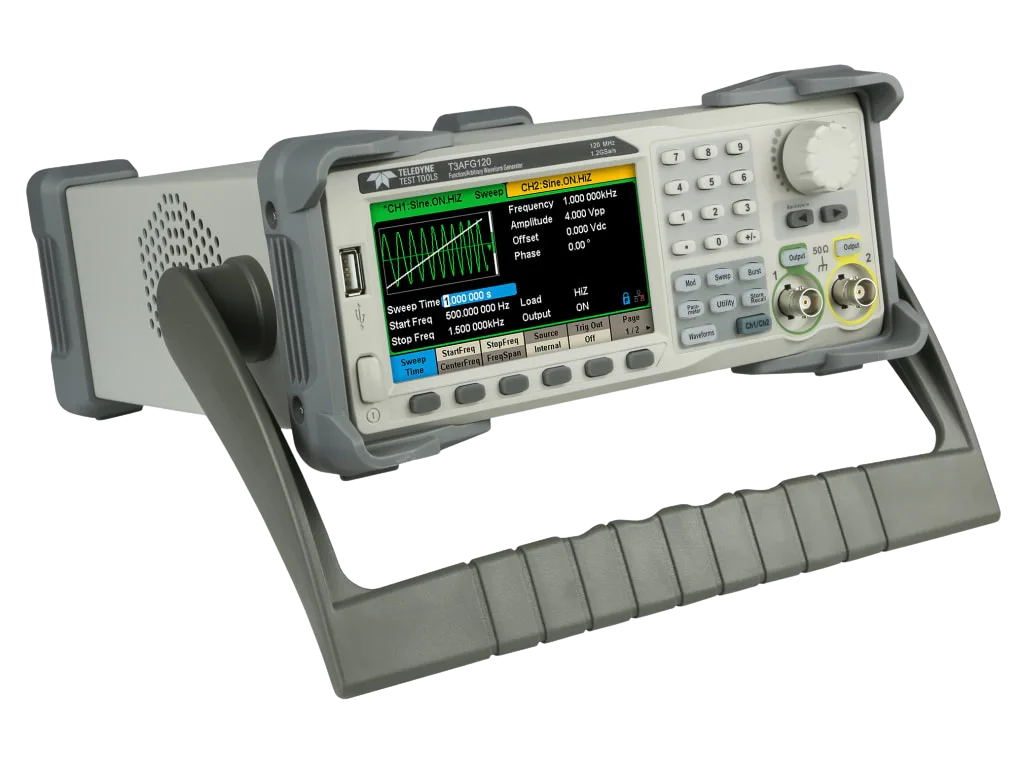

T3AFG80
80 MHz, 1.2 GS/s, 8 Mpts, 2 Channel, 20 Vpp Function/Arbitrary Waveform Generator
Article no.
T3AFG80
- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 80 MHz
- Amplitude
- 10 V
CHF 1'907.97
incl. 8.1% VAT · CHF 1'765.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 16 Bits vertical resolution
- 80 MHz frequency
- 10 V amplitude
- Sweep
The Teledyne Lecroy T3AFG80 is a function and arbitrary waveform generator featuring a maximum frequency of 80 MHz and a sampling rate of 1.2 GS/s. It offers two channels and a memory depth of 8 million points, allowing for detailed waveform generation and storage. The device supports sweep and burst modes, providing flexibility in signal output. It has a minimum transition time of 8.4 nanoseconds and a minimum pulse width of 16.3 nanoseconds, enabling precise timing control. The amplitude of the output signal can reach up to 10 volts peak-to-peak. This waveform generator is designed to deliver accurate and versatile signal generation for various testing and measurement applications.
Technical data
Specifications
11- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 80 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 1200 MS/s
- Memory
- 8 MPts
- Transition time min
- 8.4 ns
- Pulse Width min
- 16.3 ns
- Imax AC
