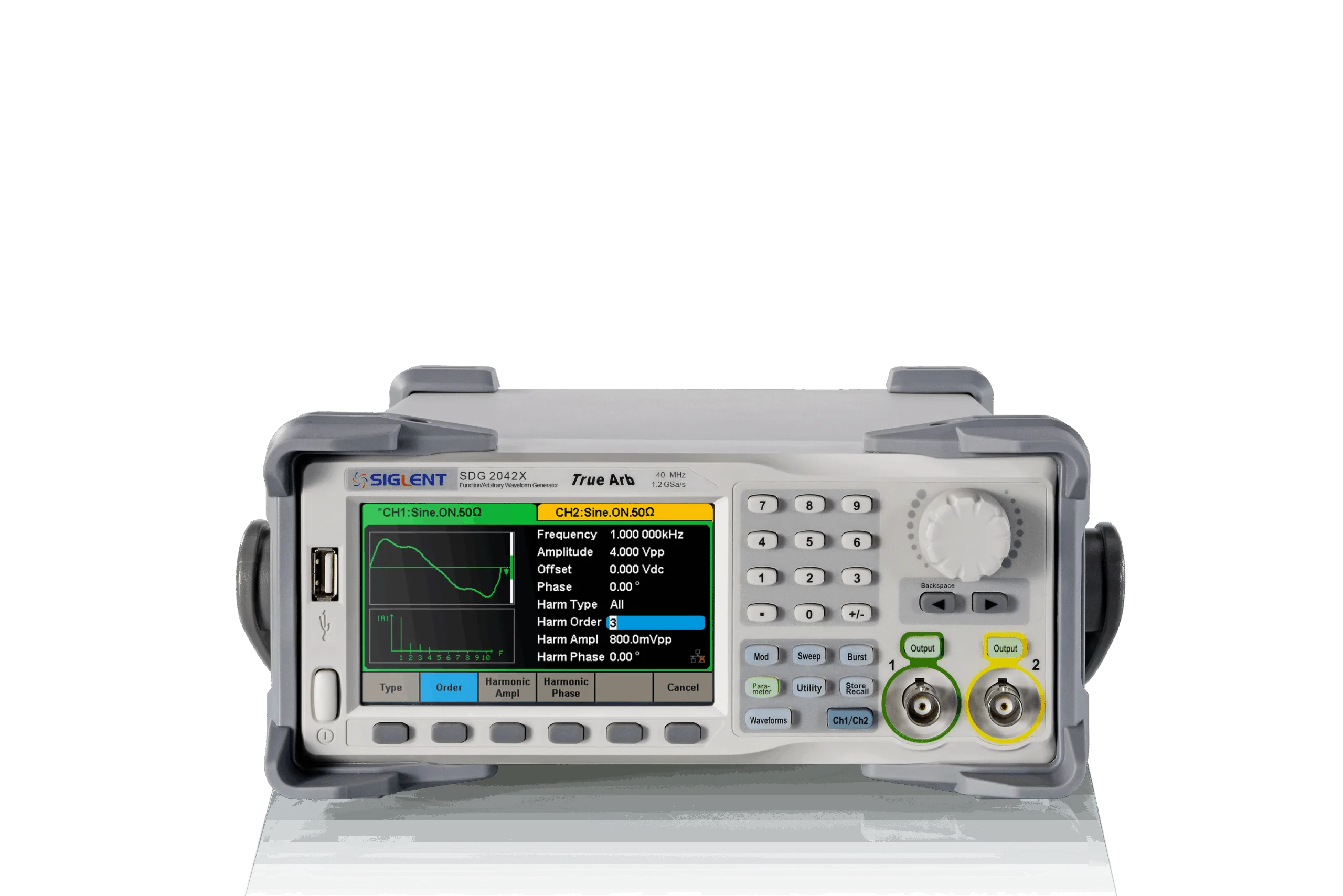

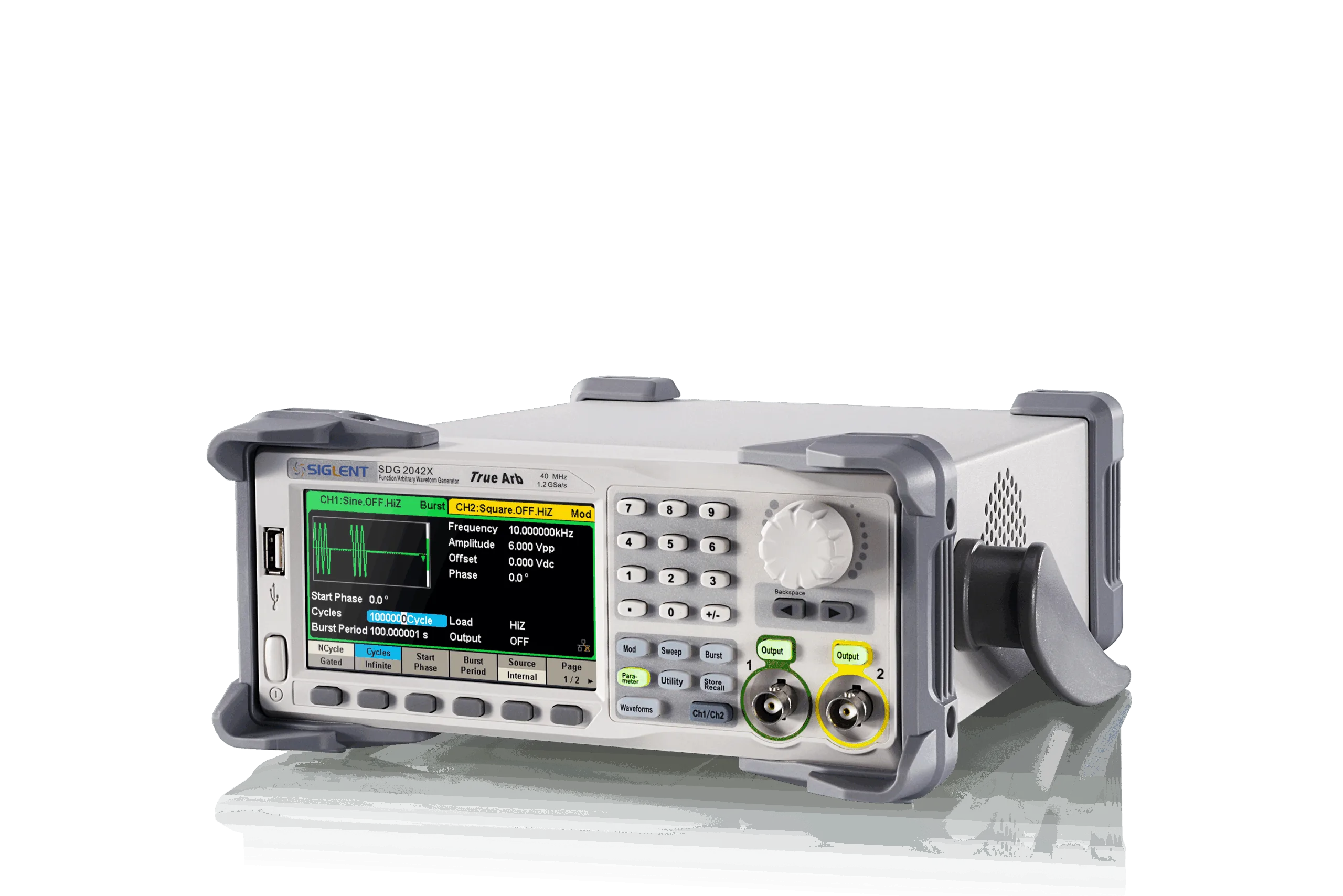

SDG2042X

40MHz; 2 channels; 1.2GSa/s; wave length: 8pts-8Mpts function/arbitrary waveform output; EasyPulse technology

Article no. SDG2042X

Channels: 2
Vertical Resolution: 16 Bits
Frequency: 40 MHz
Amplitude: 10 V

CHF 498.52

incl. 8.1% VAT · CHF 461.17 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

2 channels
16 Bits vertical resolution
40 MHz frequency
10 V amplitude
Sweep

The Siglent SDG2042X is a waveform generator featuring a maximum frequency of 40 MHz and two output channels. It supports a sampling rate of 1.2 GSa/s and offers a memory depth of 8 Mpts, allowing for detailed waveform generation and storage. The device includes EasyPulse technology, which enhances pulse signal generation with a minimum transition time of 8.4 ns and a minimum pulse width of 16.3 ns. It provides an amplitude output of up to 10 V and supports both sweep and burst functions for versatile signal modulation. The waveform output can range from 8 points to 8 million points, accommodating a wide variety of signal complexities. With a memory capacity of 8 MPts, the SDG2042X is designed to handle precise and complex arbitrary waveform outputs. This combination of features makes it suitable for applications requiring detailed and flexible signal generation.

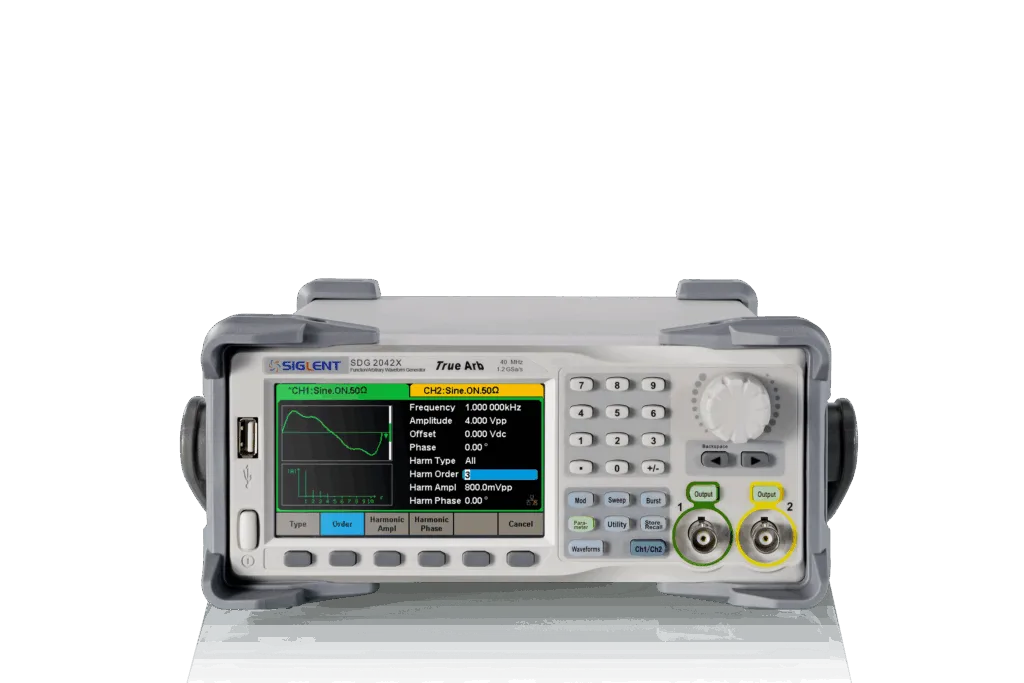

Video SDG2042X

Technical data
