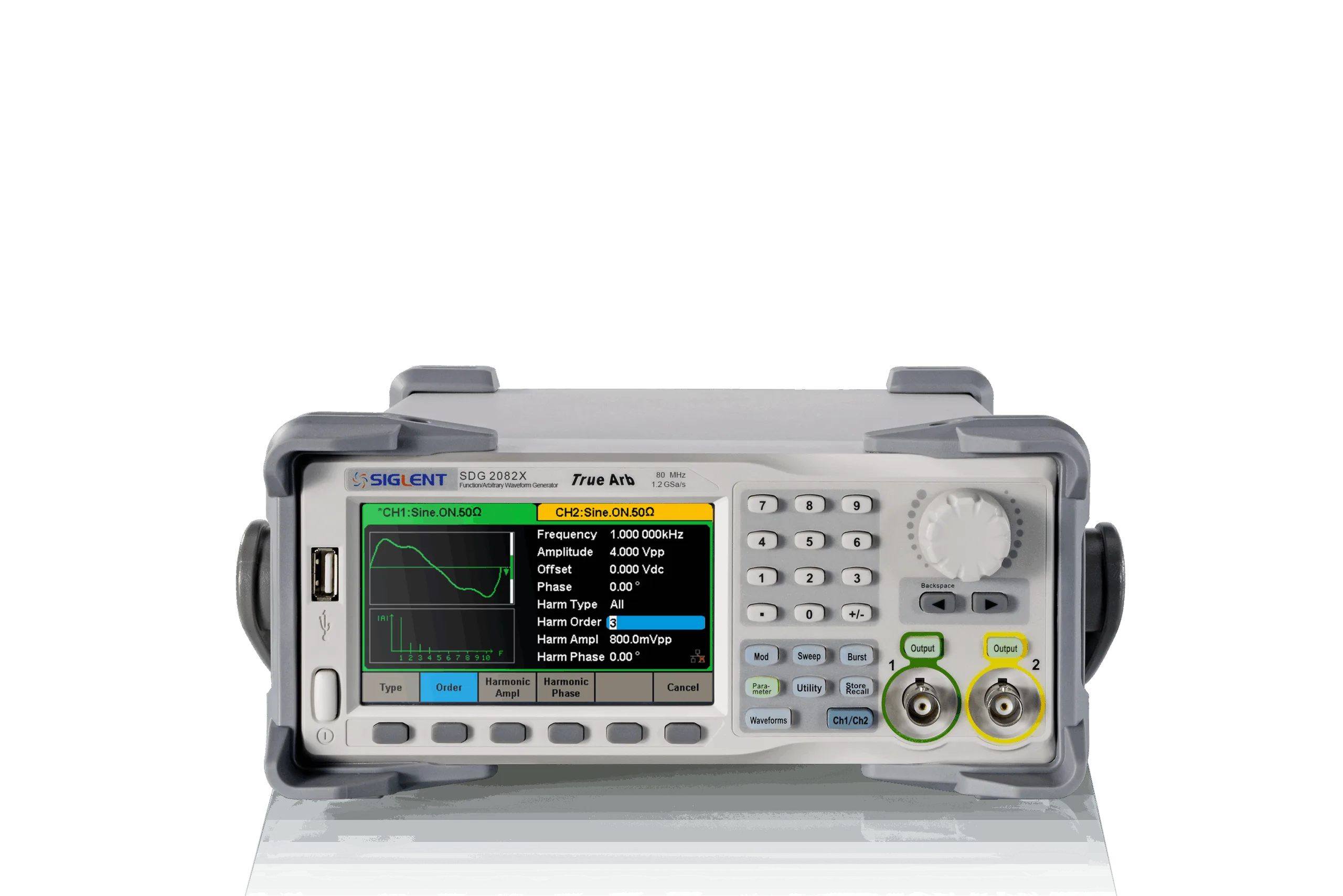

SDG2082X
80MHz; 2 channels; 1.2GSa/s; wave length: 8pts-8Mpts function/arbitrary waveform output; EasyPulse technology
Article no.
SDG2082X
- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 80 MHz
- Amplitude
- 10 V
CHF 618.16
incl. 8.1% VAT · CHF 571.84 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 16 Bits vertical resolution
- 80 MHz frequency
- 10 V amplitude
- Sweep
The Siglent SDG2082X features an 80MHz bandwidth and offers 2 channels for waveform output. It supports a maximum sampling rate of 1.2GSa/s and provides a memory depth ranging from 8 points to 8 million points, allowing for detailed waveform analysis. The device includes EasyPulse technology, enhancing its pulse generation capabilities. It supports both sweep and burst functions, enabling versatile signal generation options. The minimum transition time is 8.4 nanoseconds, and the minimum pulse width is 16.3 nanoseconds. The amplitude can reach up to 10 volts, making it suitable for various testing and measurement applications.

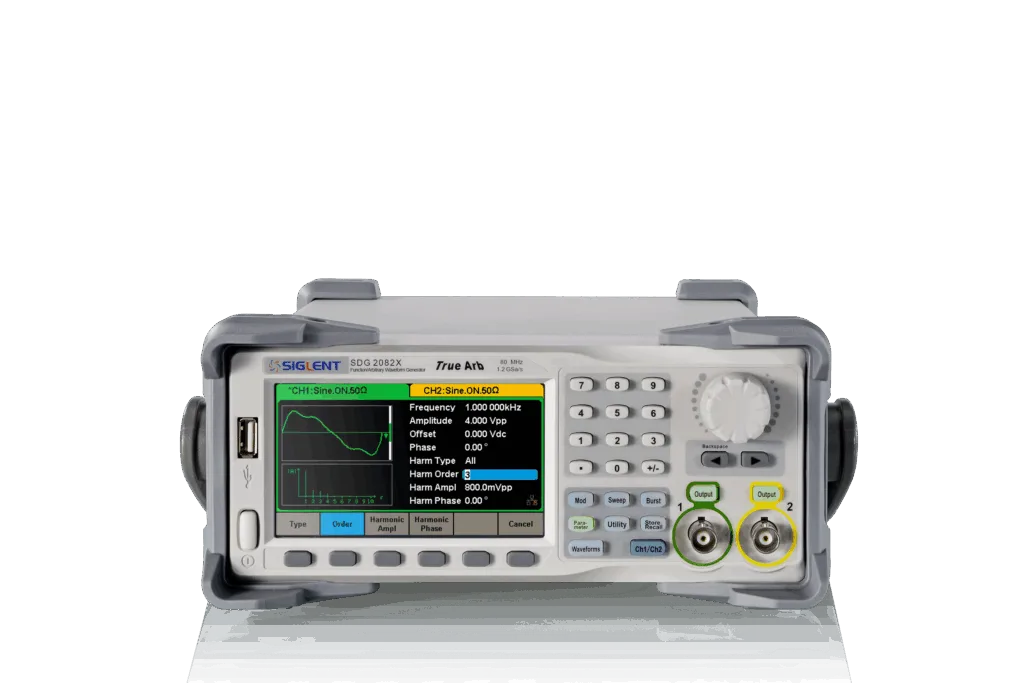

Video
SDG2082X
Technical data
Specifications
10- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 80 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 1200 MS/s
- Memory
- 8 MPts
- Transition time min
- 8.4 ns
- Pulse Width min
- 16.3 ns
