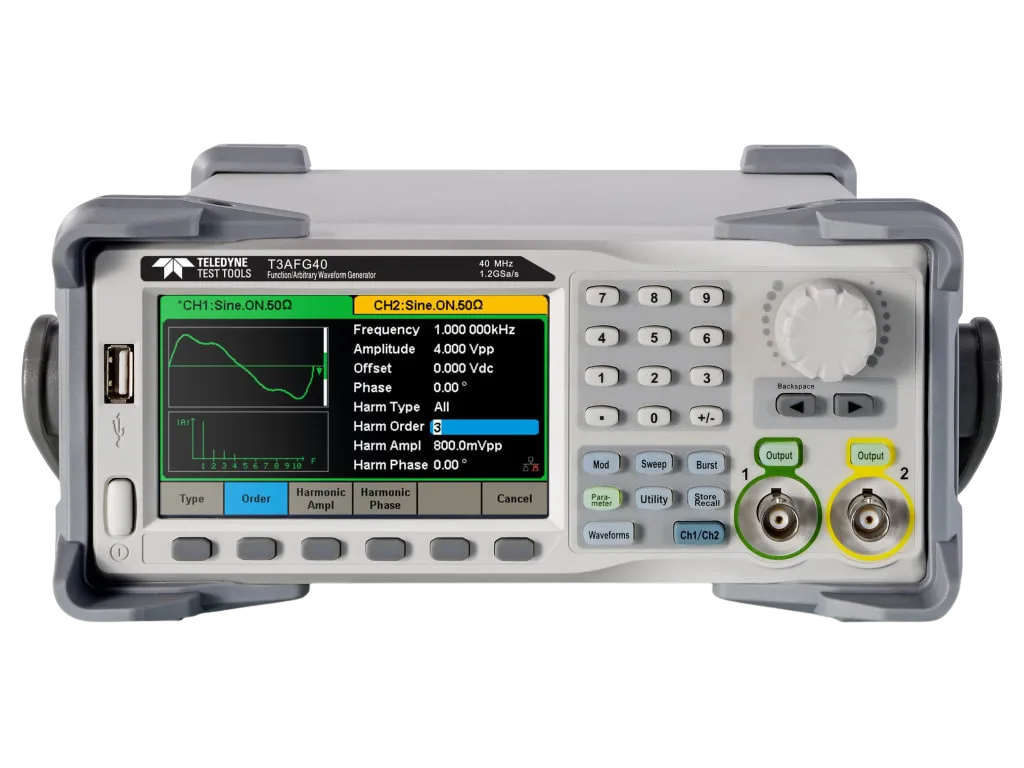

T3AFG40
40 MHz, 1.2 GS/s, 8 Mpts, 2 Channel, 20 Vpp Function/Arbitrary Waveform Generator
Article no.
T3AFG40
- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 40 MHz
- Amplitude
- 10 V
CHF 1'762.03
incl. 8.1% VAT · CHF 1'630.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 16 Bits vertical resolution
- 40 MHz frequency
- 10 V amplitude
- Sweep
The Teledyne Lecroy T3AFG40 is a function and arbitrary waveform generator featuring a maximum frequency of 40 MHz and a sampling rate of 1.2 GS/s. It offers two channels for signal output and includes a memory depth of 8 million points, allowing for extensive waveform storage and generation. The device supports sweep and burst modes, providing versatile signal modulation options. Its amplitude reaches up to 10 V peak-to-peak, with a minimum pulse width of 16.3 nanoseconds and a transition time as low as 8.4 nanoseconds. These specifications enable precise control over waveform characteristics for various testing and measurement applications. The T3AFG40 is designed to deliver reliable performance with detailed waveform generation capabilities across its two output channels.
Technical data
Specifications
11- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 40 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 1200 MS/s
- Memory
- 8 MPts
- Transition time min
- 8.4 ns
- Pulse Width min
- 16.3 ns
- Imax AC
