SDG7102A

Description

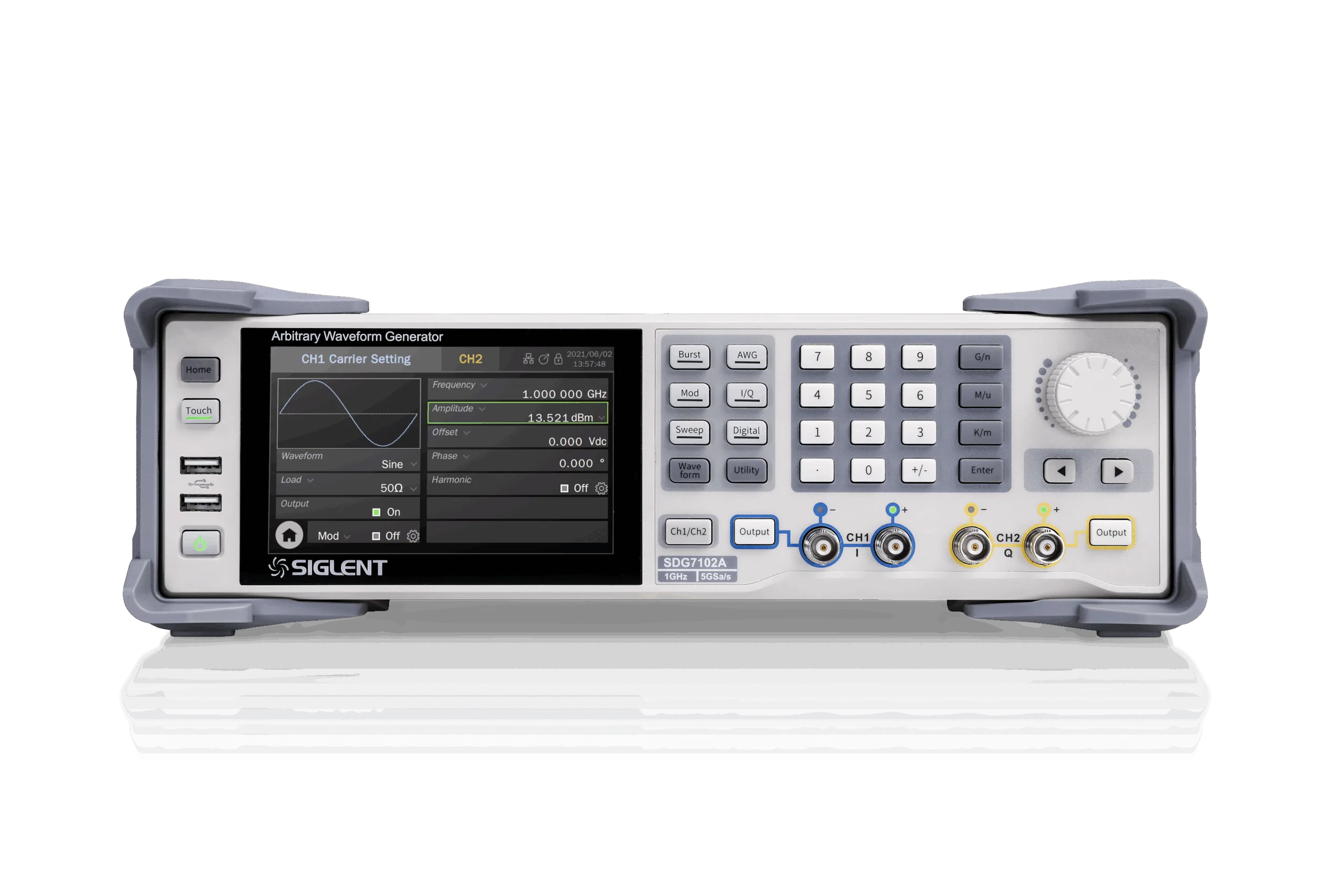

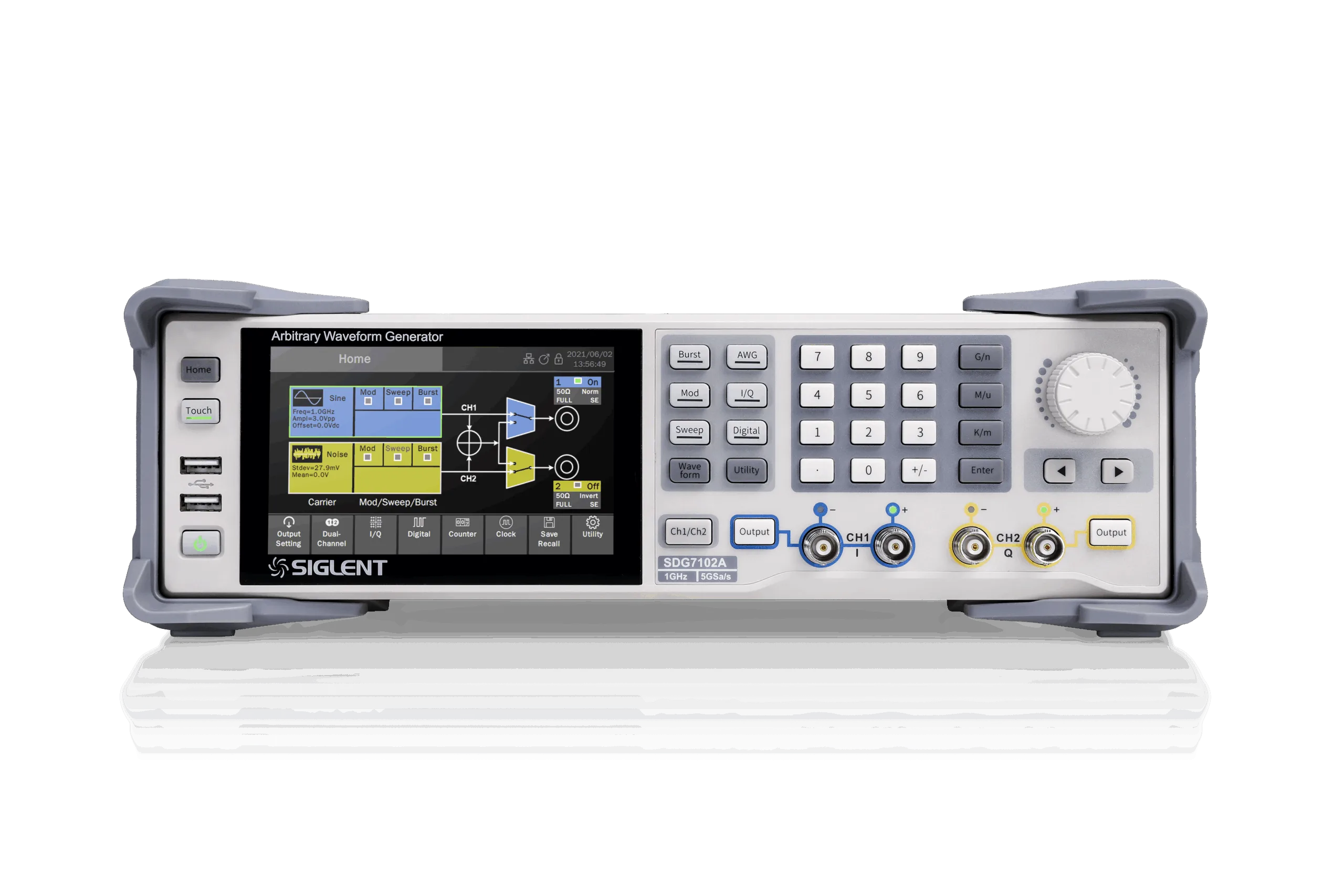

The SDG7102A by Siglent features a maximum frequency of 1 GHz and offers two output channels that can be configured as differential or single-ended. It supports a high sampling rate of 5 GSa/s and provides a 14-bit vertical resolution, ensuring detailed waveform generation. The device includes an arbitrary waveform length ranging from 64 points up to 512 million points, allowing for extensive signal customization. It is equipped with a 5-inch touch screen for user interaction. Additional functionalities include sweep and burst modes, enhancing its versatility in signal generation. The sampling rate is specified at 2500 MS/s, and the memory depth reaches up to 512 Mpts. The minimum transition time is 0.5 nanoseconds, and the minimum pulse width is 1 nanosecond. The maximum amplitude output is 6 volts, supporting a wide range of testing scenarios.

Additional information

1GHz; 2 differential/single ended output channels; 5 GSa/s sampling rate; 14-bit vertical resolution; Arb-Waveform length: 64 pts ~ 512 Mpts; 5 inch touch screen

Specifications
