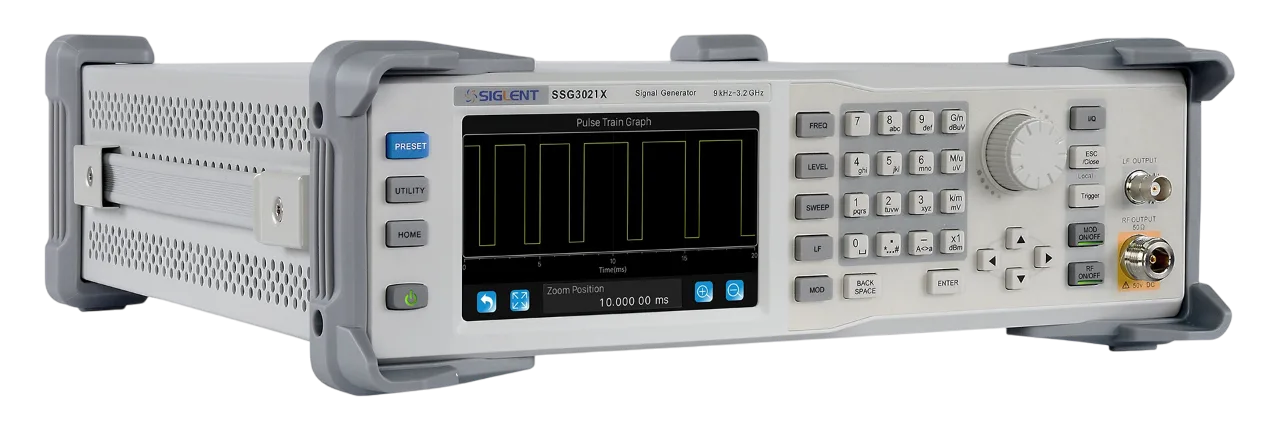

SSG3021X-IQE
9 K ~2.1 GHz; -110 dBm ~ +13 dBm; 0.01Hz frequency resolution，-110 dBc/Hz @1 Ghz, 20 kHz offset; 5 inch TFT touch-screen; With EIQ Function
Article no.
SSG3021X-IQE
- Channels
- 1
- Frequency
- 2100 MHz
- Amplitude
- 20 dBm
- IQ Bandwidth
- 100 MHz
CHF 4'511.87
incl. 8.1% VAT · CHF 4'173.79 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1 channels
- 2100 MHz frequency
- 20 dBm amplitude
- 100 MHz iq bandwidth
The Siglent SSG3021X-IQE operates with a frequency range up to approximately 2.1 GHz and features a frequency resolution of 0.01 Hz. It offers a phase noise performance of -110 dBc/Hz at 1 GHz with a 20 kHz offset, ensuring precise signal generation. The device supports an amplitude range from -110 dBm to +13 dBm, with a maximum amplitude of 20 dBm. It is equipped with a 5-inch TFT touch-screen for user interaction and includes the EIQ function for enhanced signal modulation capabilities. The IQ bandwidth of this model is 100 MHz, allowing for detailed signal analysis and generation. This product is designed by Siglent and is suitable for applications requiring accurate frequency and amplitude control within the specified parameters.

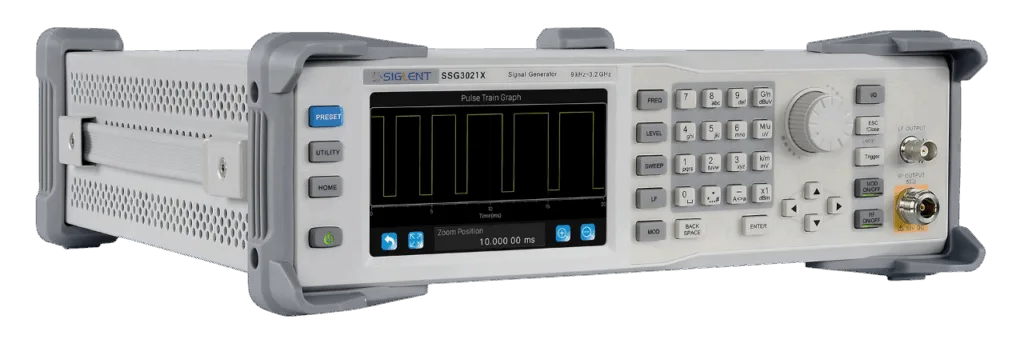

Video
SSG3021X-IQE
Technical data
Specifications
4- Channels
- 1
- Frequency
- 2100 MHz
- Amplitude
- 20 dBm
- IQ Bandwidth
- 100 MHz
