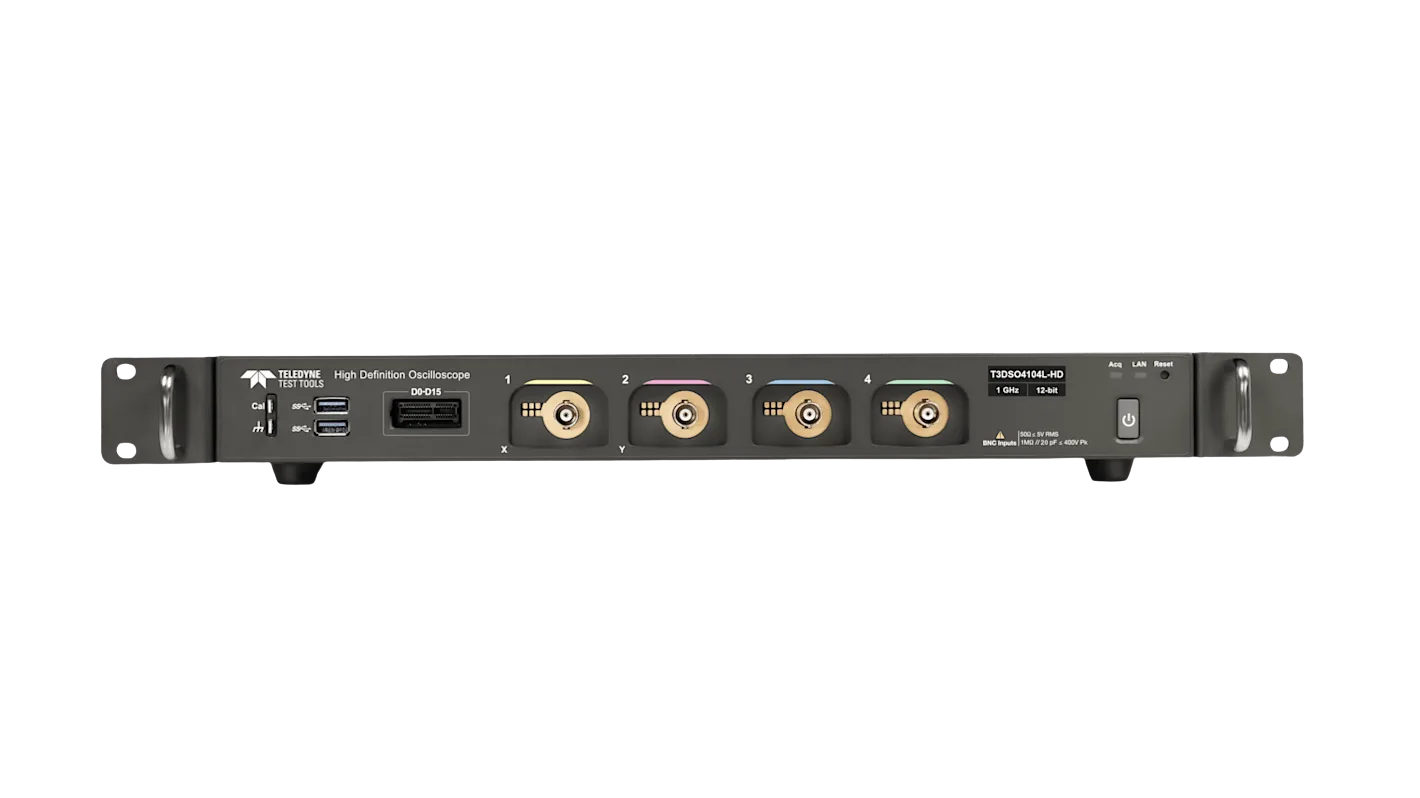

T3DSO4104L-HD

1GHz, 10 GS/s ESR, 4 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope

Article no. T3DSO4104L-HD

Channels: 4
Bandwidth: 1000 MHz
Sampling Rate/Channels: 10000 MS/s
Memory Depht: 125 Mpts

CHF 20'917.35

incl. 8.1% VAT · CHF 19'350.00 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

4 channels
1000 MHz bandwidth
10000 MS/s sampling rate
125 Mpts memory depht
12 Bits vertical resolution

The Teledyne Lecroy T3DSO4104L-HD oscilloscope features a bandwidth of 1000 MHz and supports four channels, allowing for comprehensive signal analysis. It offers a high sampling rate of 10 GS/s per channel, ensuring detailed waveform capture and accurate signal representation. Each channel is equipped with a memory depth of 500 Mpts, with a single channel memory depth of 125 Mpts, providing ample storage for long-duration signal acquisition. The device boasts a vertical resolution of 12 bits, which enhances the precision of measurements and signal clarity. This low-profile oscilloscope is designed without a touch screen interface. It is capable of handling frequencies up to 1 GHz, making it suitable for a variety of high-speed electronic testing applications. The combination of high bandwidth, multiple channels, and deep memory depth makes this instrument a versatile tool for detailed electronic signal analysis.

Technical data
