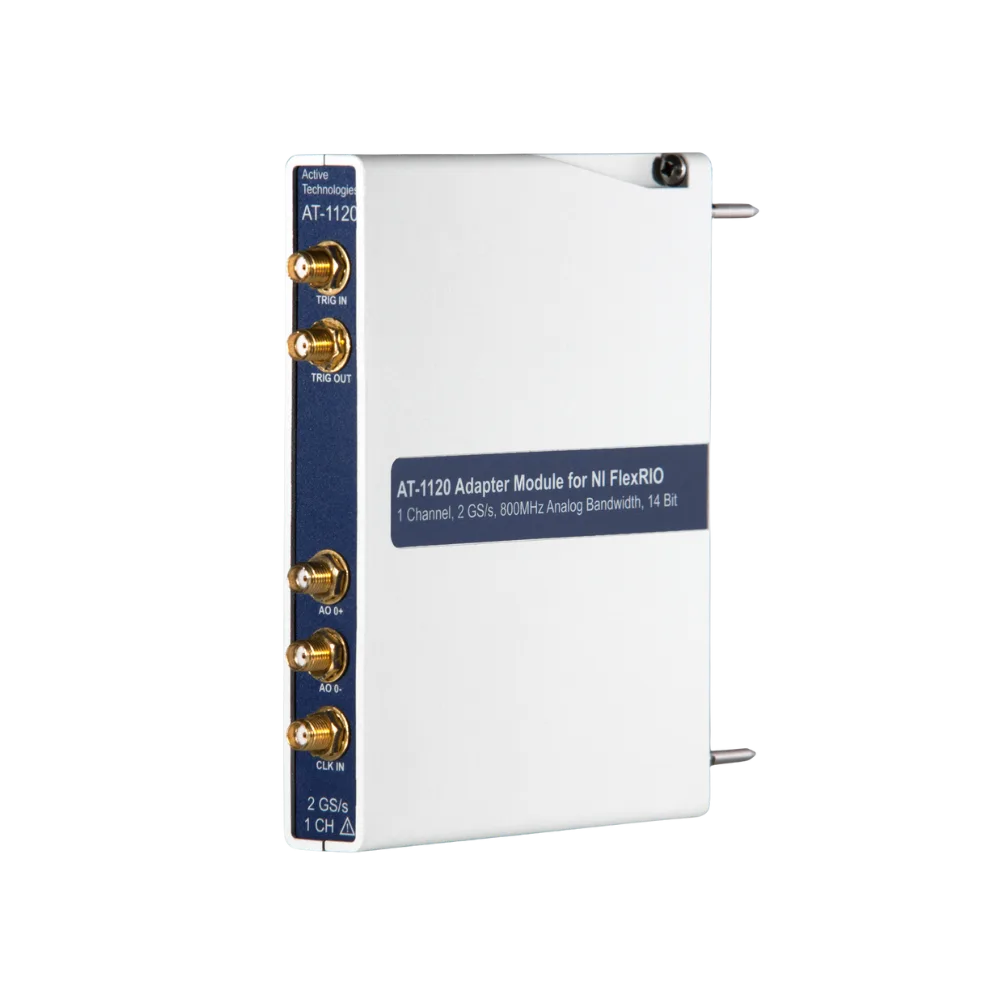

AT-1120
1Ch - 2Gs/s - 14bit signal generator Flex-RIO adapter Module
Article no.
AT-1120
- Channels
- 1
- Vertical Resolution
- 14 Bits
- Frequency
- 800 MHz
- Amplitude
- 2 V
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 1 channels
- 14 Bits vertical resolution
- 800 MHz frequency
- 2 V amplitude
- 2000 MS/s sampling rate
The AT-1120 from Active Technologies is a 1-channel signal generator Flex-RIO adapter module designed to operate at a frequency of 800 MHz. It features a sampling rate of 2000 MS/s and a vertical resolution of 14 bits. The module delivers an amplitude of 2 V and supports a minimum transition time of 0.34 ns. This device does not include sweep or burst capabilities. It is engineered to provide precise signal generation with a high sampling rate and fine vertical resolution, suitable for applications requiring detailed waveform synthesis. The combination of its frequency and amplitude specifications makes it a specialized tool for signal generation tasks within its operational parameters.
Technical data
Specifications
8- Channels
- 1
- Vertical Resolution
- 14 Bits
- Frequency
- 800 MHz
- Amplitude
- 2 V
- Sweep
- No
- Burst
- No
- Sampling Rate
- 2000 MS/s
- Transition time min
- 0.34 ns
