T3AFG60
60 MHz, 150 MS/s,16 kpts, 2 Channel, 20 Vpp Function/Arbitrary Waveform Generator
Article no.
T3AFG60
- Channels
- 2
- Vertical Resolution
- 14 Bits
- Frequency
- 60 MHz
- Amplitude
- 10 V
CHF 1'572.86
incl. 8.1% VAT · CHF 1'455.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 14 Bits vertical resolution
- 60 MHz frequency
- 10 V amplitude
- Sweep

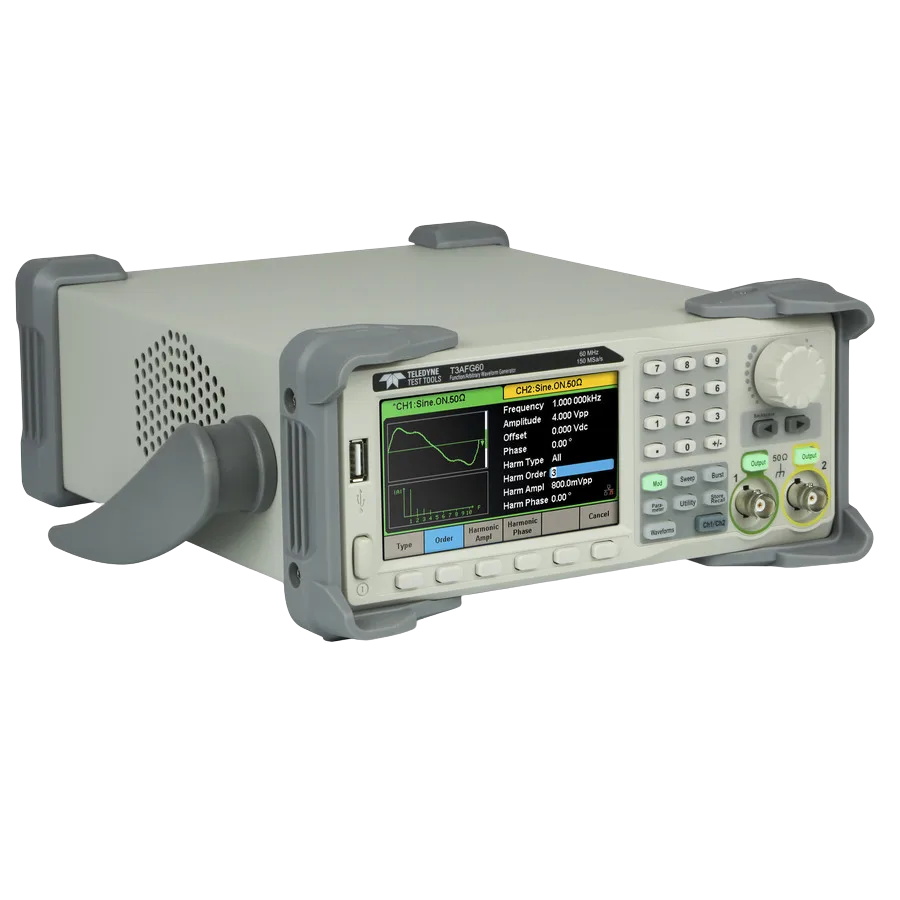

The Teledyne Lecroy T3AFG60 is a function/arbitrary waveform generator featuring a maximum frequency of 60 MHz and a sampling rate of 150 MS/s. It offers two channels and a memory depth of 16 kpts, allowing for detailed waveform generation and manipulation. The device supports sweep and burst modes, providing flexibility in signal output. Its amplitude reaches up to 10 V, with a peak-to-peak voltage of 20 Vpp. The minimum transition time is 16.8 ns, and the minimum pulse width is 32.6 ns, enabling precise timing control for various applications. This waveform generator is designed to deliver accurate and stable signals for testing and development purposes.
Technical data
Specifications
11- Channels
- 2
- Vertical Resolution
- 14 Bits
- Frequency
- 60 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 150 MS/s
- Memory
- 0.016 MPts
- Transition time min
- 16.8 ns
- Pulse Width min
- 32.6 ns
- Imax AC
