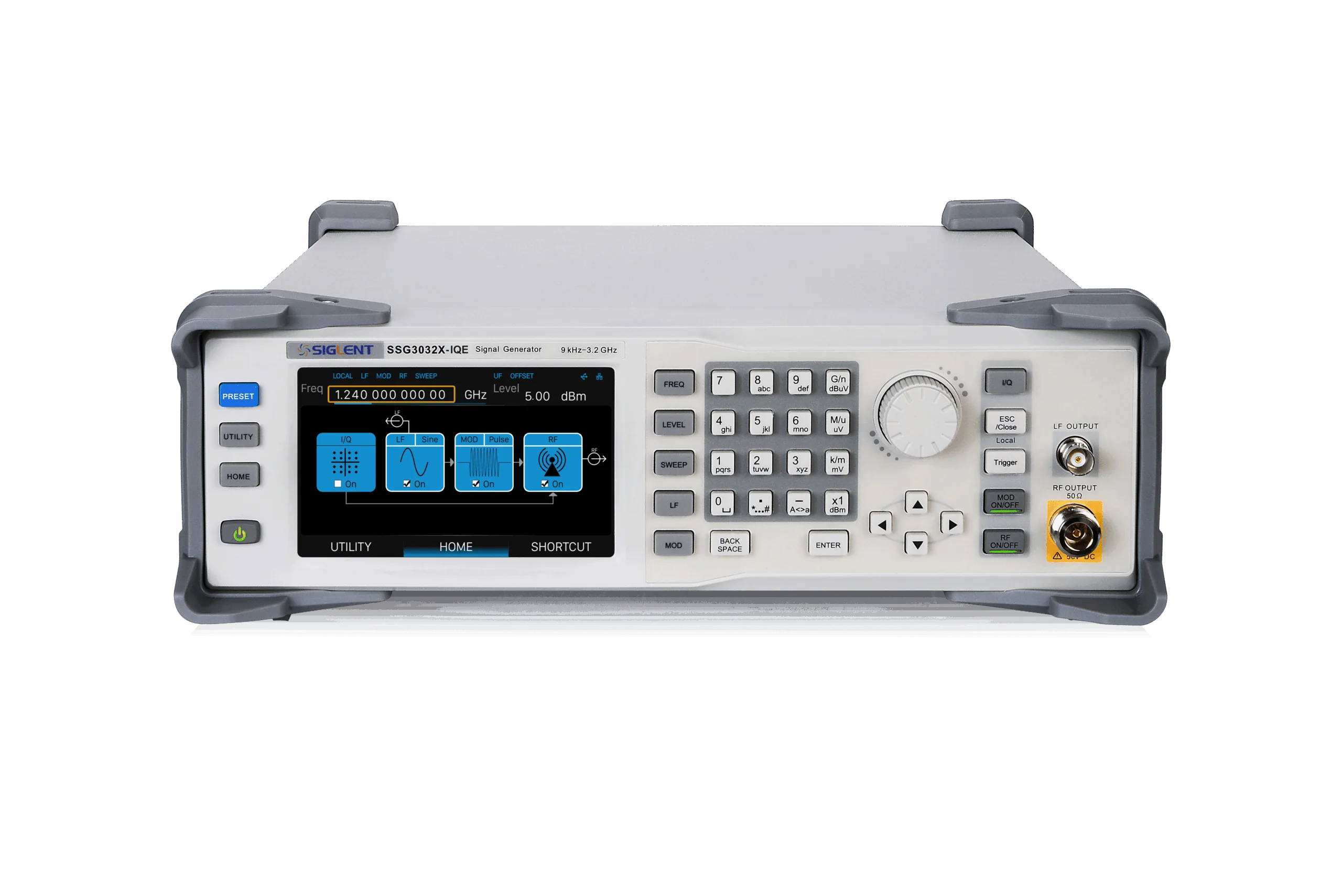

SSG3032X-IQE
9 K ~3.2 GHz; -110 dBm ~ +13 dBm; 0.01Hz frequency resolution，-110 dBc/Hz @1 Ghz, 20 kHz offset; 5 inch TFT touch-screen; With EIQ Function
Article no.
SSG3032X-IQE
- Channels
- 1
- Frequency
- 3200 MHz
- Amplitude
- 20 dBm
- IQ Bandwidth
- 100 MHz
CHF 5'981.18
incl. 8.1% VAT · CHF 5'533.01 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1 channels
- 3200 MHz frequency
- 20 dBm amplitude
- 100 MHz iq bandwidth
The Siglent SSG3032X-IQE operates with a frequency range up to approximately 3.2 GHz and features a frequency resolution of 0.01 Hz. It offers a phase noise performance of -110 dBc/Hz at 1 GHz with a 20 kHz offset, ensuring precise signal generation. The device supports an amplitude range from -110 dBm to +13 dBm, with a maximum amplitude of 20 dBm. It is equipped with a 5-inch TFT touch-screen for user interaction and includes the EIQ function for enhanced signal analysis. The IQ bandwidth of this model is 100 MHz, allowing for detailed modulation and signal characterization. This product is designed by Siglent, a brand known for its electronic test equipment.
Video
SSG3032X-IQE
Technical data
Specifications
4- Channels
- 1
- Frequency
- 3200 MHz
- Amplitude
- 20 dBm
- IQ Bandwidth
- 100 MHz
