SDG830
30MHz; 1 channel; 125MSa/s; AWG/AFG
Article no.
SDG830
- Channels
- 1
- Vertical Resolution
- 14 Bits
- Frequency
- 30 MHz
- Amplitude
- 10 V
CHF 208.85
incl. 8.1% VAT · CHF 193.20 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1 channels
- 14 Bits vertical resolution
- 30 MHz frequency
- 10 V amplitude
- Sweep

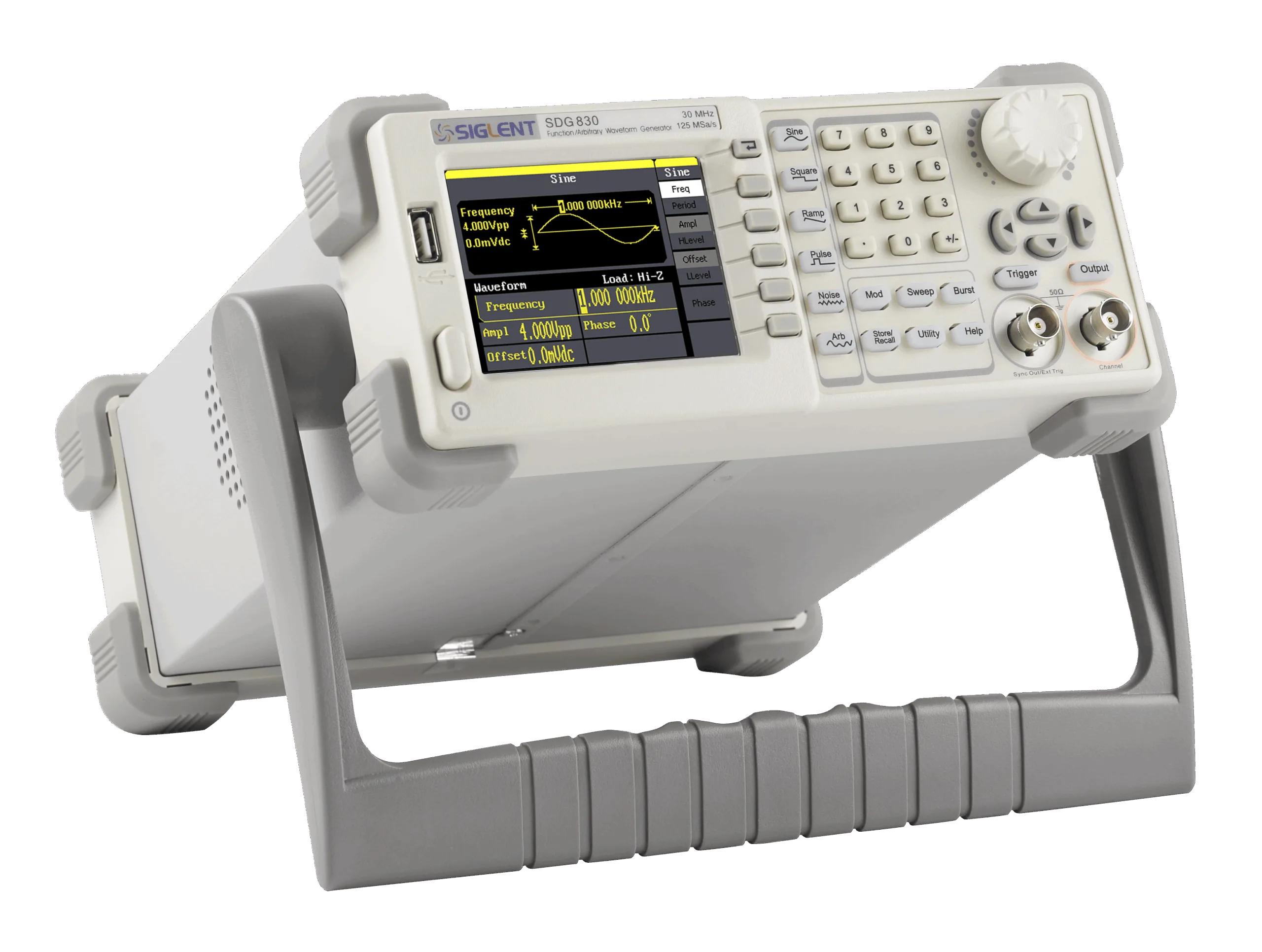

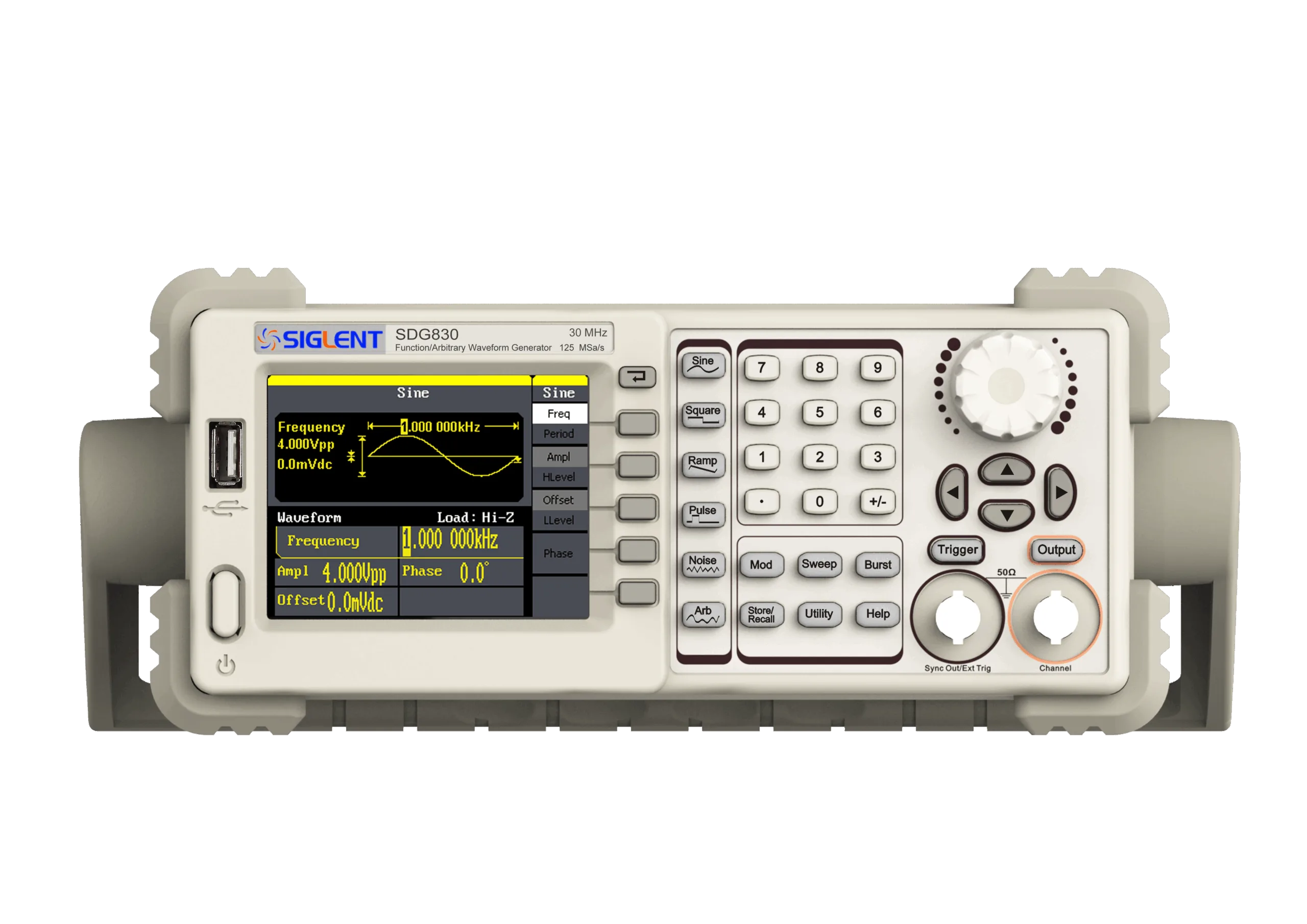

The Siglent SDG830 is a 30MHz arbitrary waveform generator featuring a single output channel. It operates with a maximum frequency of 30MHz and supports an amplitude of up to 10 volts. The device offers a sampling rate of 125MSa/s and includes a memory depth of 0.016Mpts. It supports both sweep and burst modes, allowing for versatile signal generation. The minimum pulse width achievable is 16 nanoseconds, with a transition time as low as 20 nanoseconds. This model is designed to provide precise waveform output with a vertical resolution that is not specified. The SDG830 is suitable for applications requiring detailed waveform control and timing accuracy.
Technical data
Specifications
10- Channels
- 1
- Vertical Resolution
- 14 Bits
- Frequency
- 30 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 125 MS/s
- Memory
- 0.016 MPts
- Transition time min
- 20 ns
- Pulse Width min
- 16 ns
