SSG6082A-V
Output frequency range: CW mode 9 kHz ~ 8 GHz, IQ mode 10 MHz ~ 8 GHz, Phase noise: -132 dBc/Hz offset 10 kHz @1 GHz(typ.), internal RF bandwidth (I+Q) 500 MHz
Article no.
SSG6082A-V
- Channels
- 1
- Frequency
- 8000 MHz
- Amplitude
- 30 dBm
- IQ Bandwidth
- 1000 MHz
CHF 29'050.57
incl. 8.1% VAT · CHF 26'873.79 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1 channels
- 8000 MHz frequency
- 30 dBm amplitude
- 1000 MHz iq bandwidth
The Siglent SSG6082A-V offers an output frequency range in CW mode from 9 kHz to 8 GHz and in IQ mode from 10 MHz to 8 GHz. It features a typical phase noise of -132 dBc/Hz at a 10 kHz offset when operating at 1 GHz. The internal RF bandwidth for I+Q signals is 500 MHz, supporting a wide range of signal generation applications. The device operates with a maximum frequency of 8000 MHz and can deliver an amplitude of up to 30 dBm. Additionally, the IQ bandwidth is specified at 1000 MHz, allowing for high-fidelity signal output. These specifications make the SSG6082A-V suitable for various testing and measurement scenarios requiring precise frequency and phase noise characteristics.

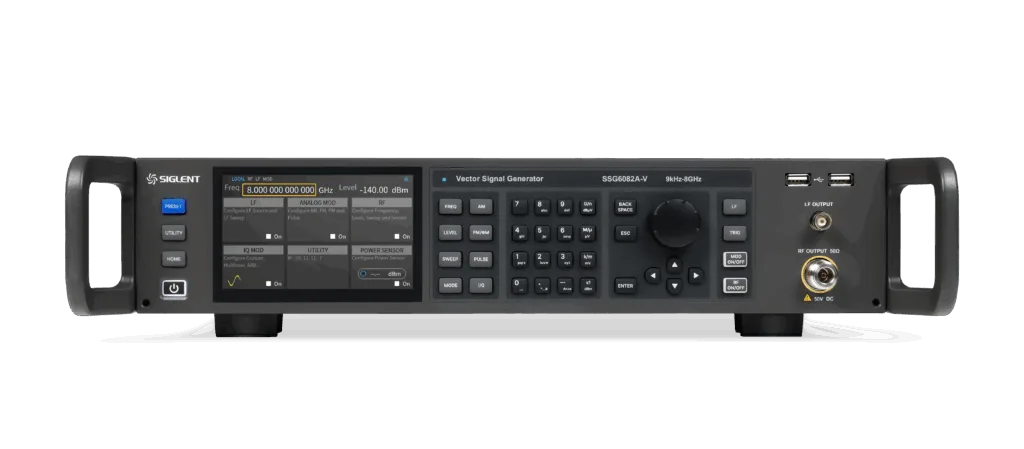

Video
SSG6082A-V
Technical data
Specifications
4- Channels
- 1
- Frequency
- 8000 MHz
- Amplitude
- 30 dBm
- IQ Bandwidth
- 1000 MHz
Presentation
Product presentation
PDFDocuments
