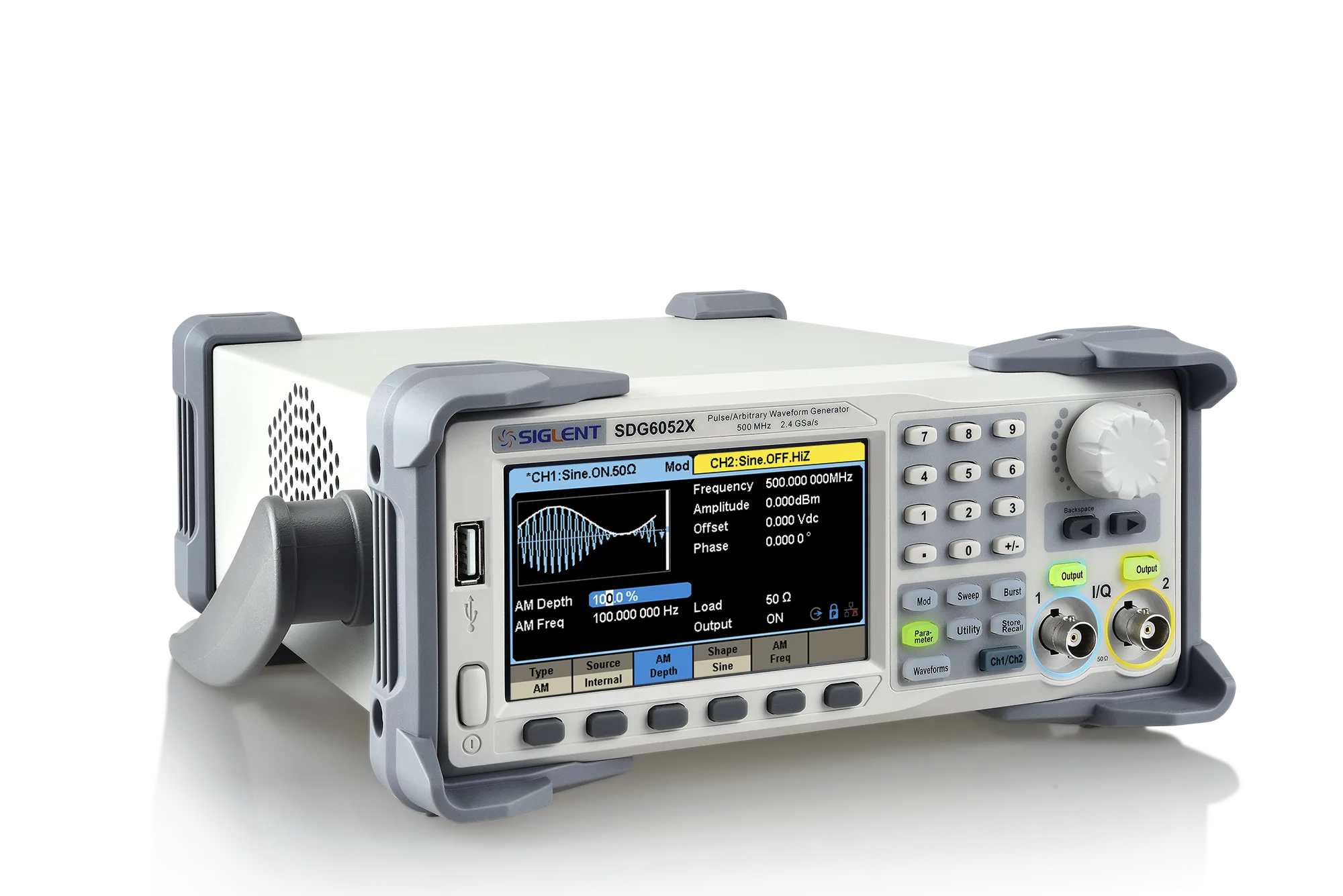

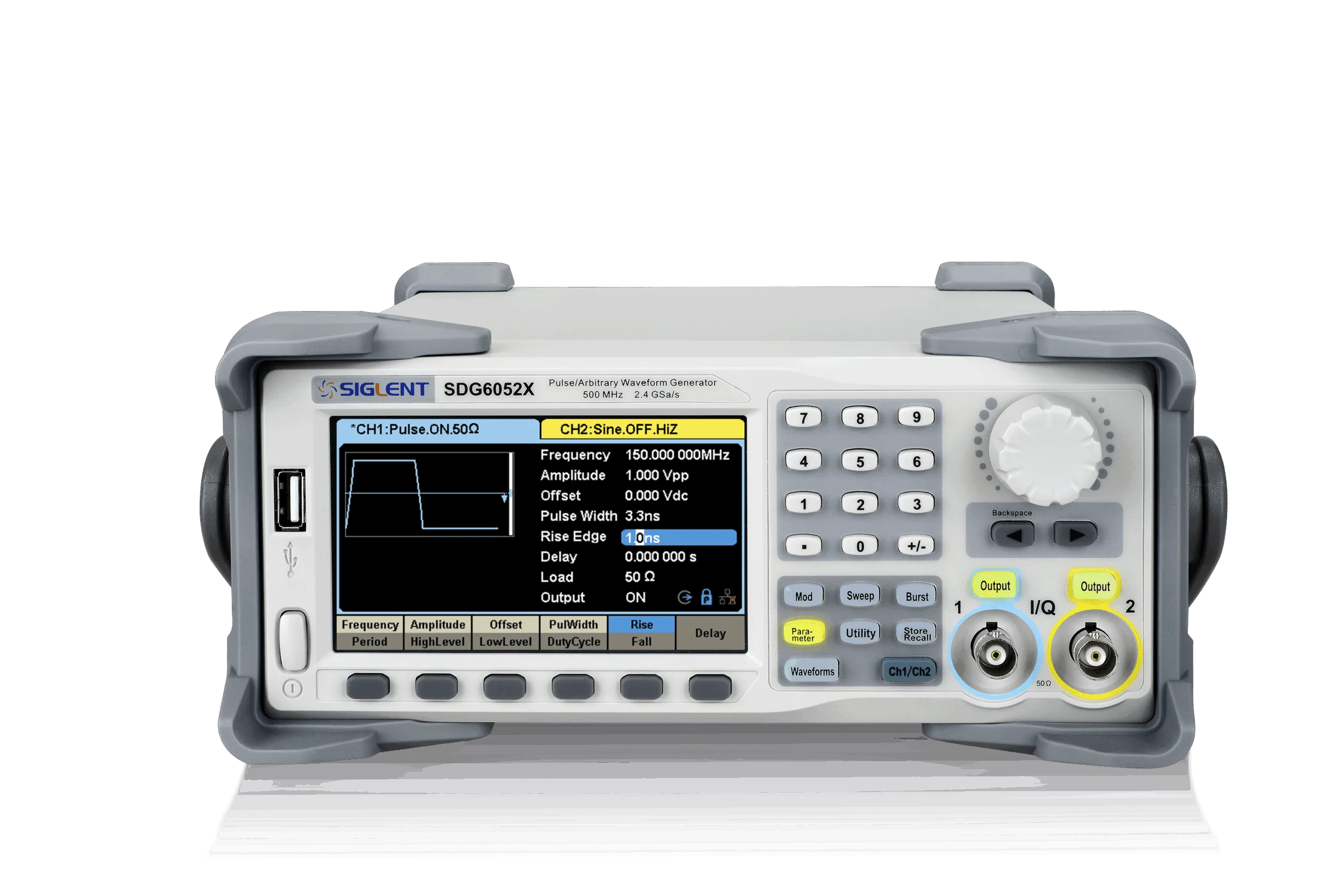

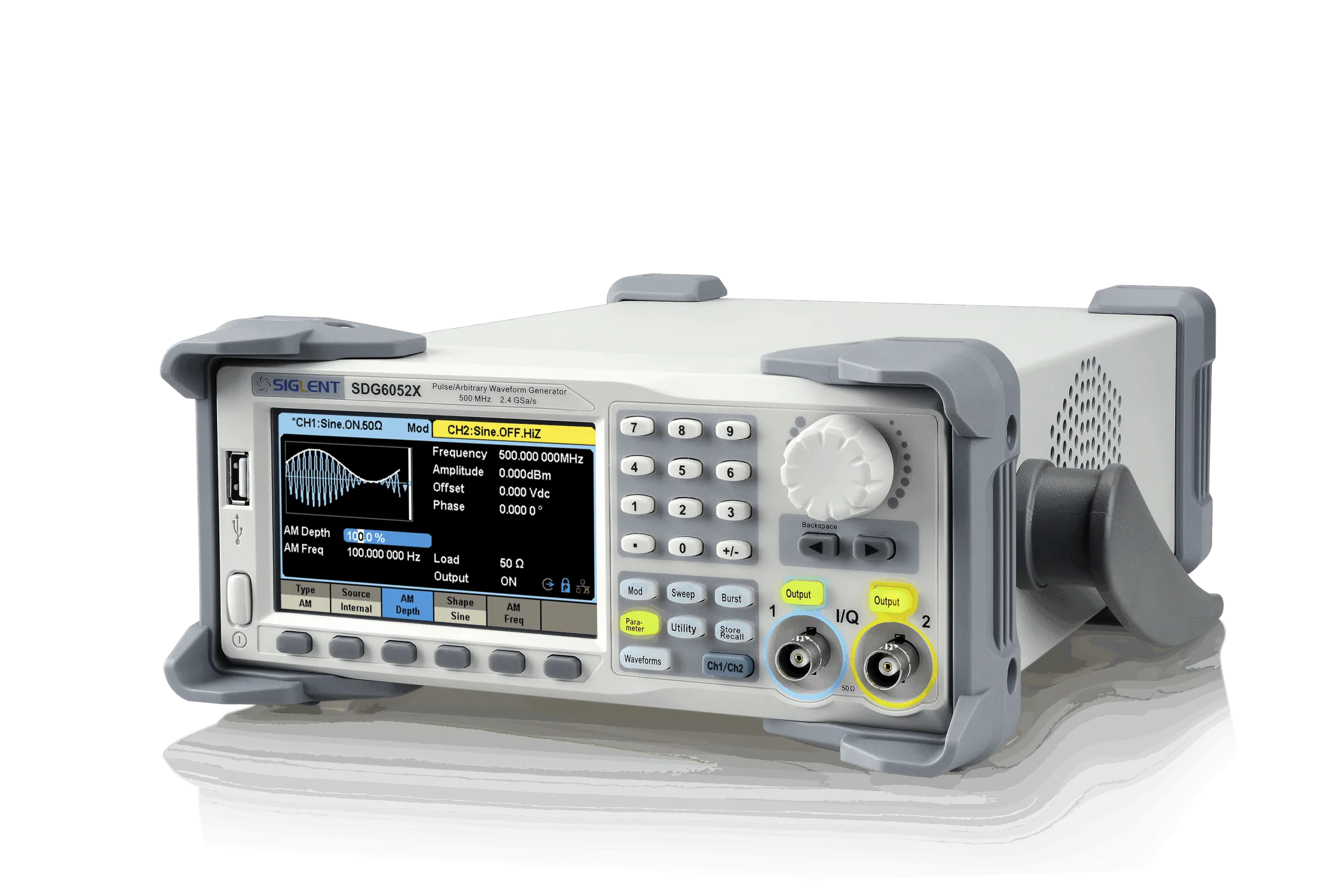

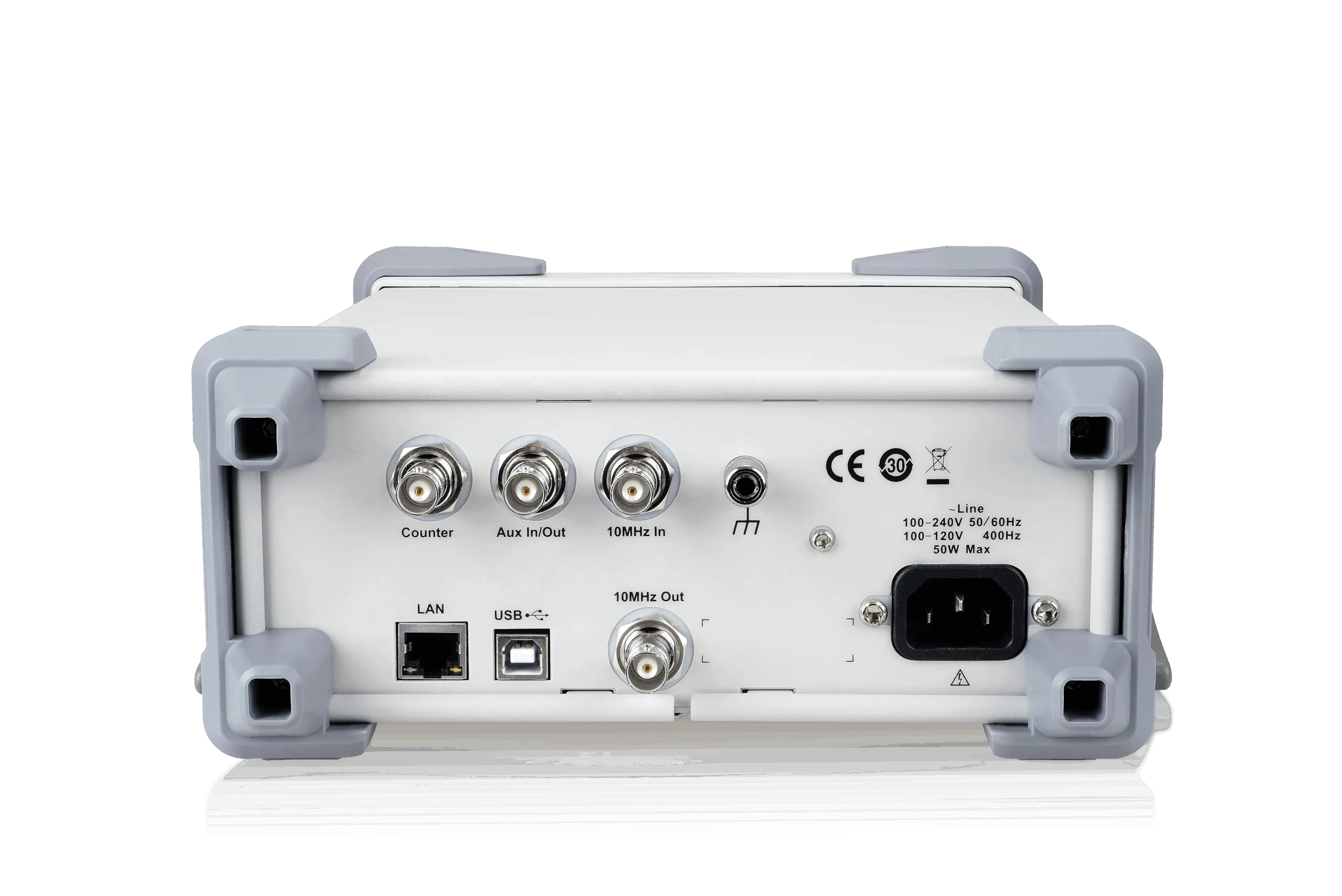

SDG6052X
500MHz; 2 channels; 2.4GSa/s;16bit; Arb-Waveform length: 2~20Mpts; function/arbitrary waveform output; EasyPulse and TrueArb technology
Article no.
SDG6052X
- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 500 MHz
- Amplitude
- 10 V
CHF 4'847.71
incl. 8.1% VAT · CHF 4'484.47 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 16 Bits vertical resolution
- 500 MHz frequency
- 10 V amplitude
- Sweep
The SDG6052X from Siglent is a 500MHz function/arbitrary waveform generator featuring two channels and a sampling rate of 2.4GSa/s. It offers a vertical resolution of 16 bits and supports waveform lengths ranging from 2 to 20 million points. The device incorporates EasyPulse and TrueArb technology to enhance waveform generation capabilities. It has a maximum amplitude of 10 volts and supports sweep and burst functions. It offers a memory depth of 20 Mpts. The minimum transition time is 1 nanosecond, and the minimum pulse width is 3.3 nanoseconds. This model is designed to provide precise and flexible waveform output for various testing and measurement applications.

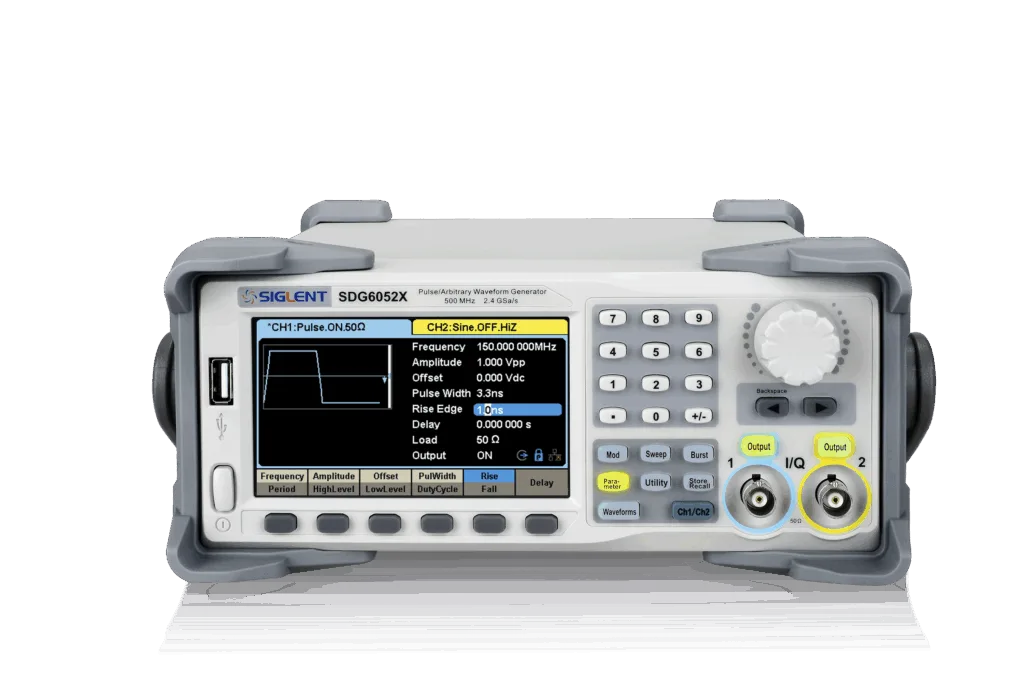

Video
SDG6052X
Technical data
Specifications
10- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 500 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 2400 MS/s
- Memory
- 20 MPts
- Transition time min
- 1 ns
- Pulse Width min
- 3.3 ns
Presentation
Product presentation
PDFDocuments
