HDO4104A-MS

1 GHz, 4+16 Ch, 12-Bit, 10 GS/s, 12.5 Mpts/Ch HD Mixed-Signal Oscilloscope with 12.1" WXGA Color Dis

Article no. HDO4104A-MS

Channels: 4
Bandwidth: 1000 MHz
Sampling Rate/Channels: 10000 MS/s
Memory Depht: 25 Mpts

CHF 37'051.28

incl. 8.1% VAT · CHF 34'275.00 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

4 channels
1000 MHz bandwidth
10000 MS/s sampling rate
25 Mpts memory depht
12 Bits vertical resolution

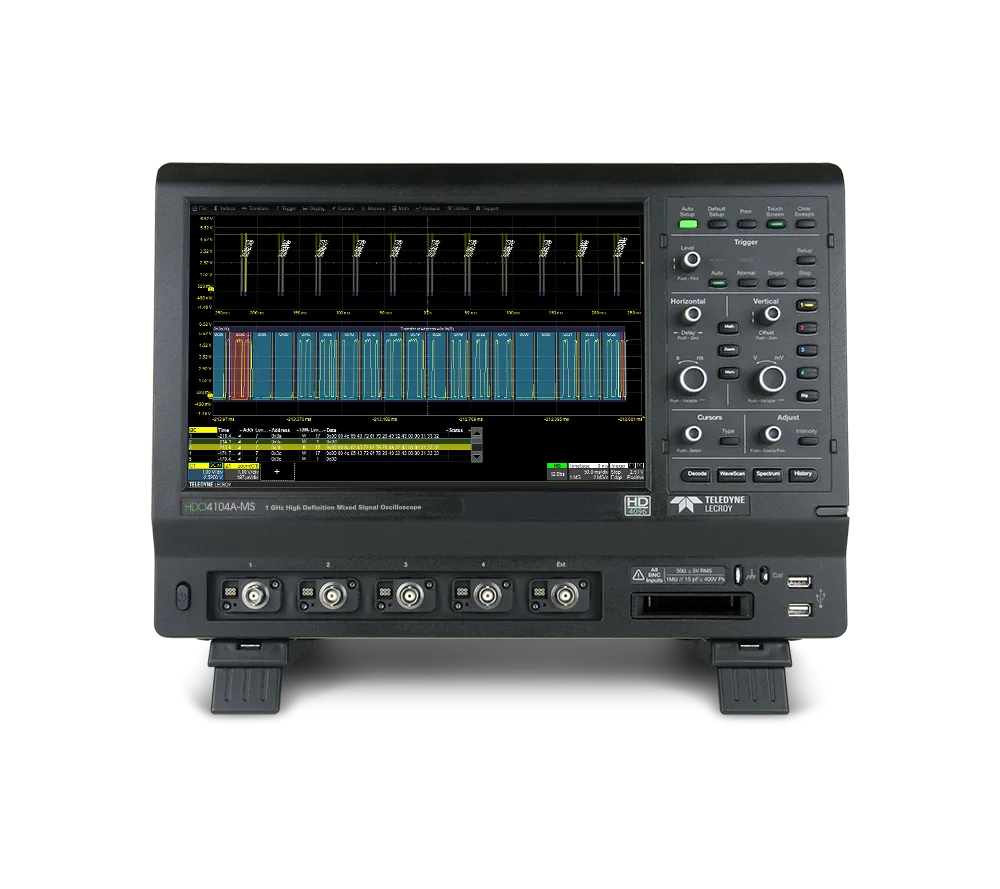

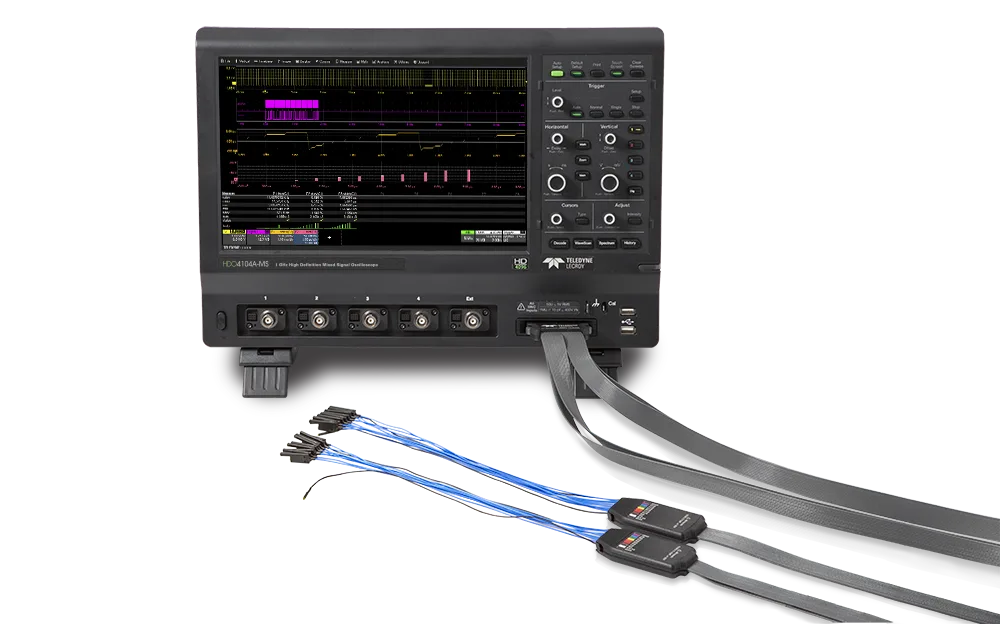

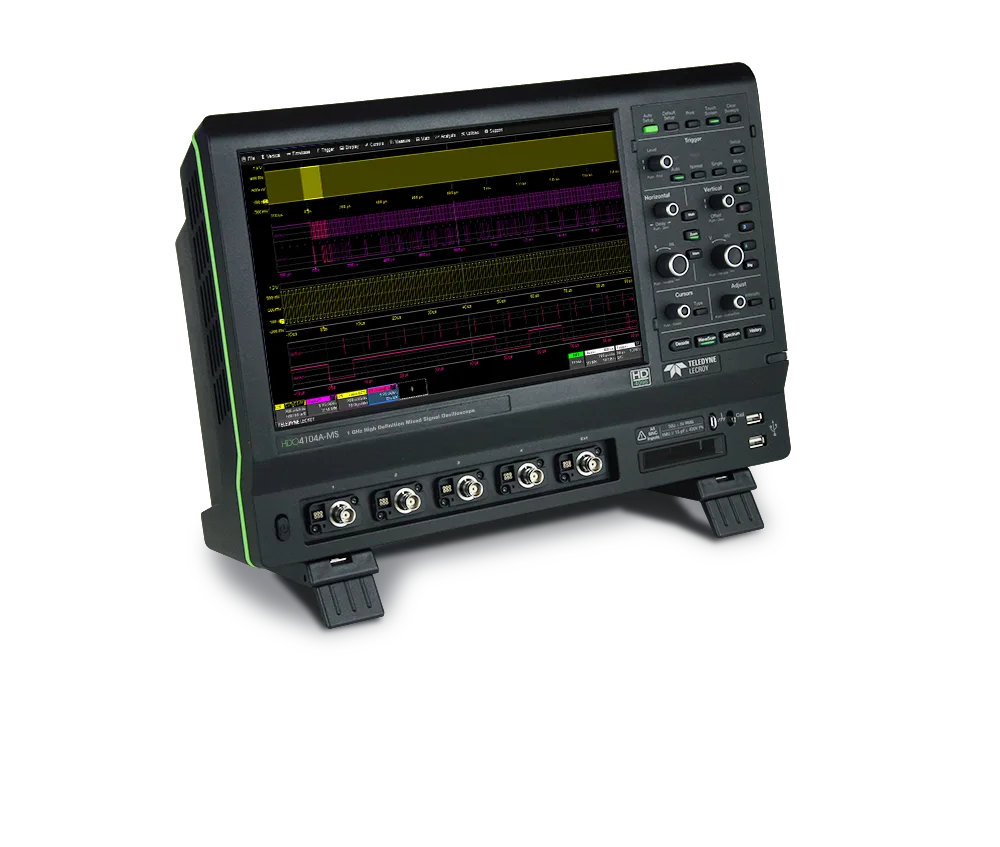

The Teledyne Lecroy HDO4104A-MS is a high-performance mixed-signal oscilloscope featuring a 1 GHz bandwidth and 4 analog channels complemented by 16 digital channels. It offers a vertical resolution of 12 bits and a maximum sampling rate of 10 GS/s per channel, enabling detailed signal analysis. Each channel is equipped with a memory depth of 12.5 million points, allowing for extensive data capture and review. The device includes a 12.1-inch WXGA color display that supports touch screen functionality, enhancing user interaction and ease of use. With a total memory depth of 25 million points, the oscilloscope is capable of handling complex waveforms and long acquisition times. The combination of high bandwidth, high sampling rate, and deep memory makes this instrument suitable for a wide range of electronic testing and debugging applications. The inclusion of digital channels further extends its capability to mixed-signal environments, providing comprehensive signal visualization and analysis options.

Technical data
