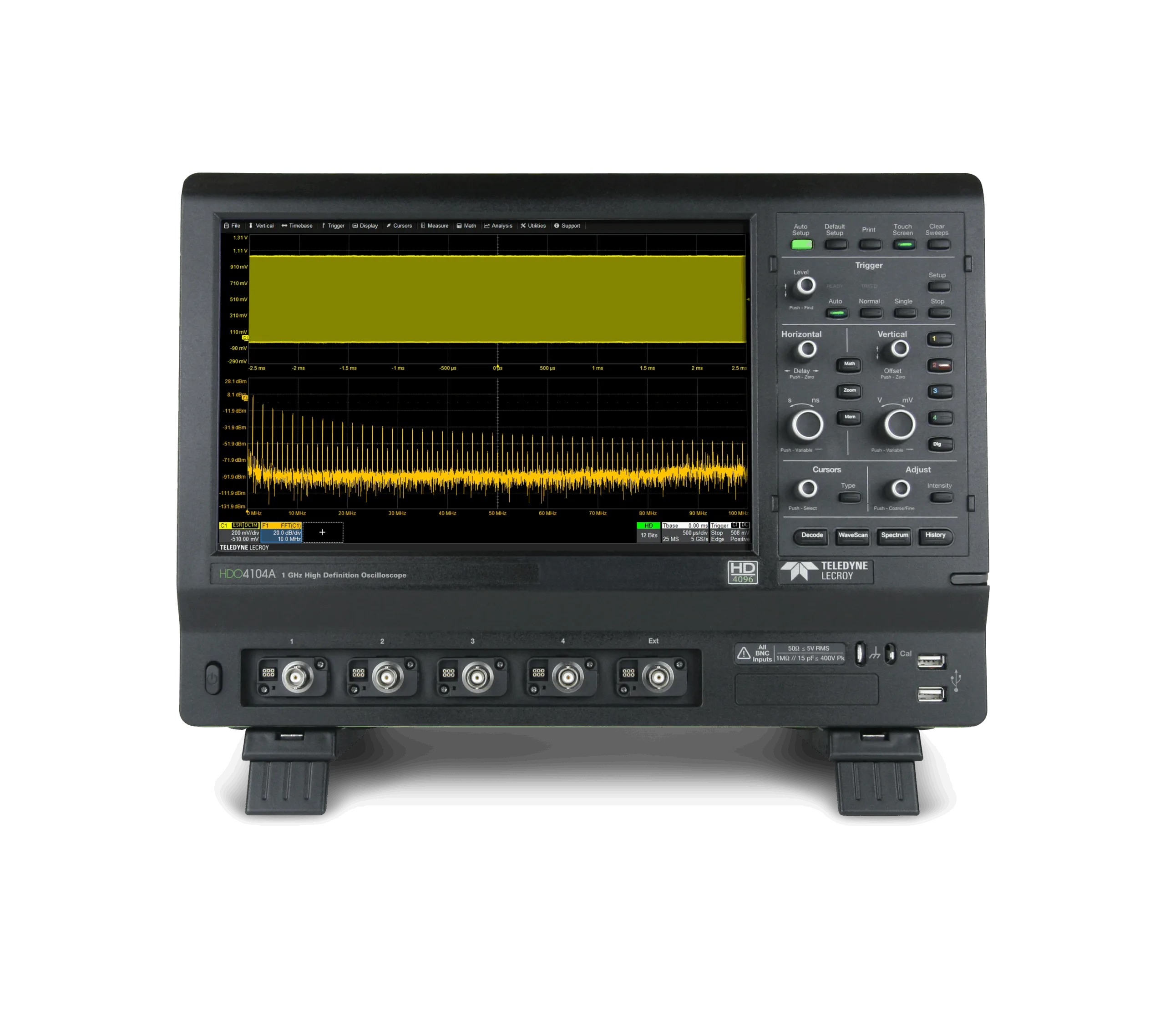

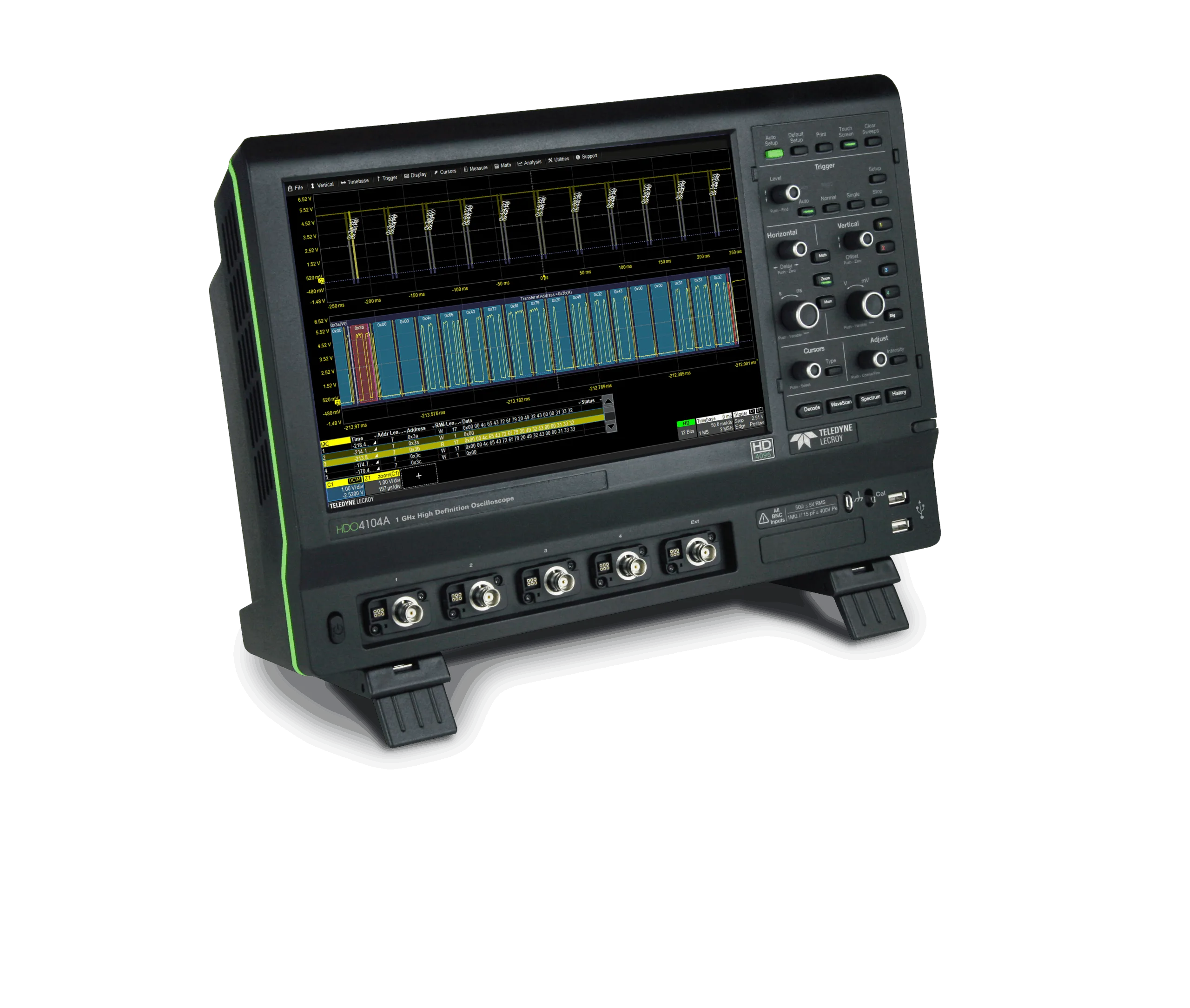

HDO4104A
1 GHz, 10 GS/s, 4 Ch, 12.5 Mpts/Ch, 12-Bit HD Oscilloscope with 12.1" WXGA Color Display
Article no.
HDO4104A
- Channels
- 4
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 25 Mpts
CHF 31'884.10
incl. 8.1% VAT · CHF 29'495.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 1000 MHz bandwidth
- 10000 MS/s sampling rate
- 25 Mpts memory depht
- 12 Bits vertical resolution
The Teledyne Lecroy HDO4104A is a high-definition oscilloscope featuring a 1 GHz bandwidth and a sampling rate of 10 GS/s across its four channels. Each channel is equipped with a memory depth of 12.5 million points, totaling 25 million points for all channels combined. The device offers a vertical resolution of 12 bits, allowing for detailed signal analysis. It includes a 12.1-inch WXGA color display with touch screen functionality, enhancing user interaction and data visualization. The oscilloscope does not support digital channels but provides precise analog signal measurement capabilities. This model is designed to handle complex waveform analysis with its high sampling rate and extensive memory depth, making it suitable for various testing and diagnostic applications. The combination of these features supports detailed and accurate signal capture and analysis.
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 25 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- No
- Touch Screen
- Yes
- Imax AC
