MDA 8038HD
350 MHz, 8 Ch, 12 bits, 10 GS/s, 50 Mpts/Ch Motor Drive Analyzer
Article no.
MDA 8038HD
- Channels
- 8
- Bandwidth
- 350 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 1250 Mpts
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 8 channels
- 350 MHz bandwidth
- 10000 MS/s sampling rate
- 1250 Mpts memory depht
- 12 Bits vertical resolution

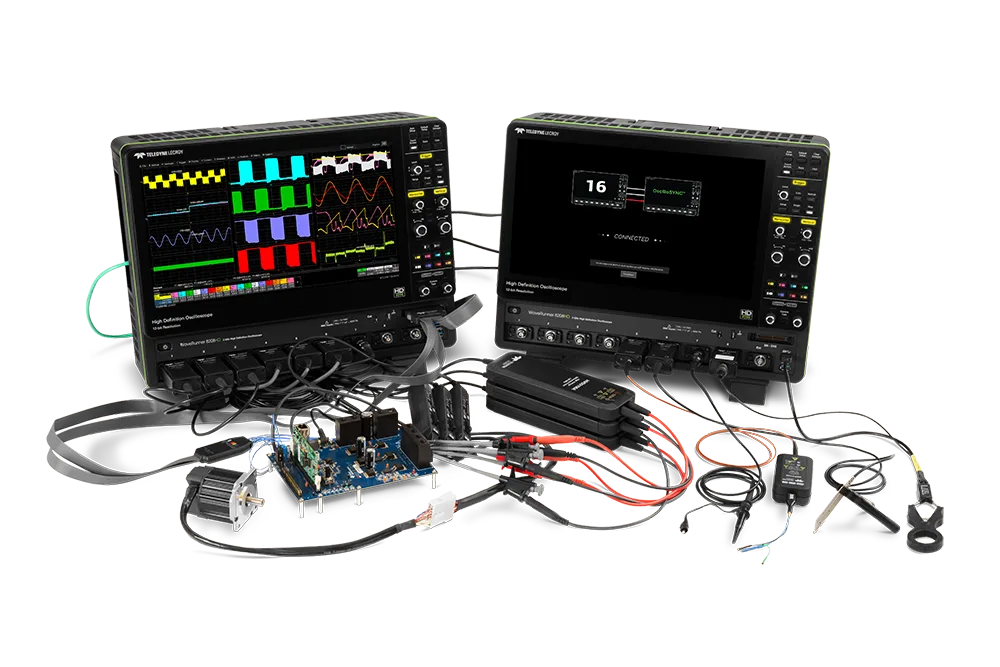

The MDA 8038HD from Teledyne Lecroy is a motor drive analyzer featuring 8 channels with a bandwidth of 350 MHz. It offers a vertical resolution of 12 bits and a high sampling rate of 10 GS/s per channel, enabling detailed signal analysis. Each channel is equipped with a memory depth of 50 million points, supporting extensive data capture. The device includes a touch screen interface for user interaction. Additionally, it provides a sampling rate of 10,000 MS/s and a memory depth of 1,250 million points, facilitating high-speed data acquisition and storage. This analyzer is designed to handle complex motor drive signals with precision and efficiency.
Technical data
Specifications
8- Channels
- 8
- Bandwidth
- 350 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 1250 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
- Imax AC
