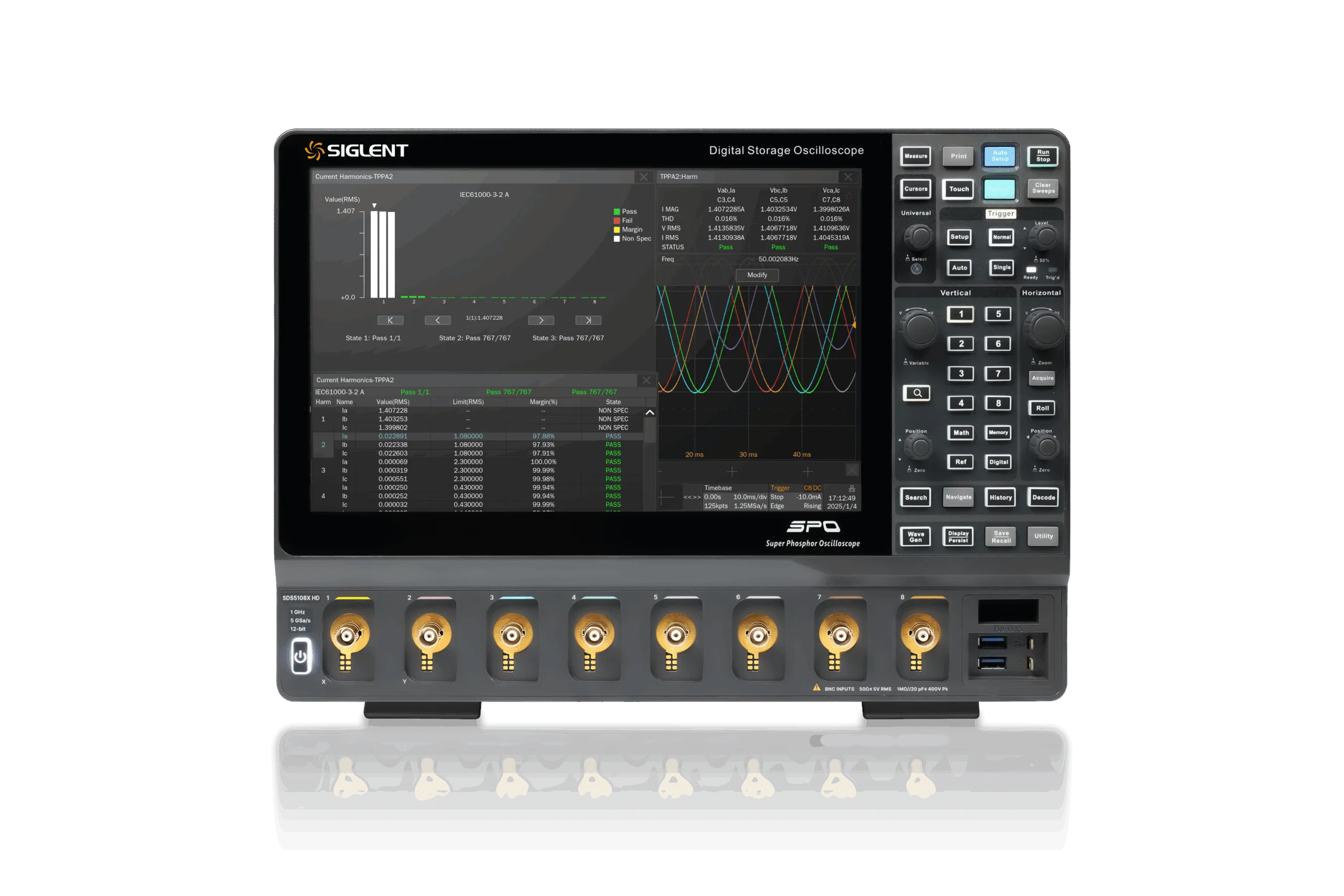

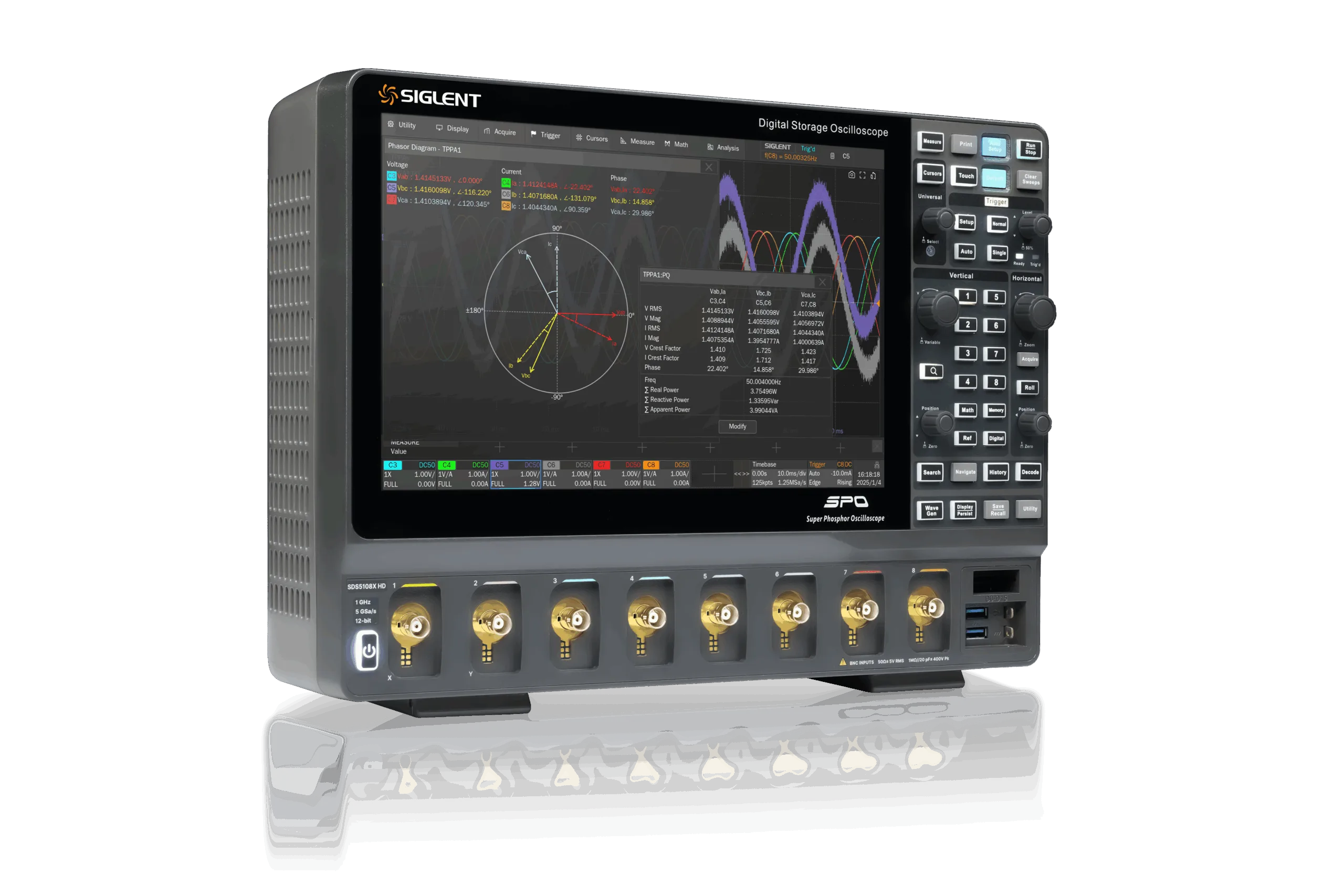

SDS5108X HD
8-ch, 1 GHz, 5 GSa/s, 12-bit, 2.5 Gpts/ch memory depth, 12.1” capacitive touch screen
Article no.
SDS5108X HD
- Channels
- 8
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 2500 MS/s
- Memory Depht
- 2500 Mpts
CHF 16'813.23
incl. 8.1% VAT · CHF 15'553.40 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 8 channels
- 1000 MHz bandwidth
- 2500 MS/s sampling rate
- 2500 Mpts memory depht
- 12 Bits vertical resolution
The Siglent SDS5108X HD features 8 channels with a bandwidth of 1 GHz and a sampling rate of 2.5 GSa/s per channel. It offers a vertical resolution of 12 bits and a memory depth of 2.5 million points per channel, allowing for detailed signal analysis. The device is equipped with a 12.1-inch capacitive touch screen, providing an intuitive interface for operation. Each channel supports a sampling rate of 2500 MS/s, ensuring high-speed data acquisition. The memory depth of 2500 Mpts enhances the capability to capture long signal sequences. This oscilloscope is designed to handle complex signal measurements with precision and clarity.

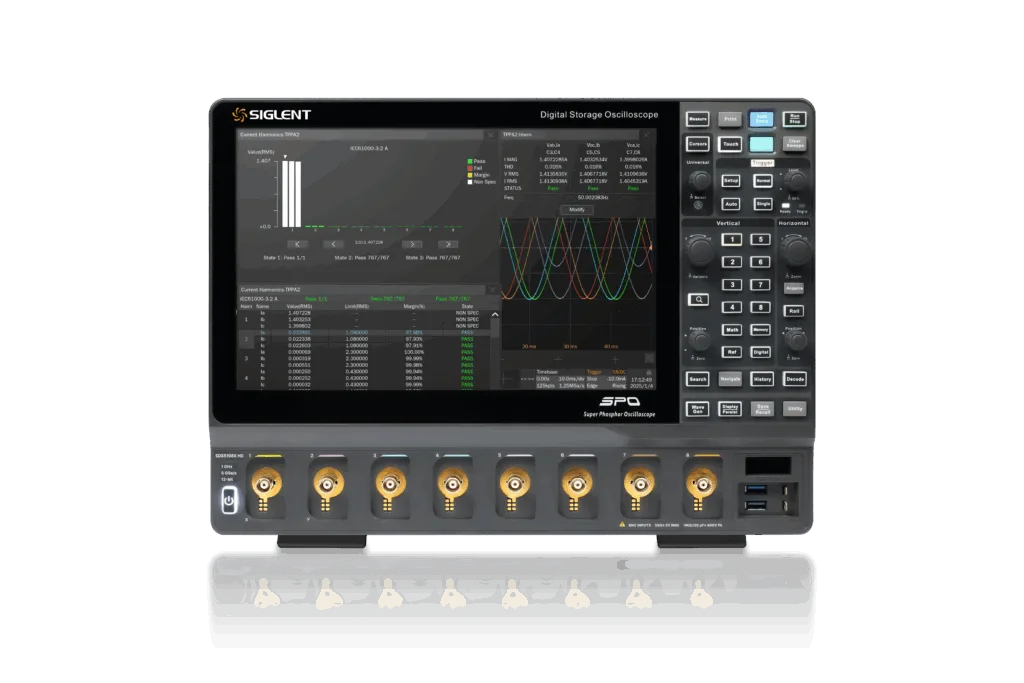

Video
SDS5108X HD
Technical data
Specifications
7- Channels
- 8
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 2500 MS/s
- Memory Depht
- 2500 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
Presentation
Product presentation
PDFDocuments
