SDS6104L
1U;8-bit， 1 GHz; 4 channels; 5 GSa/s (10 GSa/s ESR) @ each channel; 500Mpts memory depth; 170,000 wfm/s waveform capture rate; 4 MATH traces, 8 Mpts FFT;
Article no.
SDS6104L
- Channels
- 4
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 5000 MS/s
- Memory Depht
- 500 Mpts
CHF 11'103.86
incl. 8.1% VAT · CHF 10'271.84 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 1000 MHz bandwidth
- 5000 MS/s sampling rate
- 500 Mpts memory depht
- 8 Bits vertical resolution

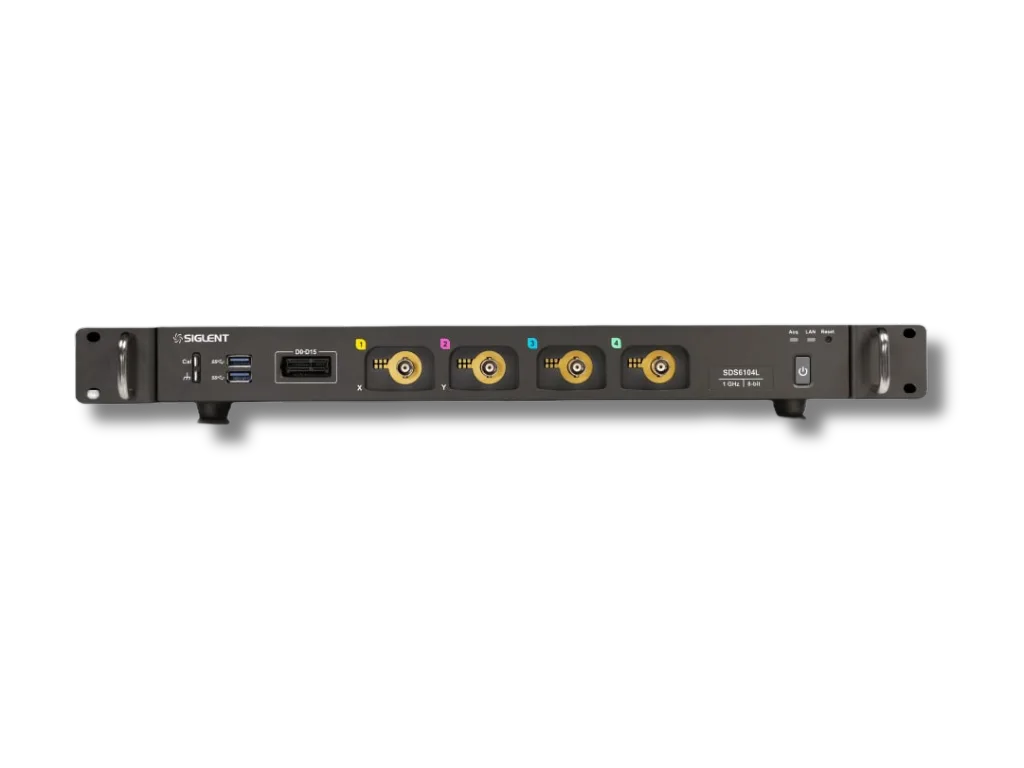

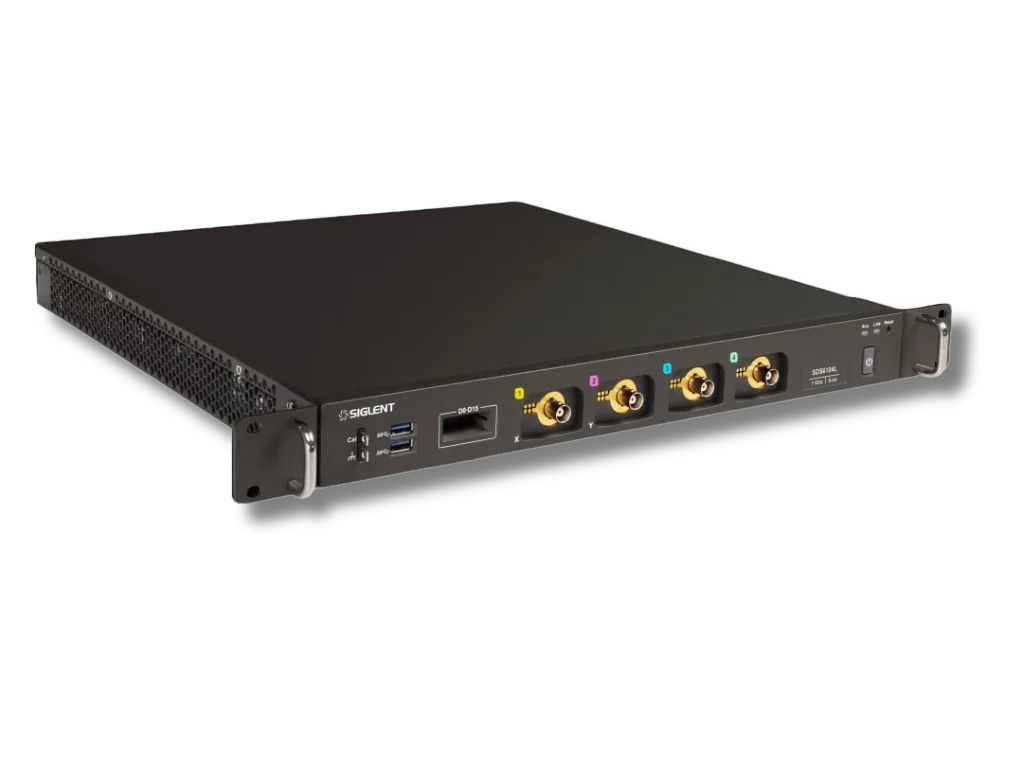

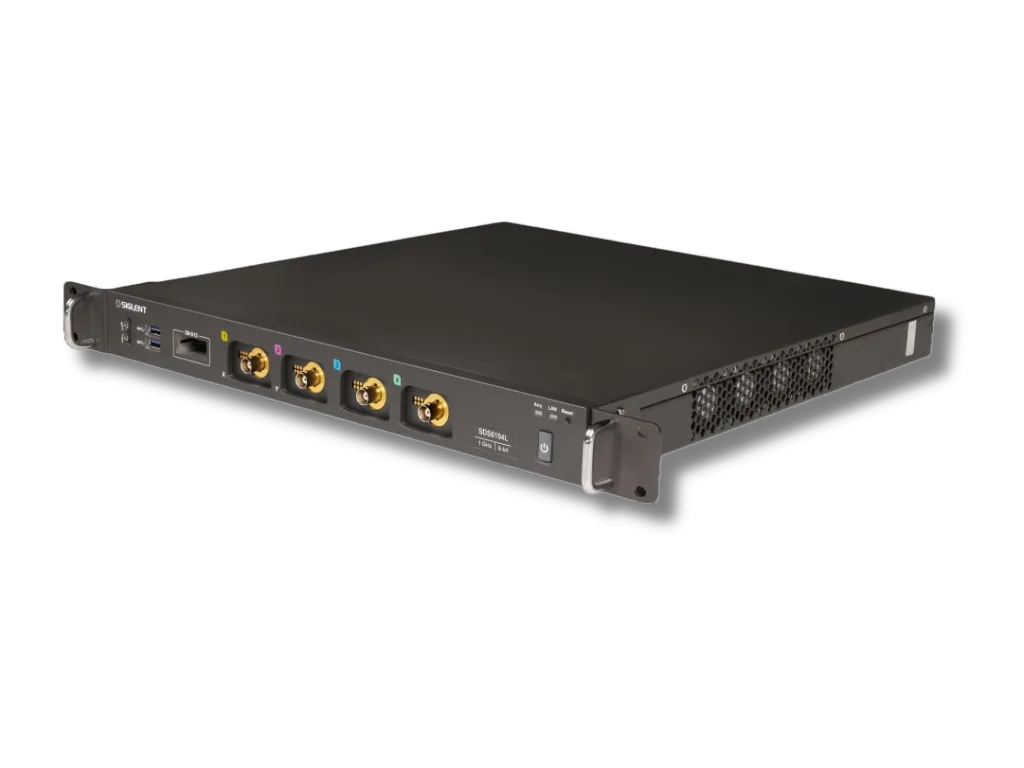

The Siglent SDS6104L is a 1U oscilloscope featuring 8-bit vertical resolution and a bandwidth of 1000 MHz across its 4 channels. Each channel supports a sampling rate of 5 GSa/s, with an equivalent sampling rate of 10 GSa/s in ESR mode. The device offers a memory depth of 500 Mpts, enabling extensive data capture for detailed analysis. It boasts a waveform capture rate of 170,000 waveforms per second, facilitating rapid signal acquisition. The oscilloscope includes 4 MATH traces and supports 8 Mpts FFT for advanced signal processing. The model does not include a touch screen interface. This combination of features makes the SDS6104L suitable for high-speed, high-resolution signal measurement and analysis.
Video
SDS6104L
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 5000 MS/s
- Memory Depht
- 500 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- Opt
- Touch Screen
- No
