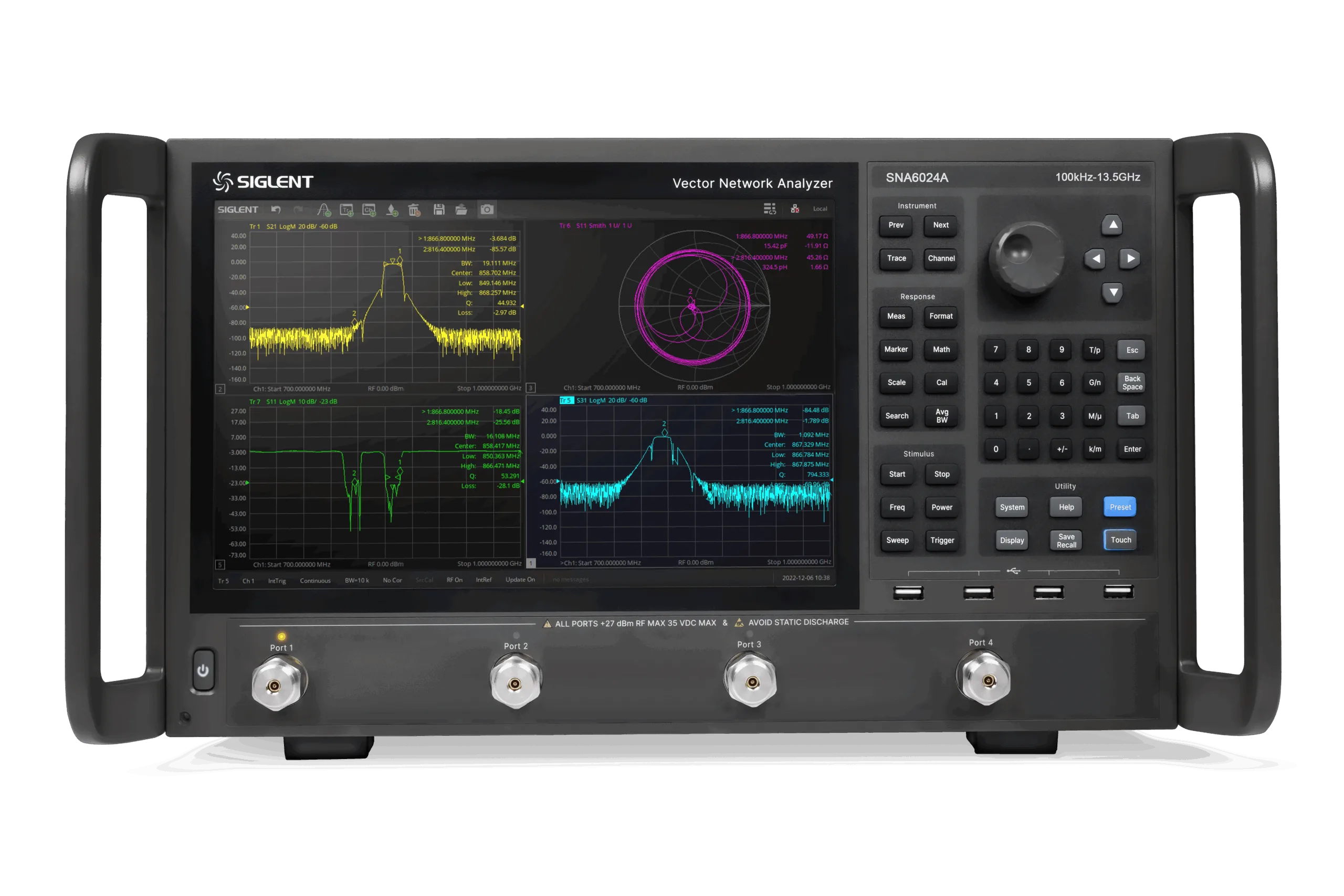

SNA6024A
100k~13.5GHz, 4 ports VNA
Article no.
SNA6024A
- Frequency Max
- 13500 MHz
- Frequency min
- 100000 Hz
- Dynamic Range
- 135 dB
- Ports
- 4
CHF 48'261.93
incl. 8.1% VAT · CHF 44'645.63 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 13500 MHz frequency max
- 100000 Hz frequency min
- 135 dB dynamic range
- 4 ports
The Siglent SNA6024A is a vector network analyzer that operates over a frequency range from 100 kHz to 13.5 GHz. It features four ports, allowing for versatile measurement configurations. The device offers a dynamic range of 135 dB, which supports detailed signal analysis across its operating frequencies. Designed as a benchtop instrument, it is not handheld, indicating its suitability for laboratory or production environments. The maximum frequency capability of 13.5 GHz enables it to handle a wide variety of RF and microwave testing applications. With its multiple ports and broad frequency range, the SNA6024A is equipped to perform complex network measurements and characterizations. This model is part of Siglent's product lineup, known for precision and reliability in electronic test equipment.

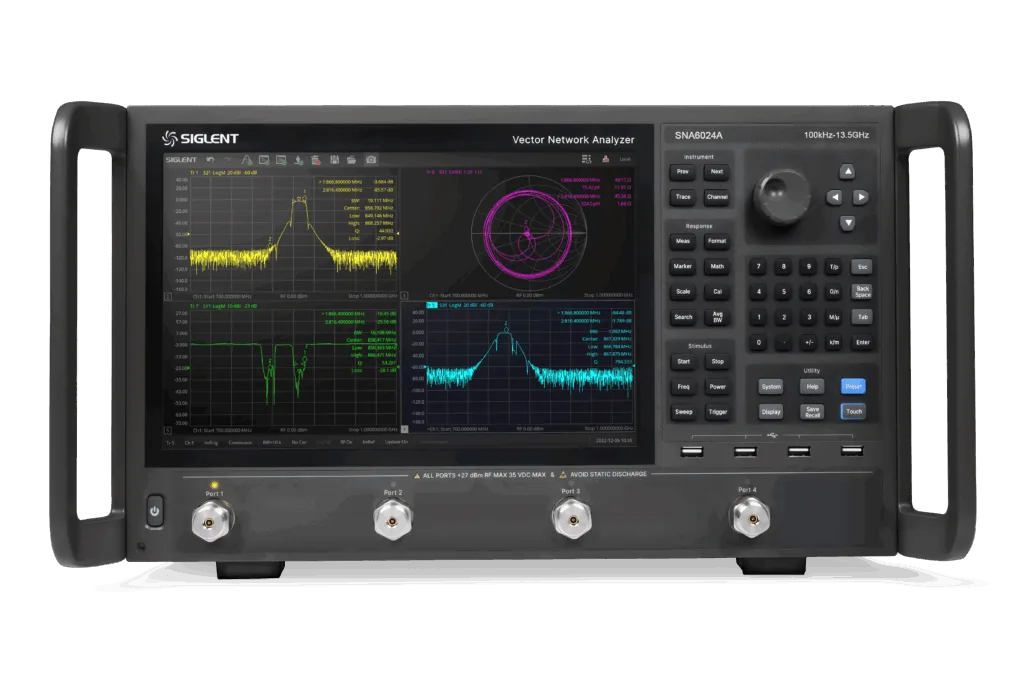

Video
SNA6024A
Technical data
Specifications
5- Frequency Max
- 13500 MHz
- Frequency min
- 100000 Hz
- Dynamic Range
- 135 dB
- Ports
- 4
- Handheld
- No
