SHA852A

9 kHz~7.5 GHz handheld spectrum analyzer, 100 kHz~7.5 GHz cable and antenna analyzer, -165 dBm/Hz Displayed Average

Article no. SHA852A

Frequency Max: 7500 MHz
Frequency min: 9000 Hz
Handheld: Yes
Analysis Bandwidth: 3 MHz

CHF 6'800.85

incl. 8.1% VAT · CHF 6'291.26 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

7500 MHz frequency max
9000 Hz frequency min
Handheld
3 MHz analysis bandwidth
-165 dBm/Hz danl

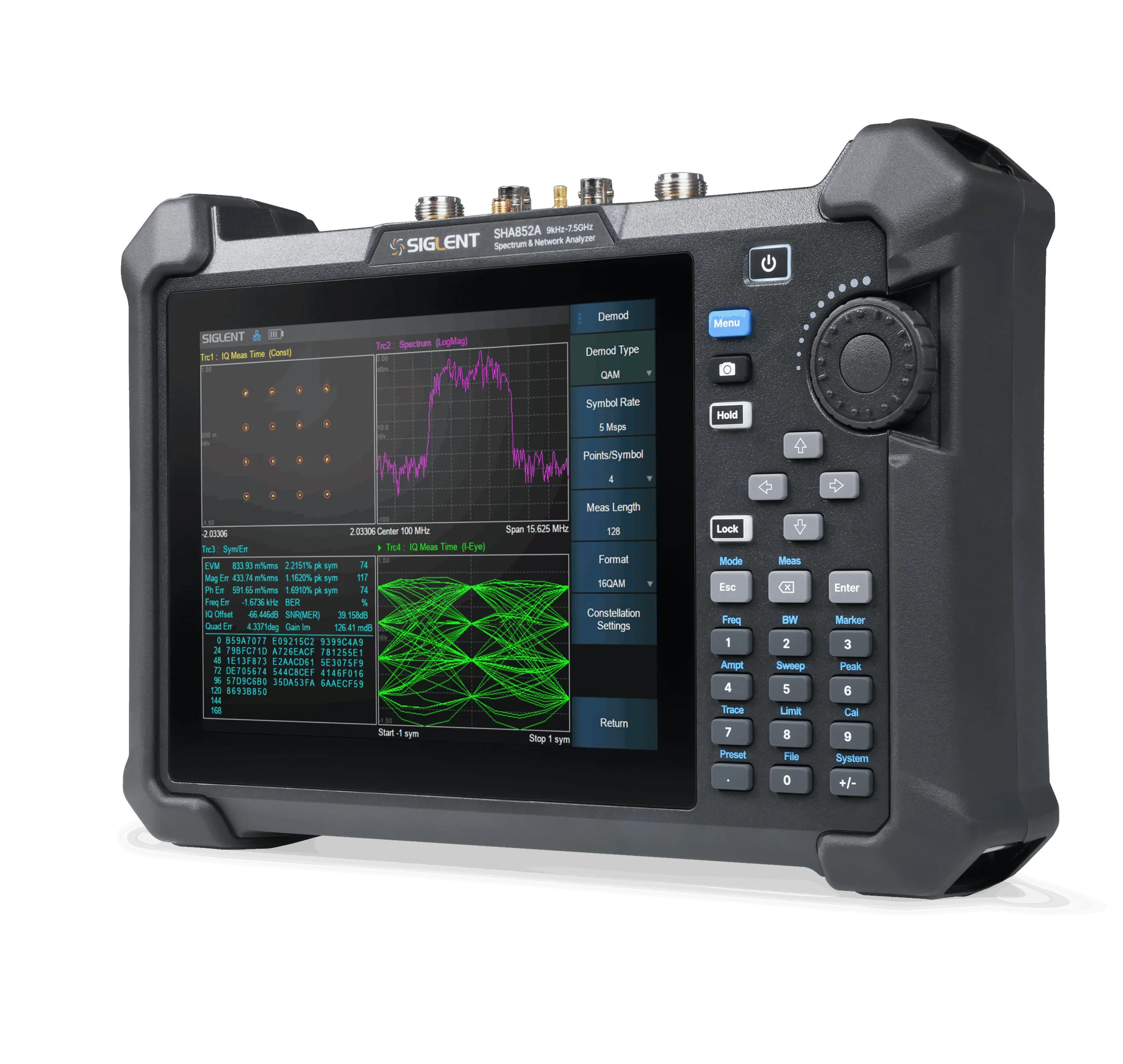

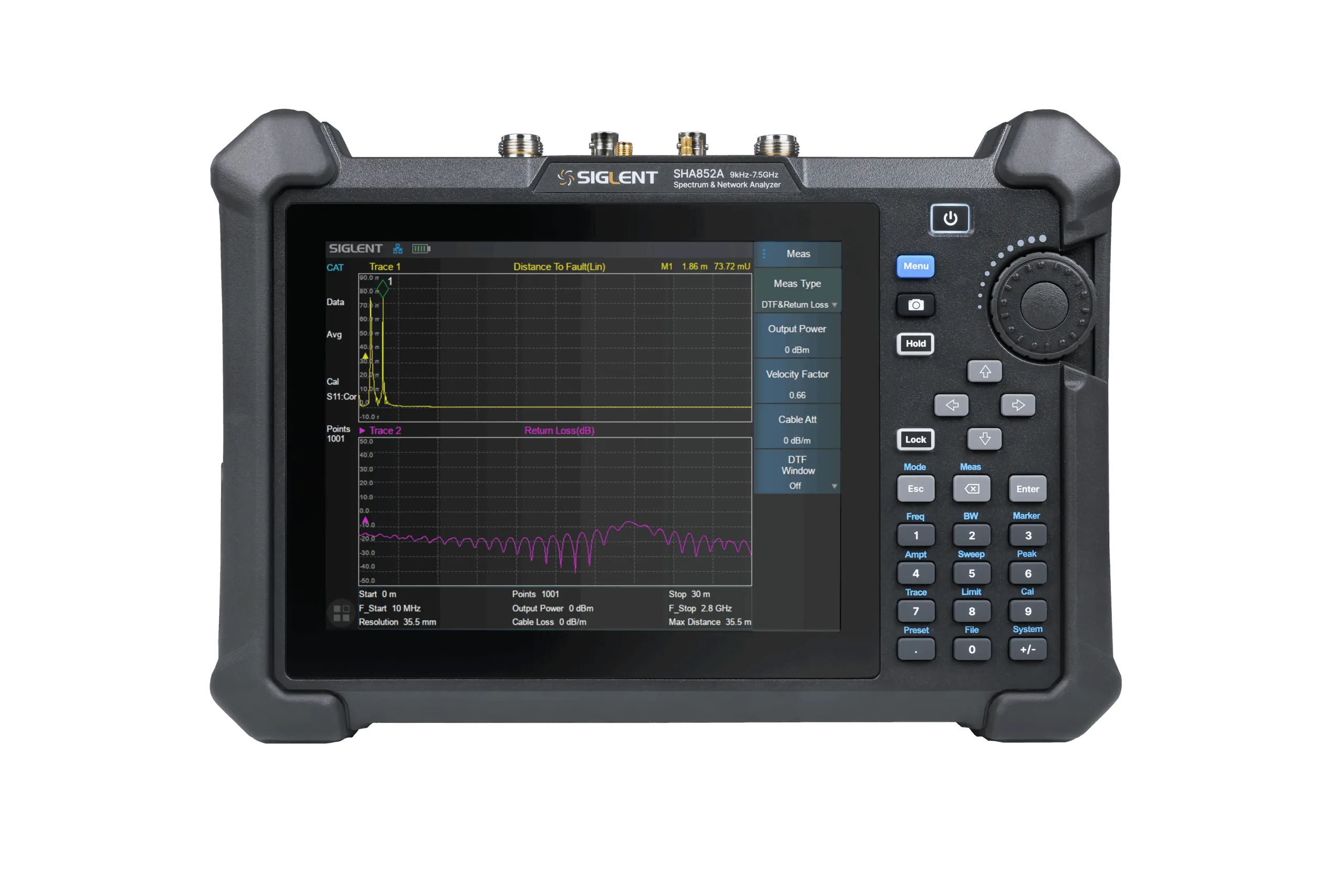

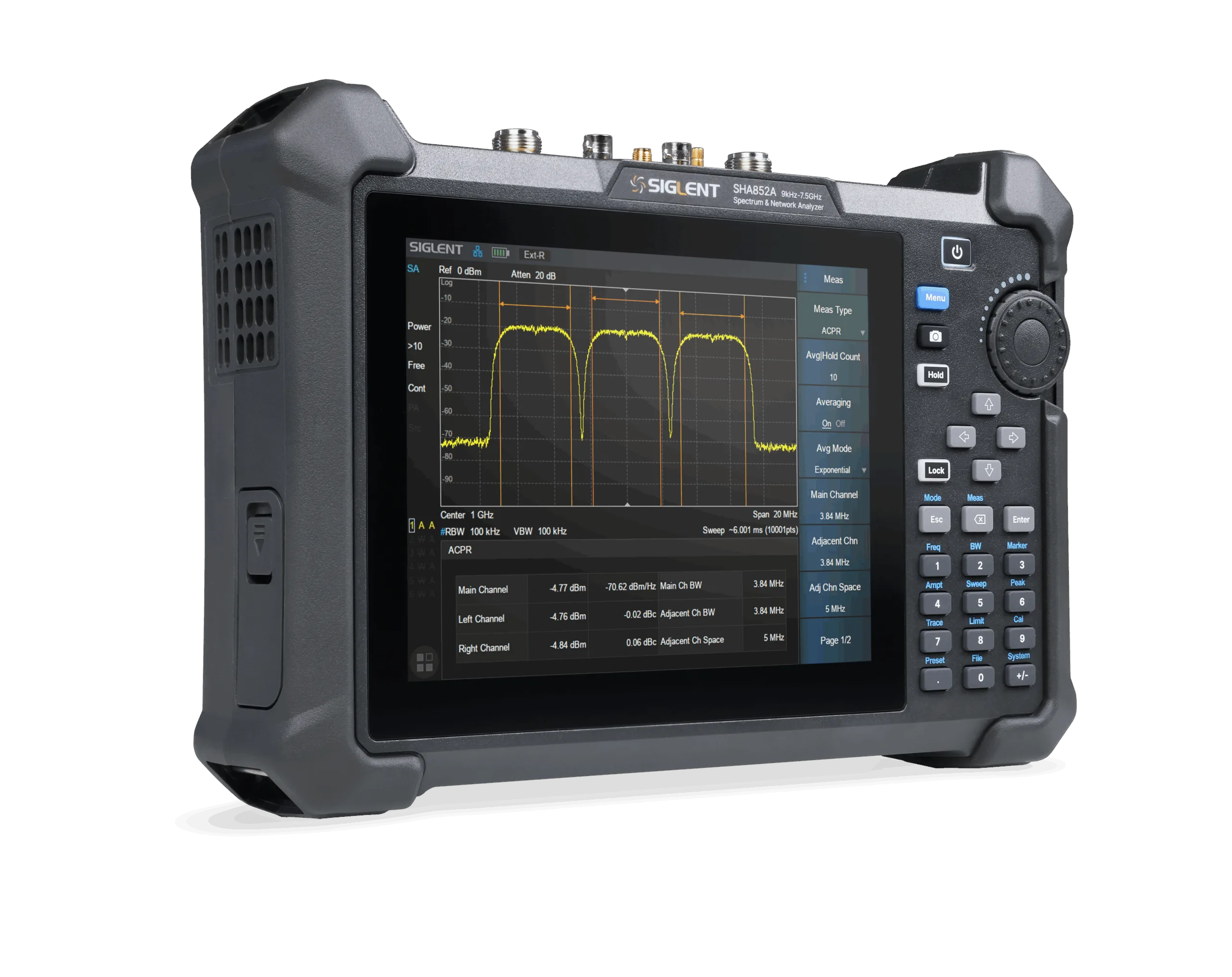

The Siglent SHA852A is a handheld spectrum analyzer that operates over a frequency range from 9 kHz to 7.5 GHz, providing versatile analysis capabilities for various signal types. It also functions as a cable and antenna analyzer covering frequencies from 100 kHz to 7.5 GHz. The device features a displayed average noise level of -165 dBm/Hz, allowing for sensitive signal detection. Its phase noise is rated at -104 dBc/Hz, contributing to accurate frequency measurements. The analyzer supports an analysis bandwidth of 3 MHz, enabling detailed examination of signal characteristics. Designed for portability, the SHA852A is handheld, making it suitable for field use. The maximum frequency it can measure is 7.5 GHz, while the minimum frequency is 9 kHz. This combination of features makes the SHA852A a comprehensive tool for spectrum and cable analysis tasks.

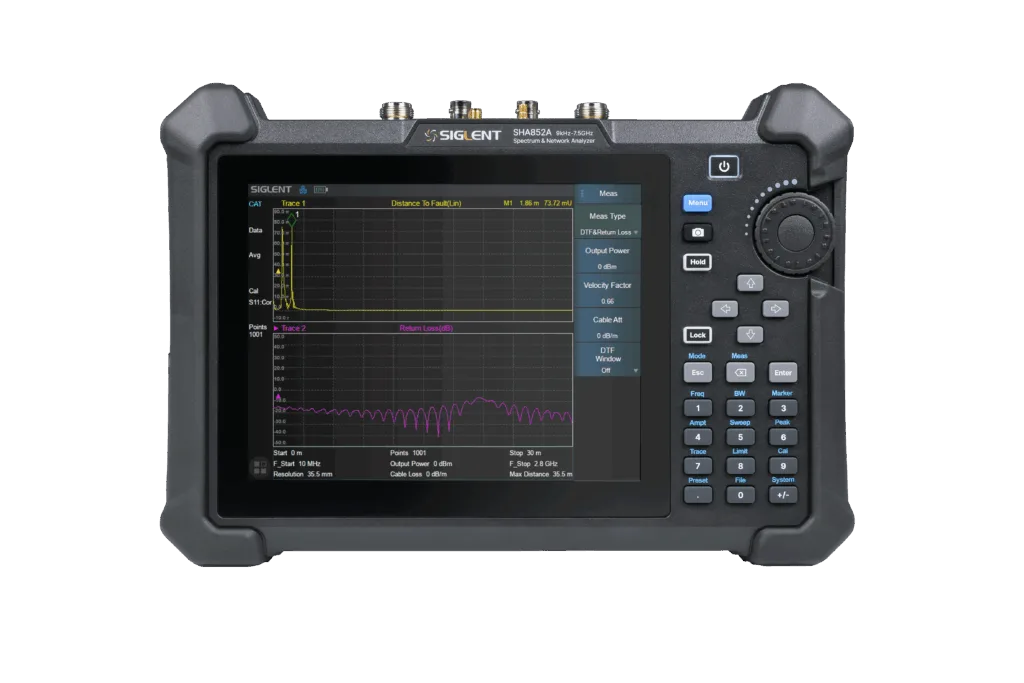

Video SHA852A

Technical data
