SSA3032X Plus
9KHz-3.2GHz, Phase Noise
Article no.
SSA3032X Plus
- Frequency Max
- 3200 MHz
- Frequency min
- 9000 Hz
- Handheld
- No
- Analysis Bandwidth
- 1 MHz
CHF 2'559.76
incl. 8.1% VAT · CHF 2'367.96 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 3200 MHz frequency max
- 9000 Hz frequency min
- 1 MHz analysis bandwidth
- -161 dBm/Hz danl

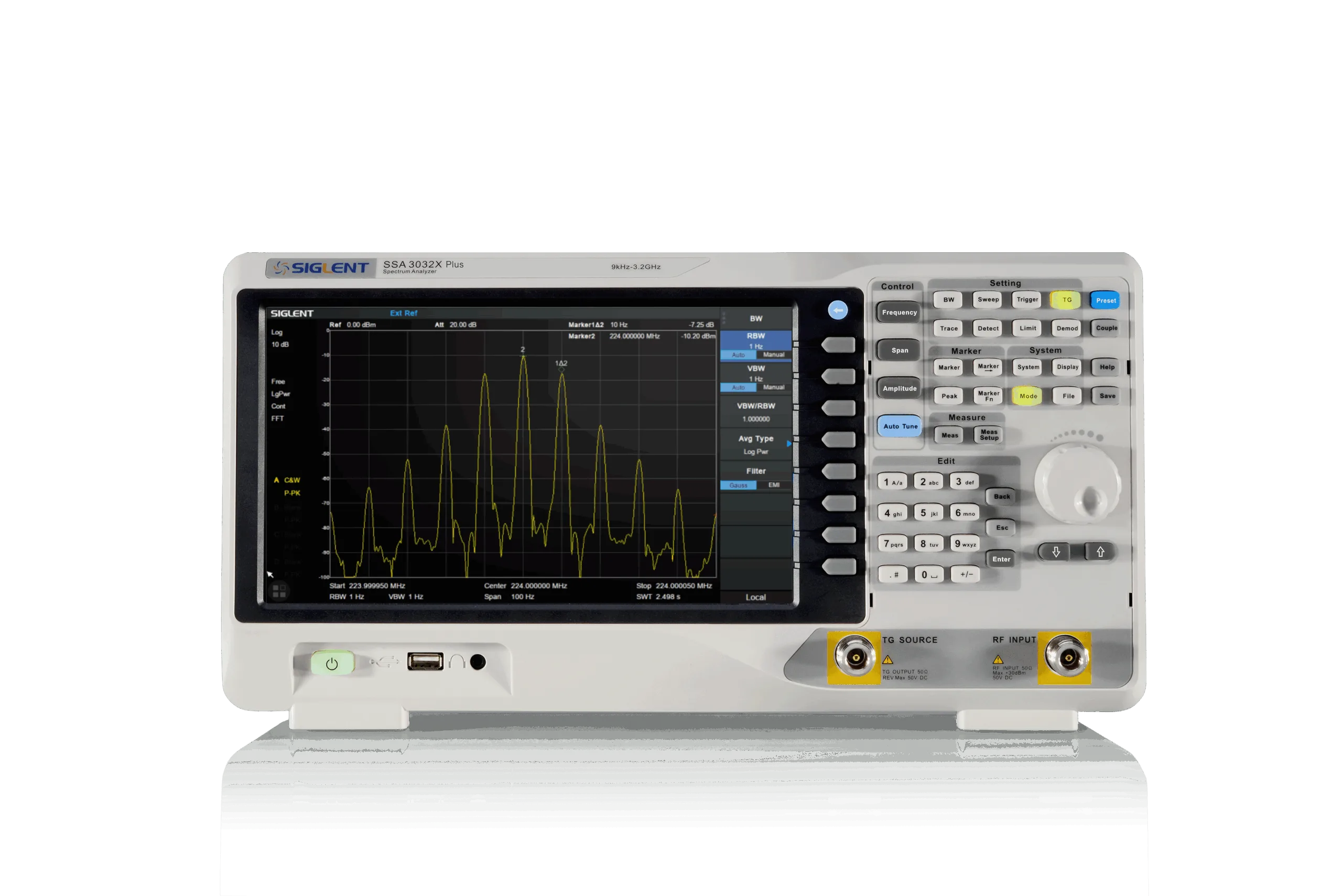

The SSA3032X Plus by Siglent operates over a frequency range from 9 kHz to 3.2 GHz, providing a phase noise level of less than -98 dBc/Hz. It features a resolution bandwidth (RBW) adjustable between 1 Hz and 1 MHz, allowing for detailed signal analysis. The device achieves a minimum displayed average noise level (DANL) of -161 dBm/Hz, supporting the detection of very low-level signals. Its total amplitude accuracy is maintained at less than 0.7 dB, ensuring precise amplitude measurements. The instrument is equipped with a 10.1-inch WVGA touch screen with a resolution of 1024 by 600 pixels, facilitating user interaction and control. The analysis bandwidth is specified at 1 MHz, which supports various signal processing applications. This model is not handheld, indicating it is designed for benchtop use in laboratory or industrial environments.

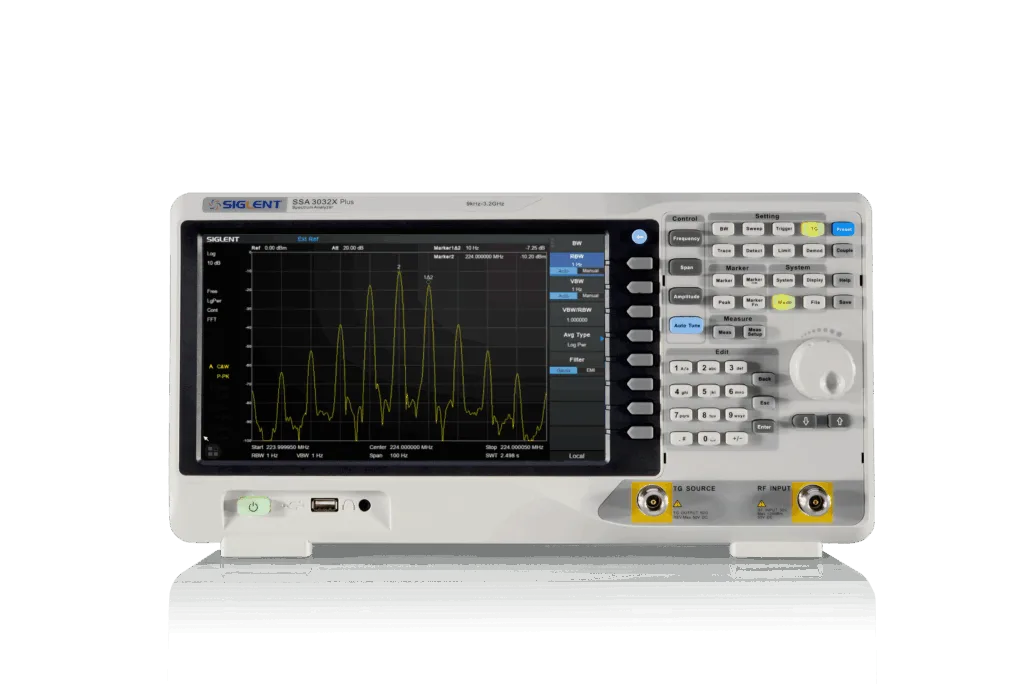

Video
SSA3032X Plus
Technical data
Specifications
6- Frequency Max
- 3200 MHz
- Frequency min
- 9000 Hz
- Handheld
- No
- Analysis Bandwidth
- 1 MHz
- DANL
- -161 dBm/Hz
- RTSA
- No
