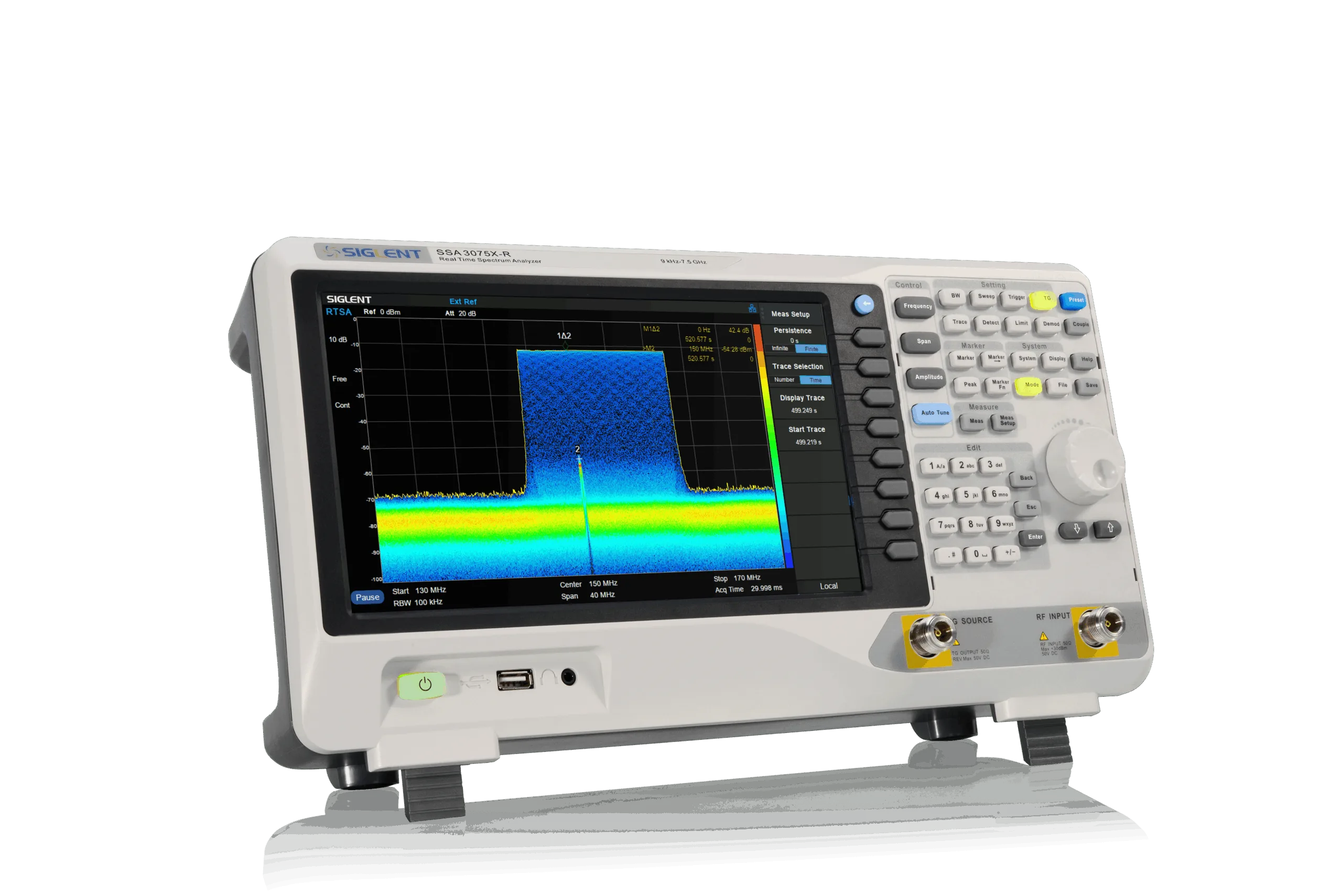

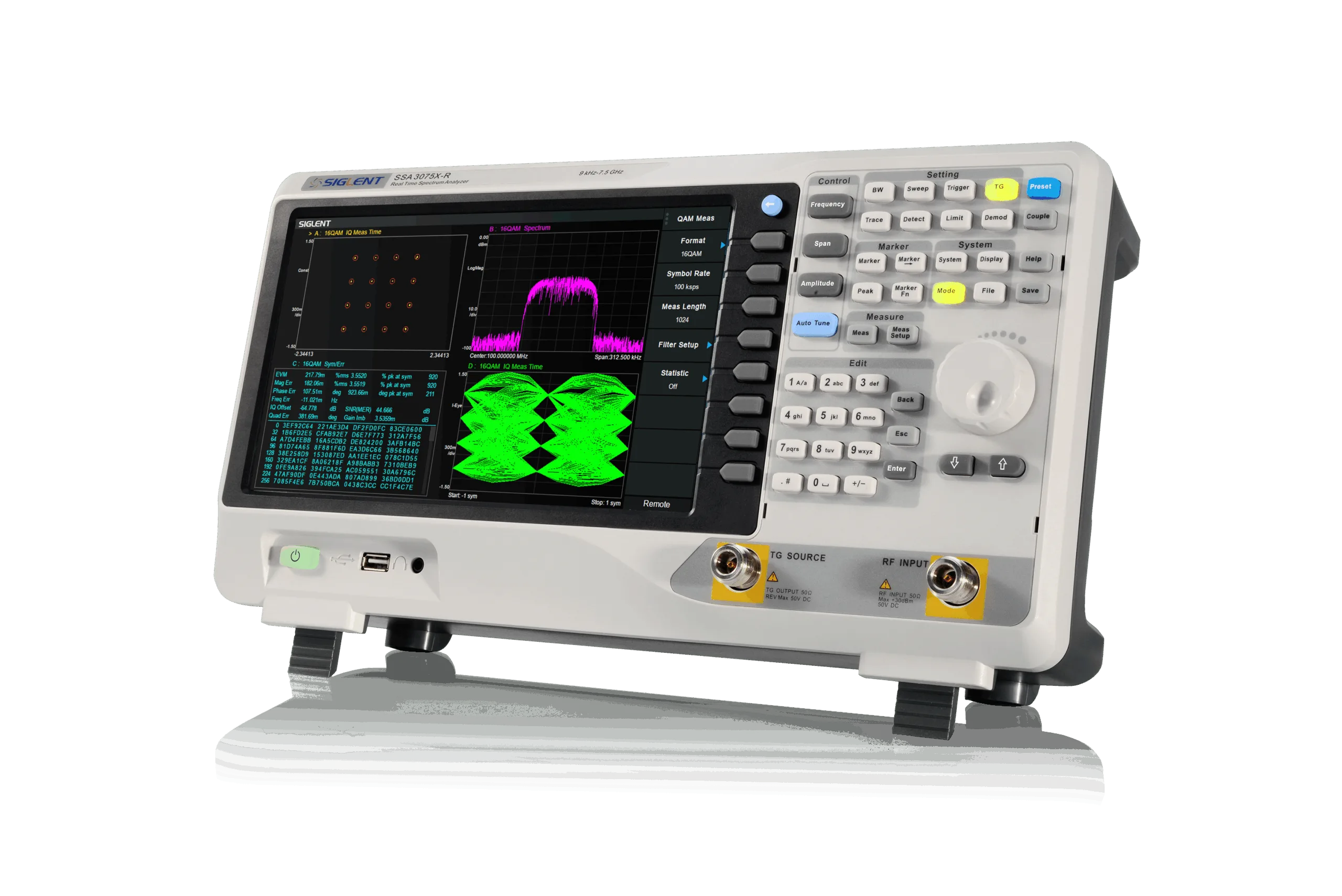

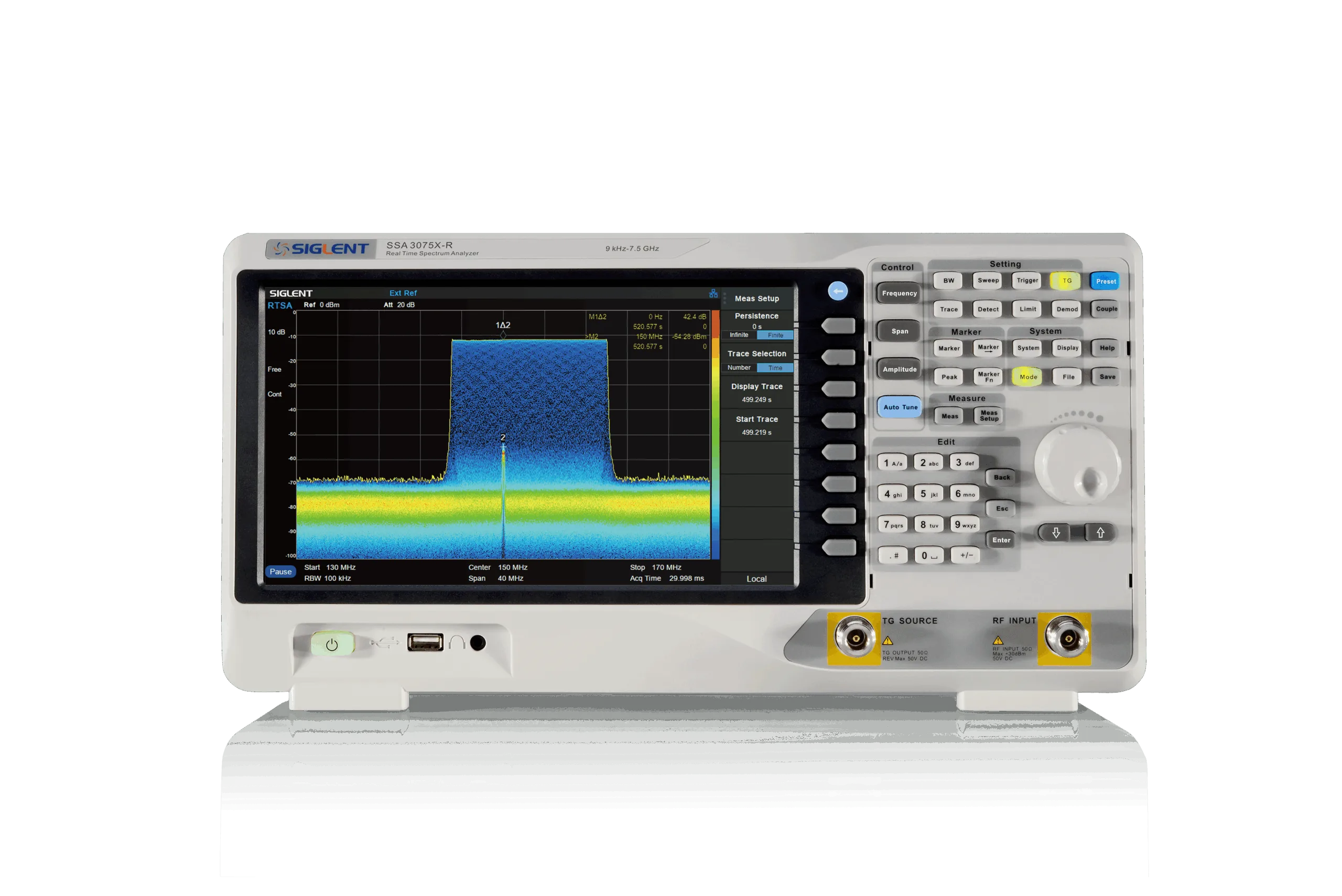

SSA3075X-R

SA 9 kHz - 7.5 GHz; RBW 1 Hz - 3 MHz; DANL -165 dBm/Hz; Phase Noise

Article no. SSA3075X-R

Frequency Max: 7500 MHz
Frequency min: 9000 Hz
Handheld: No
Analysis Bandwidth: 40 MHz

CHF 9'566.32

incl. 8.1% VAT · CHF 8'849.51 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

7500 MHz frequency max
9000 Hz frequency min
40 MHz analysis bandwidth
-165 dBm/Hz danl
Opt rtsa

The SSA3075X-R by Siglent operates over a frequency range from 9 kHz to 7.5 GHz, offering a resolution bandwidth (RBW) adjustable between 1 Hz and 3 MHz. It features a displayed average noise level (DANL) of -165 dBm/Hz, providing a low noise floor for signal analysis. The phase noise is specified at less than -98 dBc/Hz, contributing to signal clarity during measurements. This model supports real-time bandwidth options of 25 MHz and 40 MHz, enabling detailed signal capture and analysis. Its real-time spectrum analyzer (RTSA) measurement capabilities include density, spectrogram, 3D, PvT, as well as standard vector network analyzer (VNA) and distance-to-fault (DTF) functions. The maximum frequency supported is 7.5 GHz, while the minimum frequency is 9 kHz. The analysis bandwidth is 40 MHz, allowing for comprehensive examination of signal characteristics across a wide spectrum. This instrument is not handheld, indicating it is designed for benchtop or stationary use.
