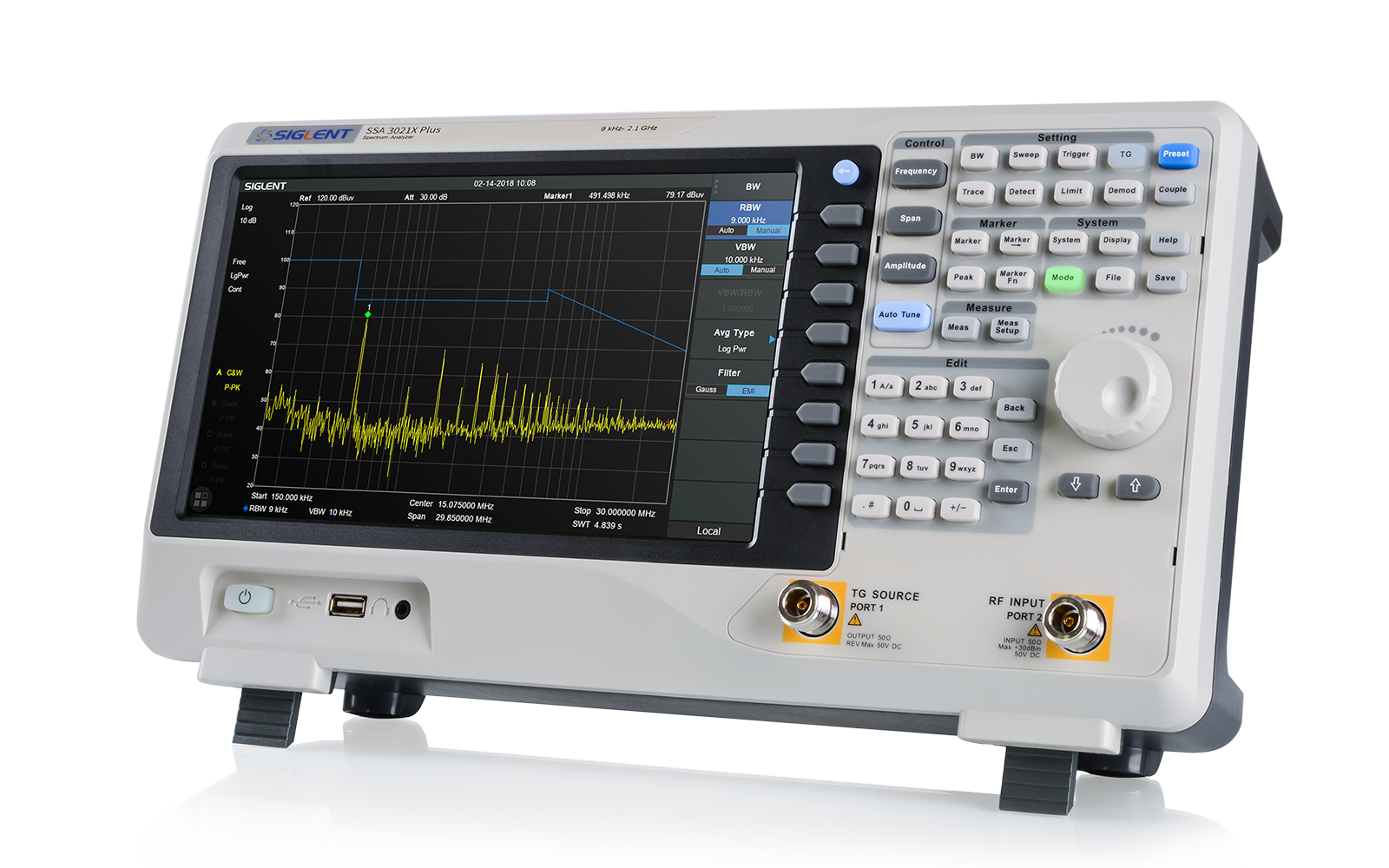

SSA3021X Plus
9KHz-2.1GHz, Phase Noise
Article no.
SSA3021X Plus
- Frequency Max
- 2100 MHz
- Frequency min
- 9000 Hz
- Handheld
- No
- Analysis Bandwidth
- 1 MHz
CHF 1'541.73
incl. 8.1% VAT · CHF 1'426.21 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2100 MHz frequency max
- 9000 Hz frequency min
- 1 MHz analysis bandwidth
- -161 dBm/Hz danl

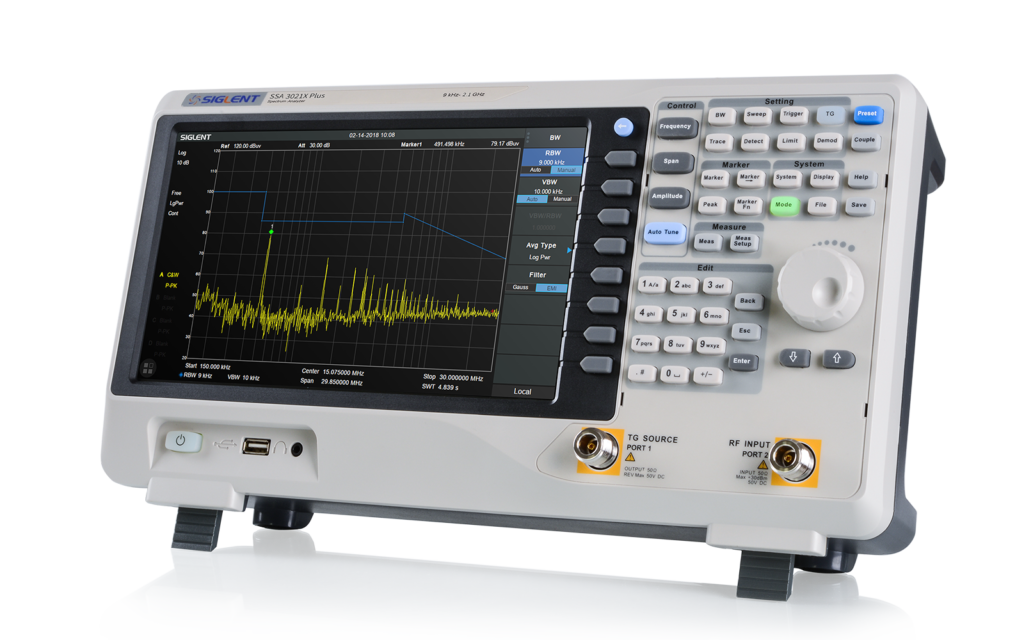

The SSA3021X Plus by Siglent operates over a frequency range from 9 kHz to 2.1 GHz, providing a phase noise level of less than -98 dBc/Hz. It features a resolution bandwidth (RBW) adjustable from 1 Hz to 1 MHz, allowing for detailed signal analysis. The device offers a minimum displayed average noise level (DANL) of -161 dBm/Hz, ensuring high sensitivity in measurements. Its total amplitude accuracy is maintained below 0.7 dB, contributing to precise amplitude readings. The instrument is equipped with a 10.1-inch WVGA touch screen with a resolution of 1024 by 600 pixels, facilitating user interaction and control. The analysis bandwidth is set at 1 MHz, supporting various signal processing tasks. This model is not handheld, indicating it is designed for benchtop use in laboratory or industrial environments.
Video
SSA3021X Plus
Technical data
Specifications
6- Frequency Max
- 2100 MHz
- Frequency min
- 9000 Hz
- Handheld
- No
- Analysis Bandwidth
- 1 MHz
- DANL
- -161 dBm/Hz
- RTSA
- No
