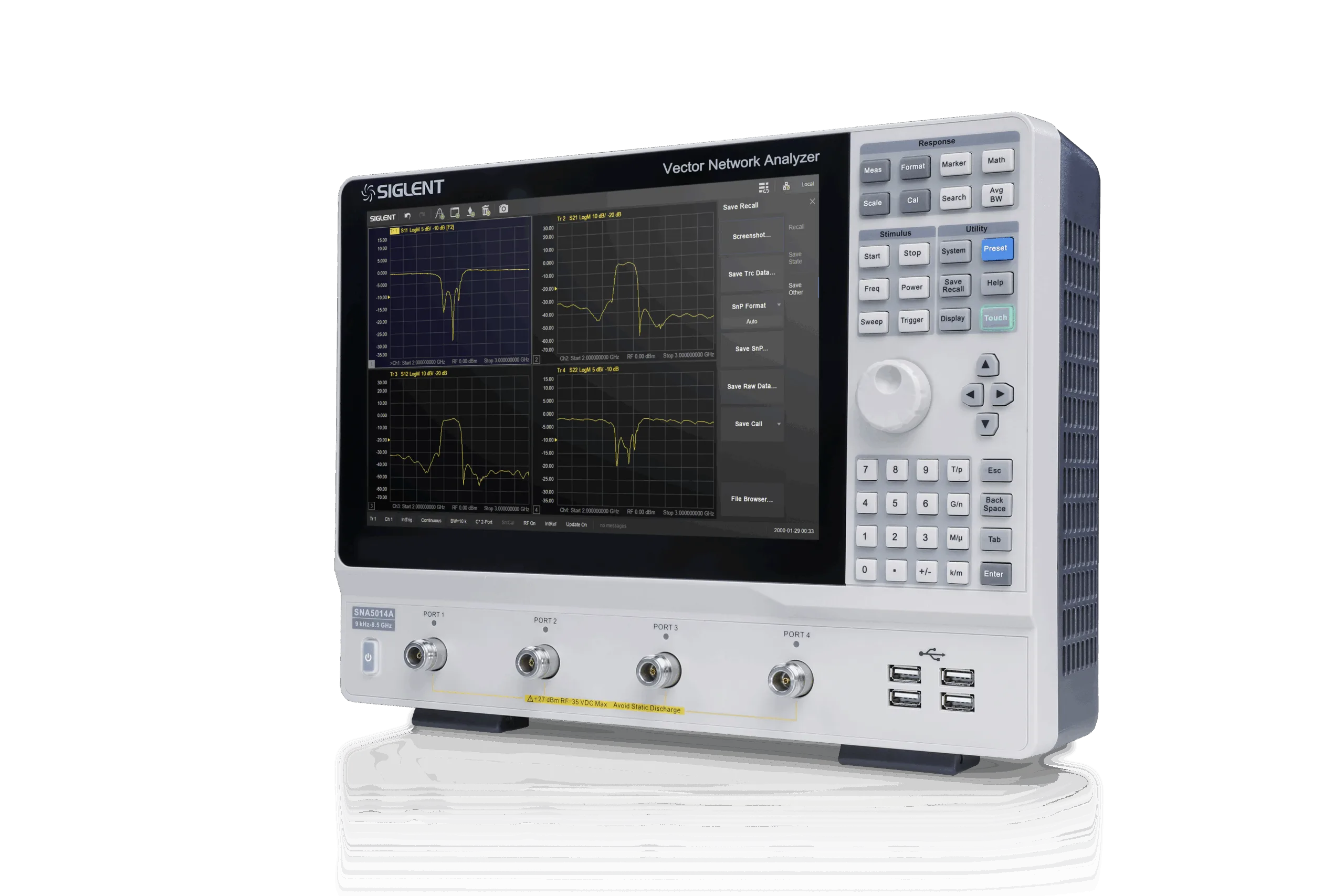

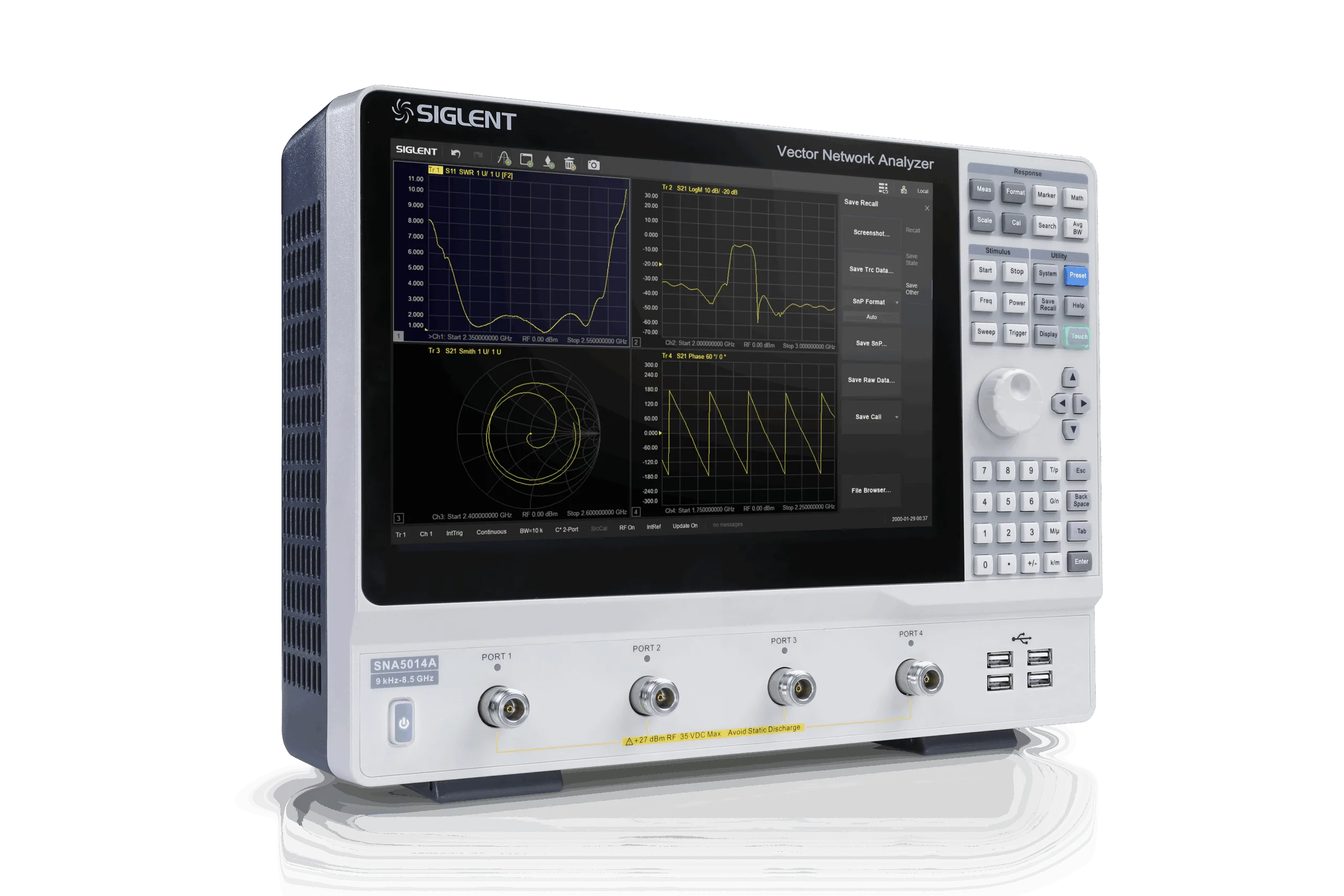

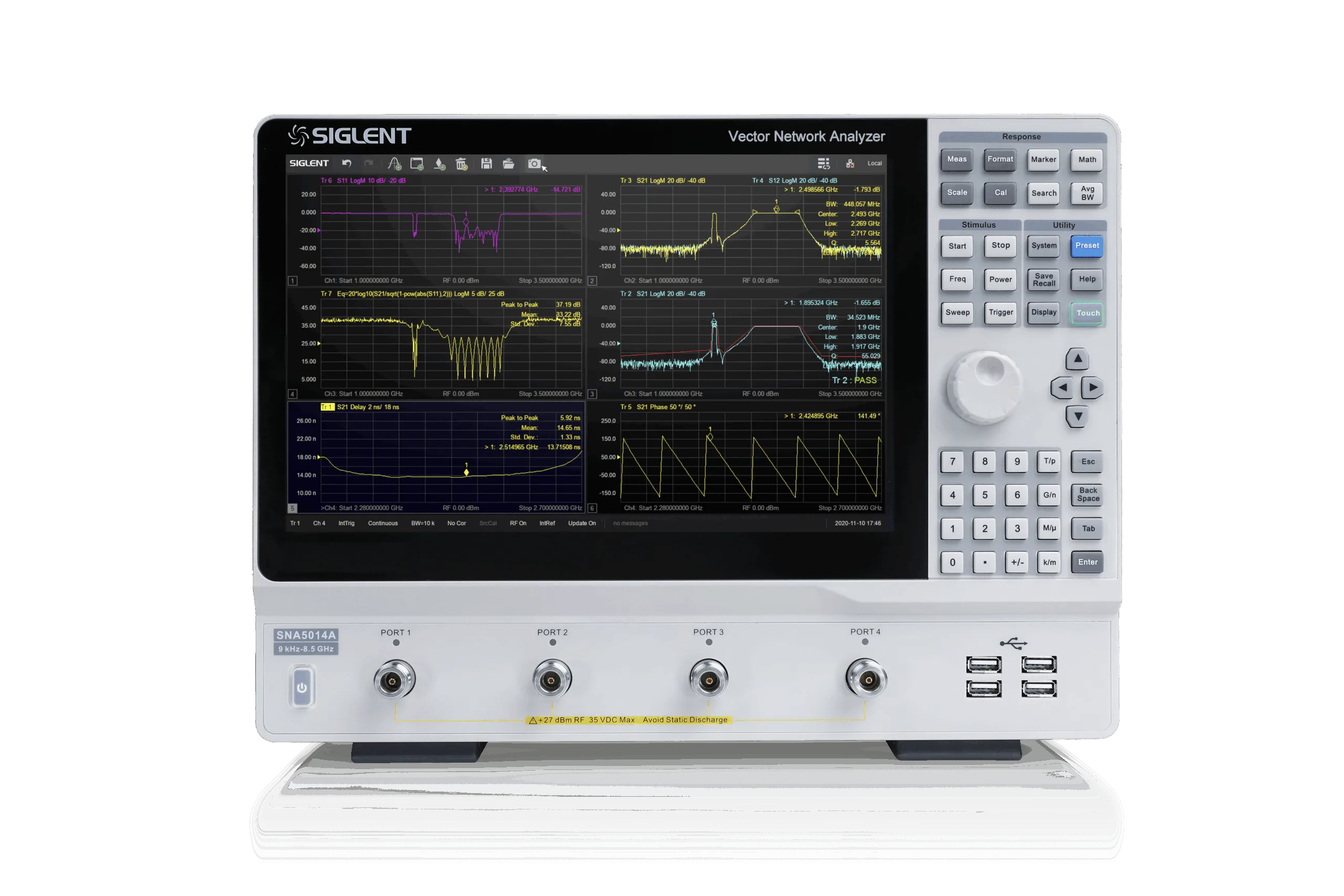

SNA5014A
Frequency Range: 9 kHz~8.5 GHz, 4 ports，Frequencey Resolution 1 Hz, IFBW 10 Hz~3 MHz, Dynamic Range 125 dB, Output Level Range -55 dBm ~ +10 dBm, 12.1'' Touch Screen
Article no.
SNA5014A
- Frequency Max
- 8500 MHz
- Frequency min
- 9000 Hz
- Dynamic Range
- 125 dB
- Ports
- 4
CHF 22'774.46
incl. 8.1% VAT · CHF 21'067.96 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 8500 MHz frequency max
- 9000 Hz frequency min
- 125 dB dynamic range
- 4 ports
The Siglent SNA5014A operates within a frequency range of 9 kHz to 8.5 GHz, providing a wide spectrum for various applications. It features four ports, allowing for multiple connections and measurements simultaneously. The device offers a frequency resolution of 1 Hz, enabling precise frequency analysis. Its intermediate frequency bandwidth (IFBW) ranges from 10 Hz to 3 MHz, supporting detailed signal examination. The dynamic range of the SNA5014A is 125 dB, which facilitates the detection of signals with significant amplitude differences. The output level range spans from -55 dBm to +10 dBm, accommodating a variety of signal strengths. Additionally, the instrument is equipped with a 12.1-inch touch screen, enhancing user interaction and control. This combination of specifications makes the SNA5014A suitable for comprehensive frequency and signal analysis tasks.
Video
SNA5014A
Technical data
Specifications
5- Frequency Max
- 8500 MHz
- Frequency min
- 9000 Hz
- Dynamic Range
- 125 dB
- Ports
- 4
- Handheld
- No
