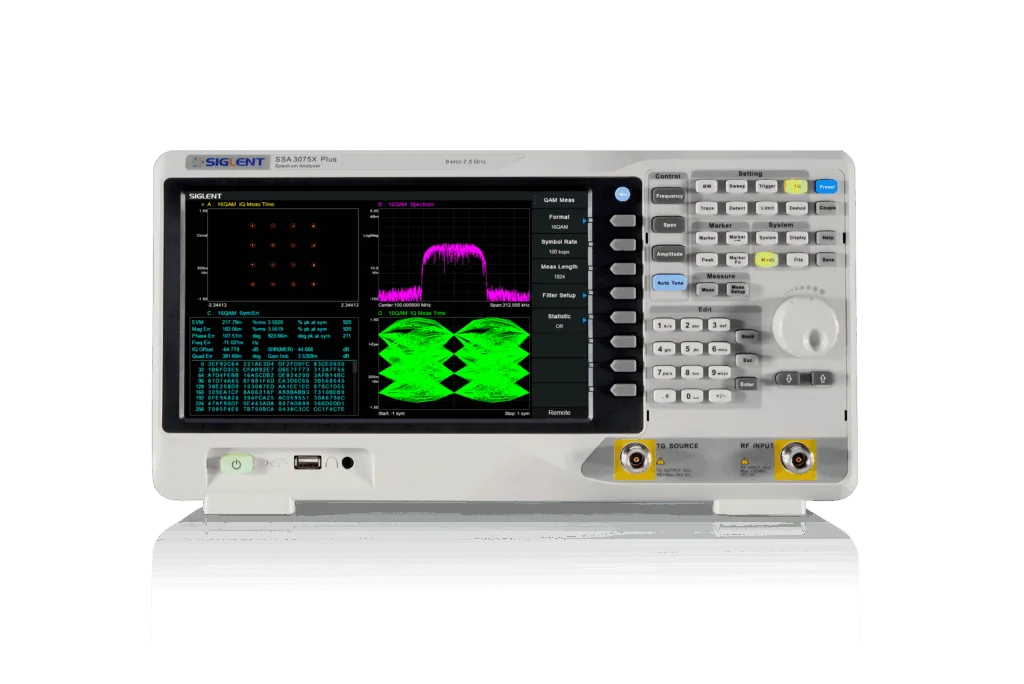

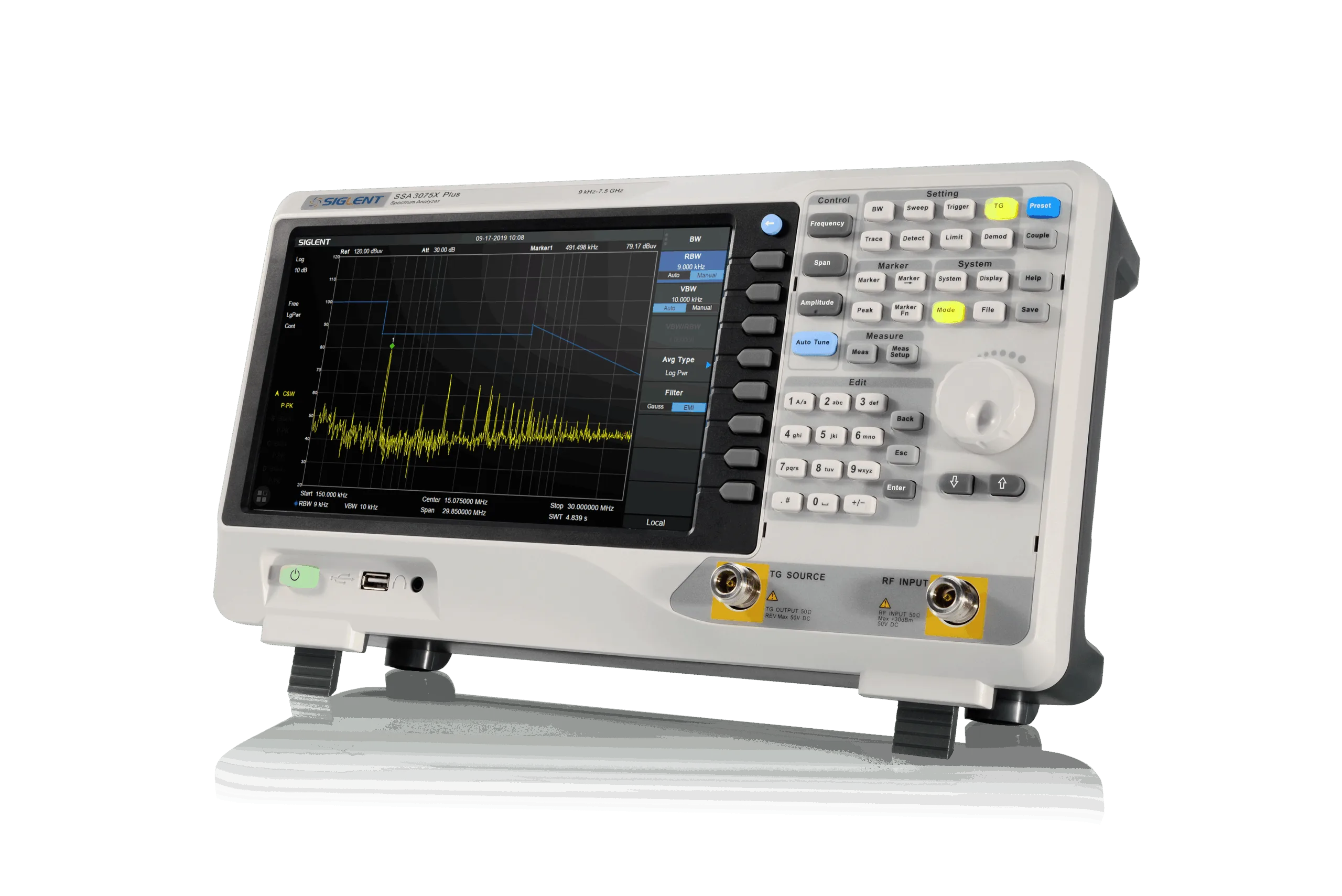

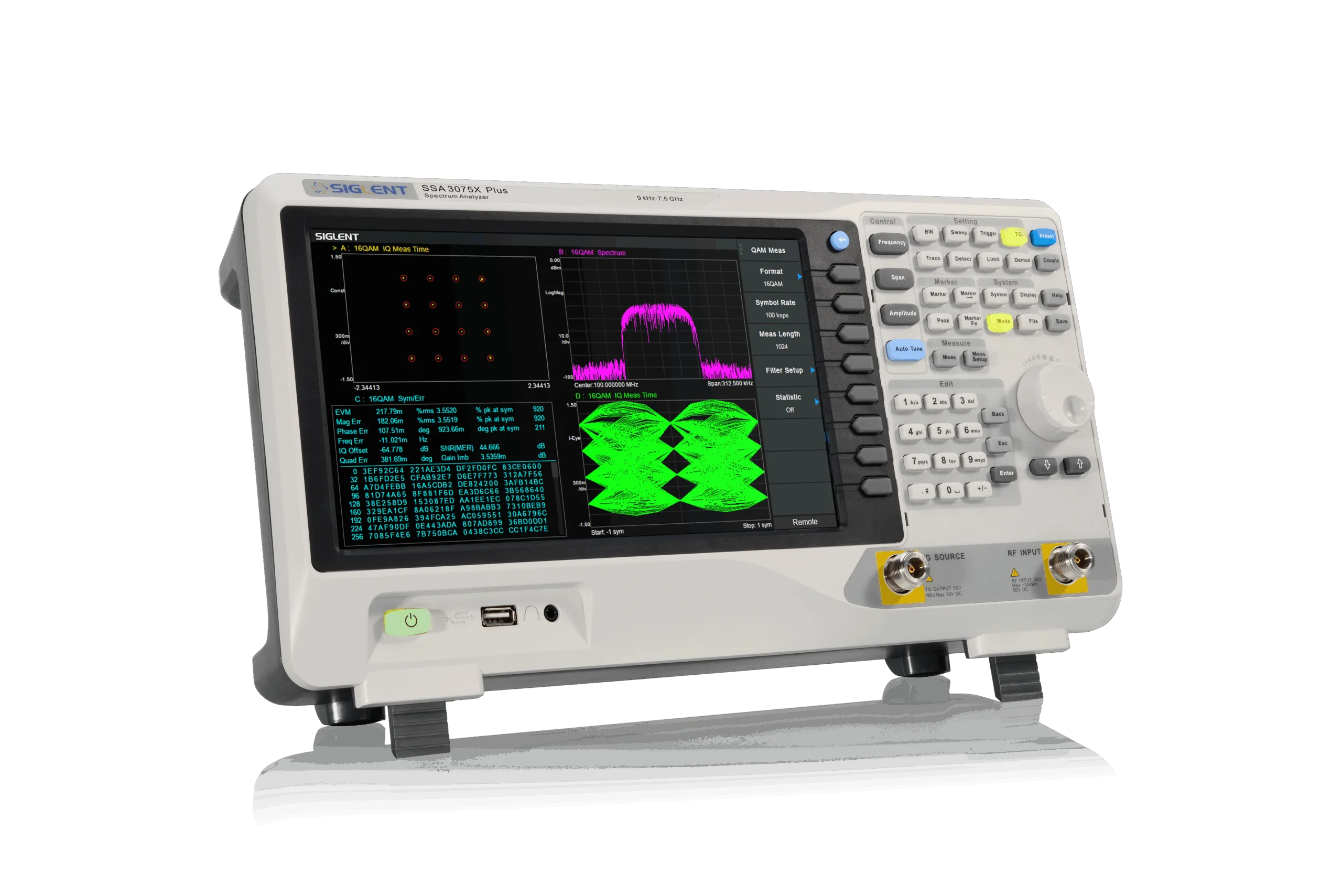

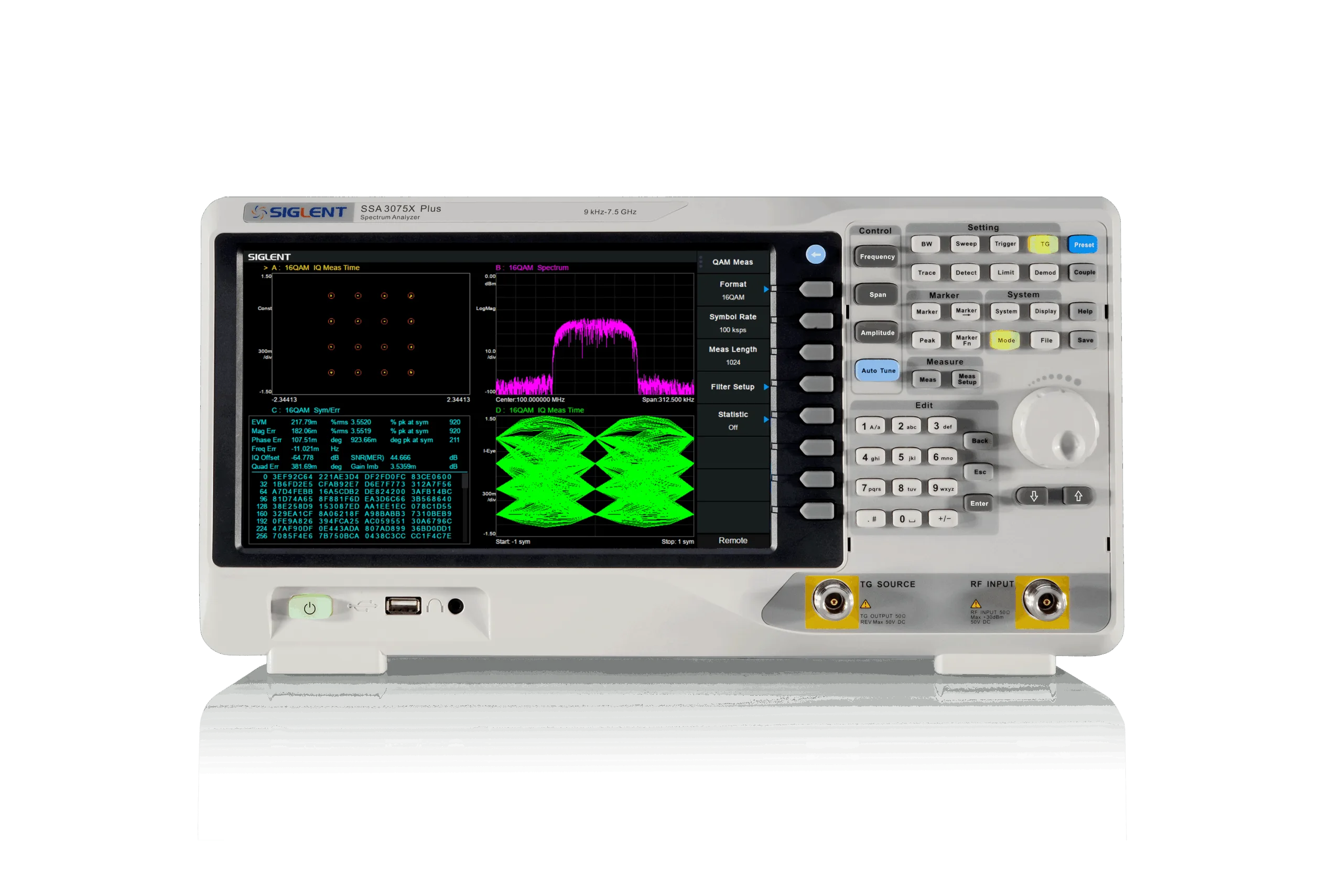

SSA3075X Plus

Description

The SSA3075X Plus by Siglent operates over a frequency range from 9 kHz to 7.5 GHz, providing a maximum frequency of 7,500 MHz and a minimum frequency of 9,000 Hz. It features a phase noise level of less than -98 dBc/Hz, ensuring precise signal analysis. The device offers a resolution bandwidth (RBW) adjustable from 1 Hz to 1 MHz, allowing for detailed frequency resolution. Its minimum displayed average noise level (DANL) is -165 dBm/Hz, which supports the detection of very low-level signals. The total amplitude accuracy is maintained below 0.7 dB, contributing to reliable amplitude measurements. The instrument is equipped with a 10.1-inch WVGA touch screen with a resolution of 1024 by 600 pixels, facilitating user interaction and control. Additionally, the analysis bandwidth is set at 1 MHz, supporting various signal analysis applications. This model is not handheld and does not include real-time spectrum analysis capabilities.

Additional information

9KHz-7.5GHz, Phase Noise
