MS2850A-046

Signal Analyser 9kHz to 44,5GHz

Article no. MS2850A-046

Frequency Max: 44500 MHz
Frequency min: 9000 Hz
Handheld: No
Analysis Bandwidth: 1000 MHz

All specifications

Price on request

The price depends on configuration and options. Tell us what you need and you get a quote within one working day.

Call +41 (0)31 312 48 48

Personal offer from our team in Biel/Bienne
Calibration & repair at our lab

Overview

Description

44500 MHz frequency max
9000 Hz frequency min
1000 MHz analysis bandwidth
-142 dBm/Hz danl

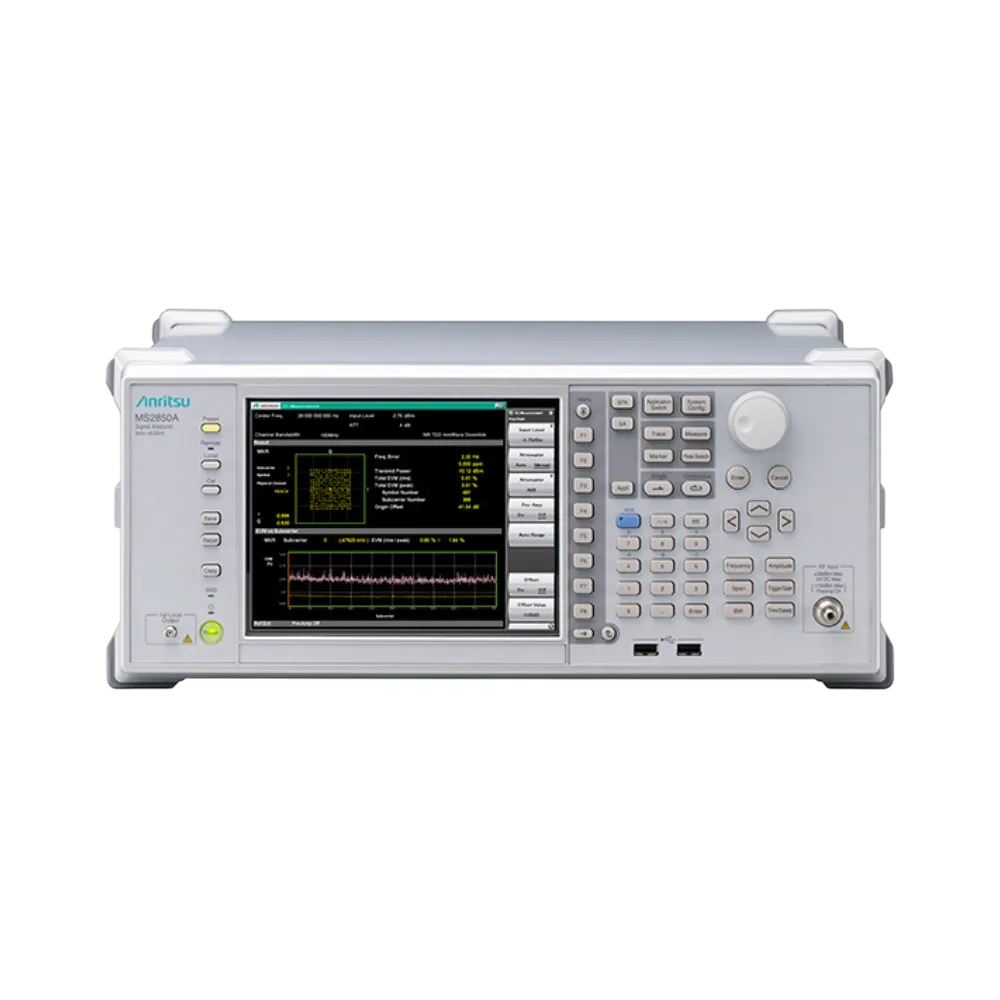

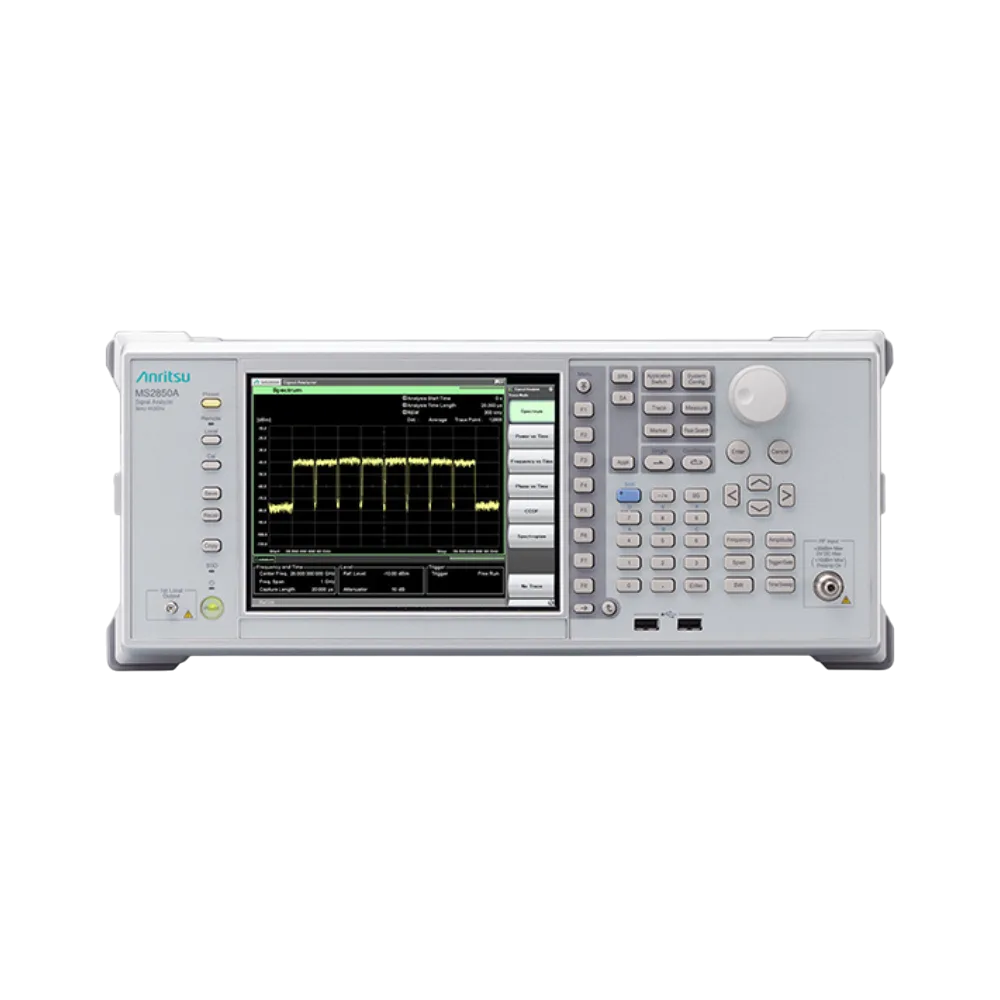

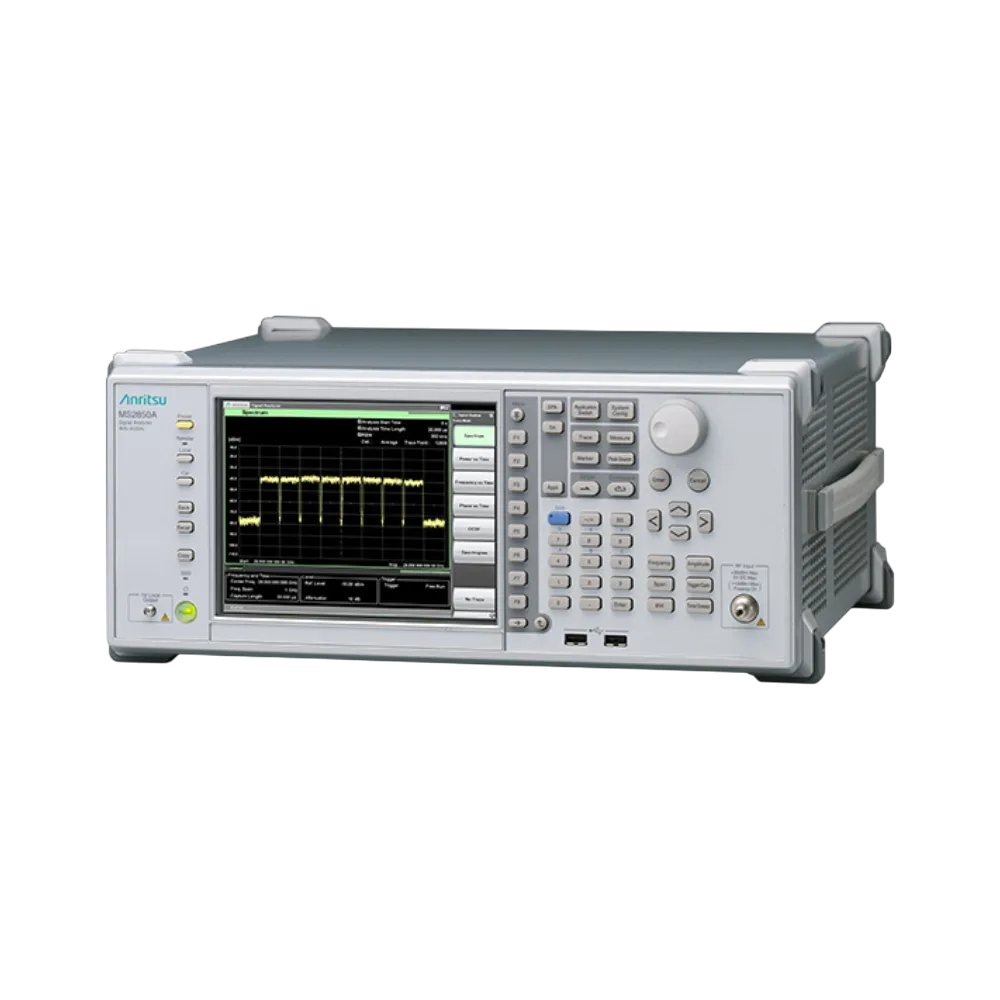

The Anritsu MS2850A-046 is a signal analyser designed to operate within a frequency range of 9 kHz to 44.5 GHz, providing extensive coverage for various signal analysis applications. It features a phase noise specification of -130 dBc/Hz, which is critical for assessing signal purity and stability. The device supports an analysis bandwidth of 1000 MHz, allowing for detailed examination of signal components within this range. Its displayed noise level, or DANL, is rated at -142 dBm/Hz, indicating the sensitivity of the analyser in detecting low-level signals. The maximum frequency capability extends up to 44,500 MHz, while the minimum frequency starts at 9,000 Hz, ensuring versatility across a broad spectrum. This model is not handheld, implying it is intended for benchtop or fixed installation use. The MS2850A-046 does not include real-time spectrum analysis (RTSA) functionality. These specifications make the Anritsu MS2850A-046 suitable for precise and comprehensive signal analysis tasks across a wide frequency range.

Video MS2850A-046

Technical data
