T3DSO2104HD
100 MHz, 2 GS/s interleaved, 4 CH, 200 Mpts/Ch interleaved, Fully Loaded DSO
Article no.
T3DSO2104HD
- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 1000 MS/s
- Memory Depht
- 100 Mpts
CHF 4'032.13
incl. 8.1% VAT · CHF 3'730.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 100 MHz bandwidth
- 1000 MS/s sampling rate
- 100 Mpts memory depht
- 12 Bits vertical resolution

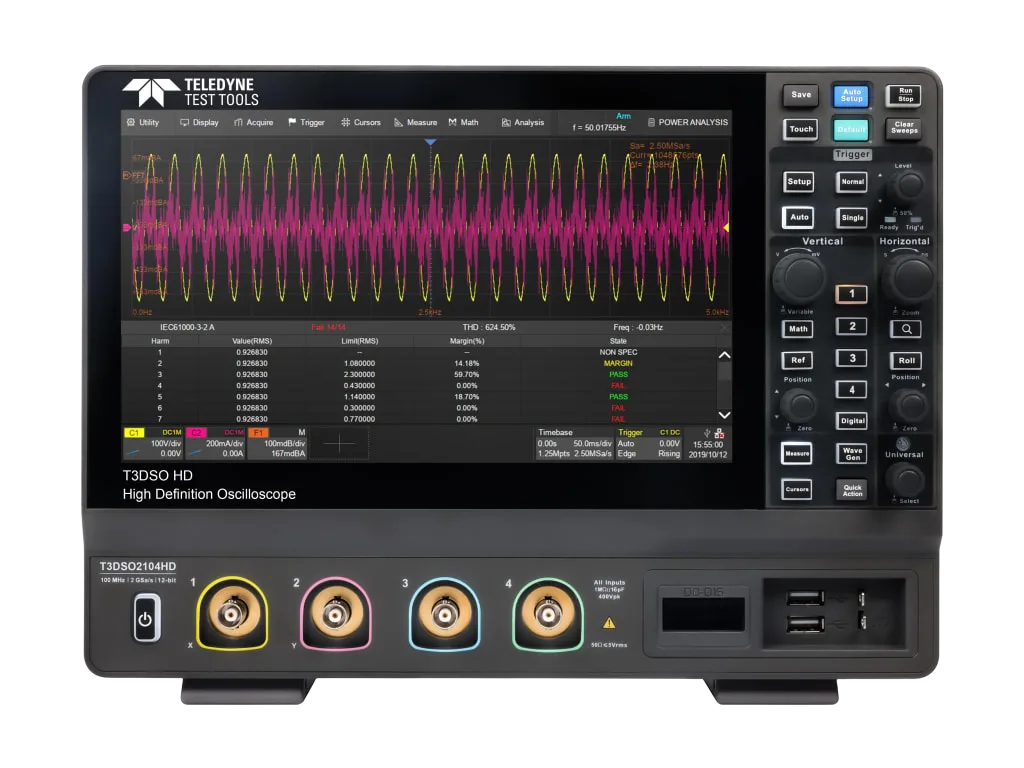

The Teledyne Lecroy T3DSO2104HD is a fully loaded digital storage oscilloscope featuring four channels with a bandwidth of 100 MHz. It offers an interleaved sampling rate of 2 GS/s and a per-channel sampling rate of 1000 MS/s, allowing for detailed signal analysis. Each channel is equipped with a memory depth of 200 Mpts when interleaved and 100 Mpts individually, providing ample storage for capturing long waveform records. The device has a vertical resolution of 12 bits, enhancing the precision of signal measurements. It includes a touch screen interface for user-friendly operation and does not support digital channels. This oscilloscope is designed to handle complex signal acquisition tasks with its combination of high sampling rates, deep memory, and multiple channels.
Video
T3DSO2104HD
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 1000 MS/s
- Memory Depht
- 100 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- No
- Touch Screen
- Yes
- Imax AC
