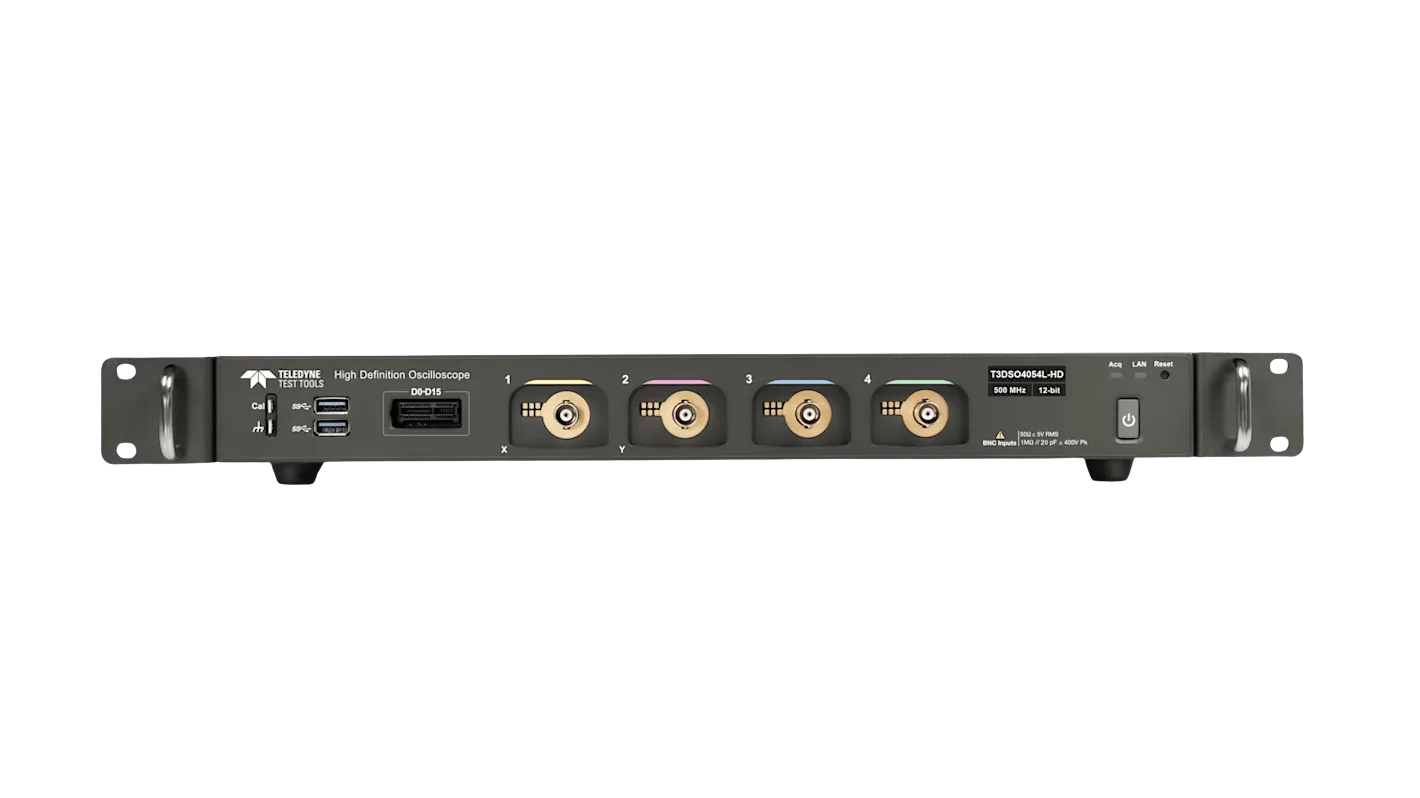

T3DSO4054L-HD
500 MHz, 10 GS/s ESR, 4 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope
Article no.
T3DSO4054L-HD
- Channels
- 4
- Bandwidth
- 500 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 125 Mpts
CHF 18'533.75
incl. 8.1% VAT · CHF 17'145.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 500 MHz bandwidth
- 10000 MS/s sampling rate
- 125 Mpts memory depht
- 12 Bits vertical resolution
The Teledyne Lecroy T3DSO4054L-HD oscilloscope features a bandwidth of 500 MHz and offers a sampling rate of 10 GS/s per channel across its four channels. Each channel is equipped with a memory depth of 500 Mpts, allowing for extensive data capture and analysis. The device provides a vertical resolution of 12 bits, supporting high-definition signal representation. It has a low profile design and does not include a touch screen interface. The memory depth per channel is specified as 125 Mpts, which contributes to its capability to handle detailed waveform data. This oscilloscope is designed to deliver precise measurements with its 12-bit vertical resolution and high sampling rate, making it suitable for various signal analysis applications.
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 500 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 125 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- No
- Imax AC
