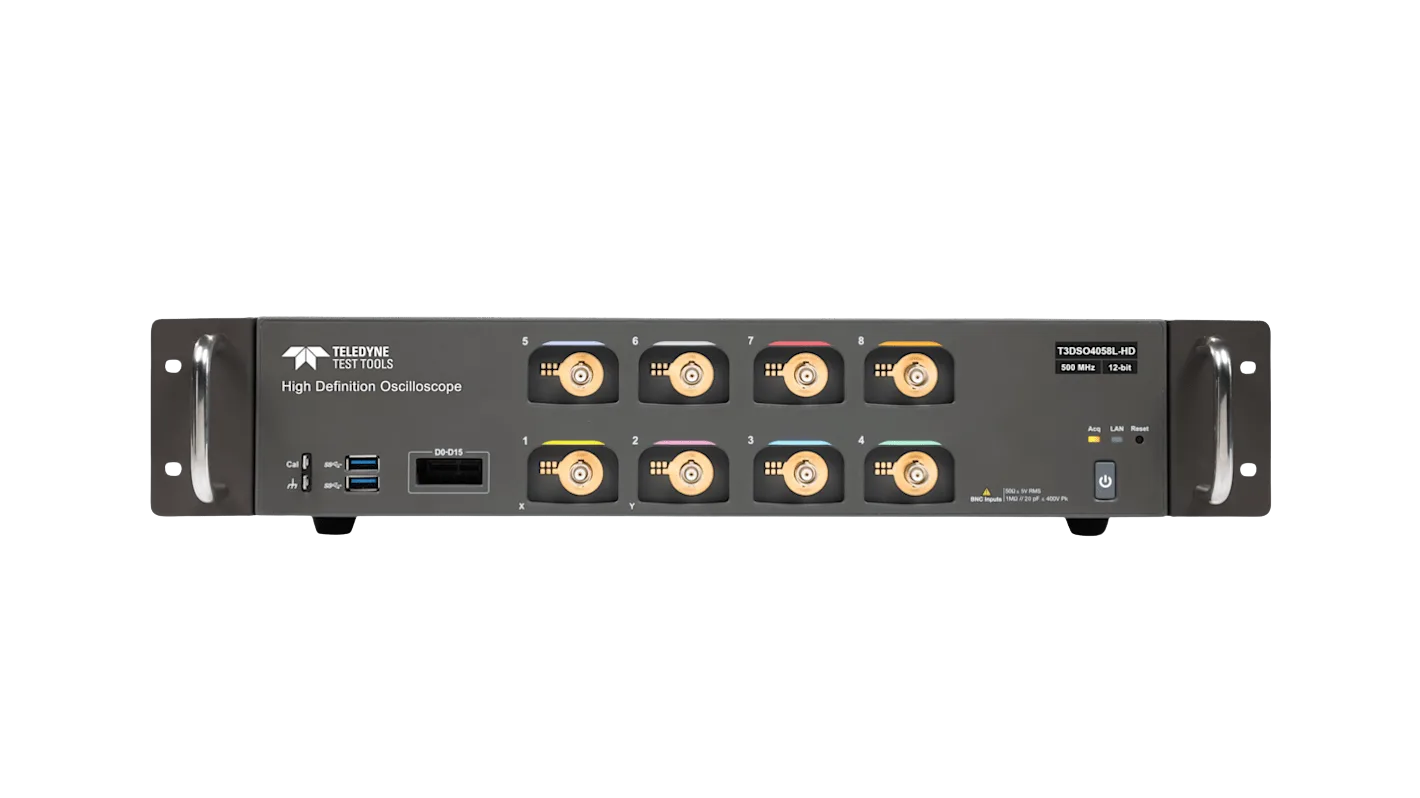

T3DSO4058L-HD
500 MHz, 10 GS/s ESR, 8 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope
Article no.
T3DSO4058L-HD
- Channels
- 8
- Bandwidth
- 500 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 125 Mpts
CHF 34'267.70
incl. 8.1% VAT · CHF 31'700.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 8 channels
- 500 MHz bandwidth
- 10000 MS/s sampling rate
- 125 Mpts memory depht
- 12 Bits vertical resolution
The Teledyne Lecroy T3DSO4058L-HD oscilloscope features a bandwidth of 500 MHz and supports a sampling rate of 10 GS/s per channel. It is equipped with 8 channels, each capable of handling up to 500 million points of memory depth, allowing for detailed signal analysis. The device offers a vertical resolution of 12 bits, providing high-definition signal representation. This low-profile oscilloscope is designed to capture and analyze signals with precision, supporting a memory depth of 125 million points. It does not include a touch screen interface. The combination of its high sampling rate and extensive memory depth makes it suitable for complex waveform capture and analysis across multiple channels simultaneously.
Technical data
Specifications
8- Channels
- 8
- Bandwidth
- 500 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 125 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- No
- Imax AC
