T3DSOH1202
200 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO, 5.6" Color Display
Article no.
T3DSOH1202
- Channels
- 2
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 12 Mpts
CHF 2'832.22
incl. 8.1% VAT · CHF 2'620.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 200 MHz bandwidth
- 500 MS/s sampling rate
- 12 Mpts memory depht
- 8 Bits vertical resolution

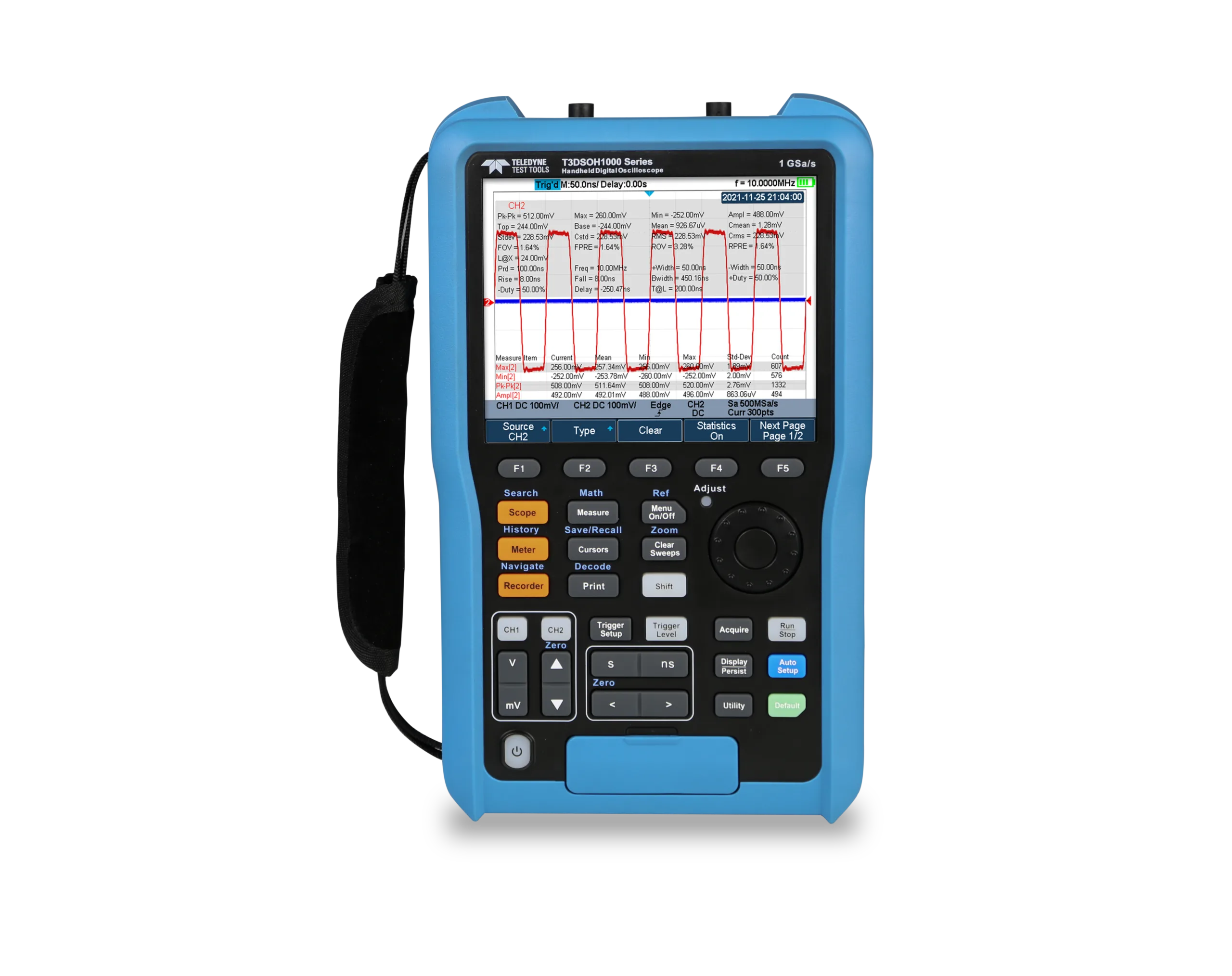

The Teledyne Lecroy T3DSOH1202 features a bandwidth of 200 MHz and supports a sampling rate of 500 MS/s per channel. It is equipped with two channels, each offering a memory depth of 12 million points, allowing for detailed signal capture and analysis. The device has an 8-bit vertical resolution, providing precise measurement capabilities. This handheld digital storage oscilloscope includes a 5.6-inch color display, facilitating clear visualization of waveforms and data. It operates as a single-channel device with a maximum sampling rate of 1 GS/s. The oscilloscope does not include digital channels or a touch screen interface. Its design supports efficient data acquisition and analysis for various electronic testing applications.
Technical data
Specifications
8- Channels
- 2
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 12 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- No
- Touch Screen
- No
- Imax AC
