HDO4034A
350 MHz, 10 GS/s, 4 Ch, 12.5 Mpts/Ch, 12-Bit HD Oscilloscope with 12.1" WXGA Color Display
Article no.
HDO4034A
- Channels
- 4
- Bandwidth
- 350 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 25 Mpts
CHF 20'614.67
incl. 8.1% VAT · CHF 19'070.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 350 MHz bandwidth
- 10000 MS/s sampling rate
- 25 Mpts memory depht
- 12 Bits vertical resolution

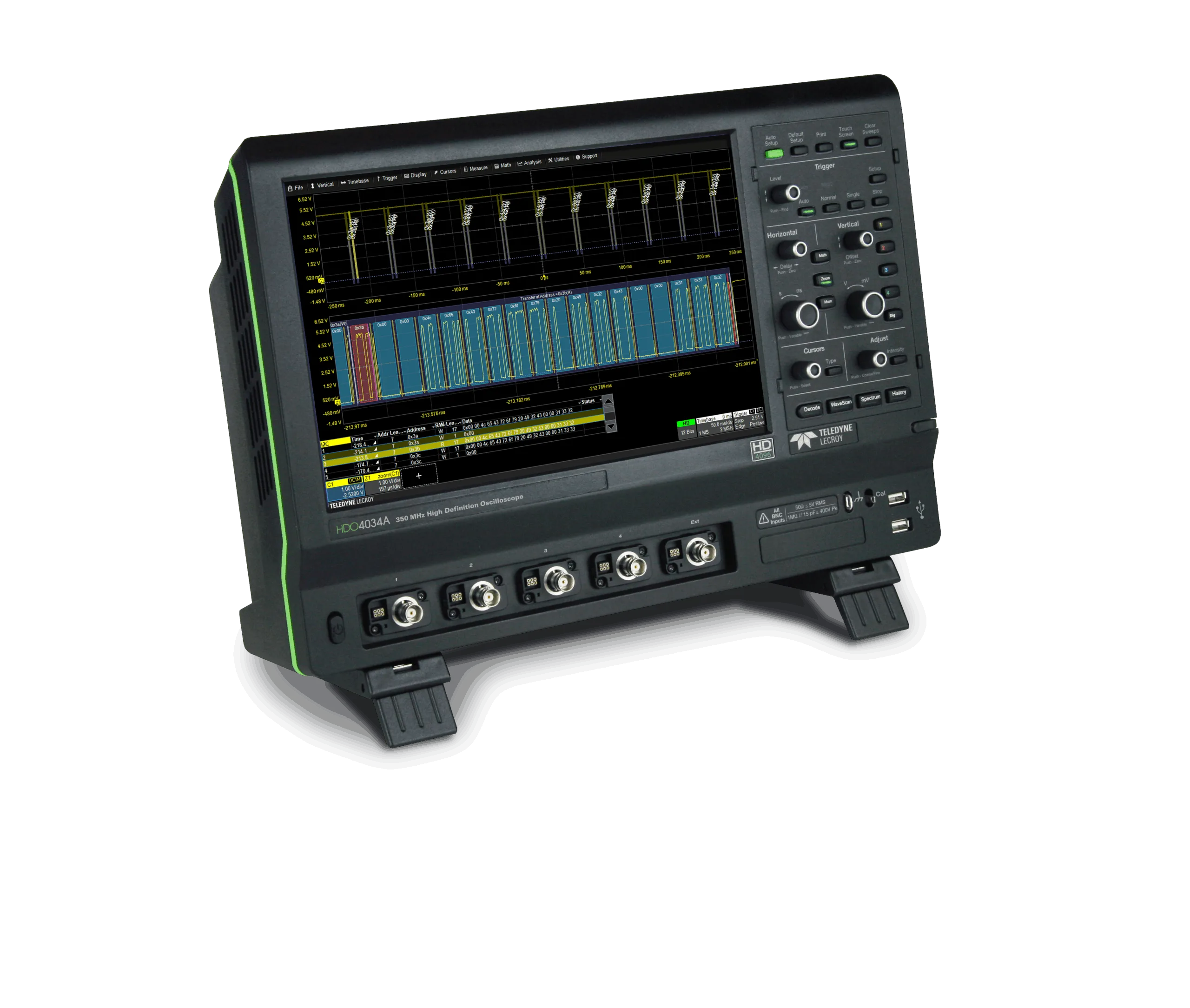

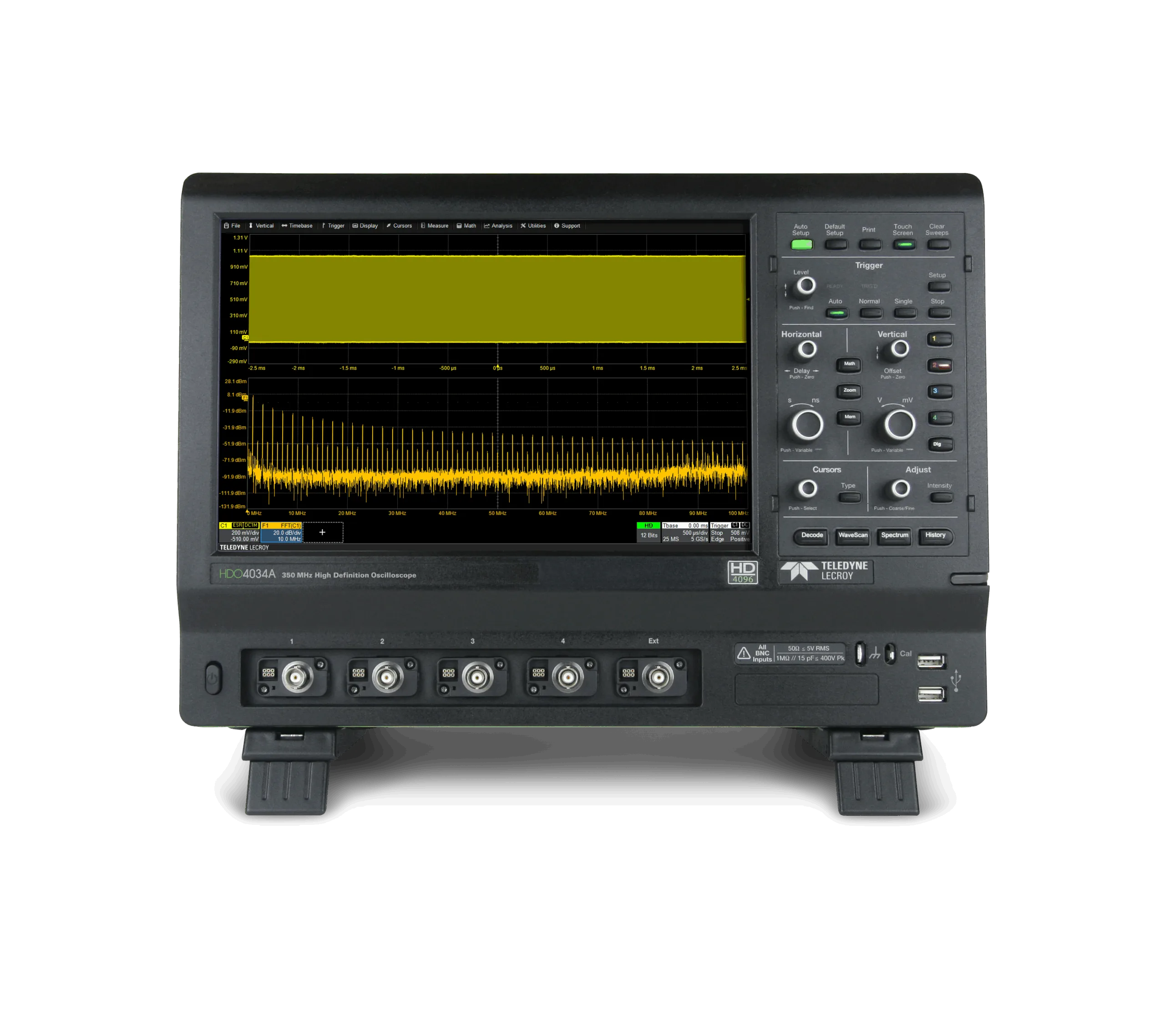

The Teledyne Lecroy HDO4034A is a high-definition oscilloscope featuring a bandwidth of 350 MHz and a sampling rate of 10 GS/s across its four channels. Each channel is equipped with a memory depth of 12.5 million points, allowing for detailed signal capture and analysis. The device offers a vertical resolution of 12 bits, enhancing the precision of waveform measurements. It includes a 12.1-inch WXGA color display with touch screen functionality, providing an intuitive interface for users. The total memory depth across all channels is 25 million points, supporting extensive data acquisition. This oscilloscope does not include digital channels but is designed to handle analog signals with high accuracy. Its combination of high sampling rate, substantial memory depth, and advanced display features makes it suitable for complex signal analysis tasks.
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 350 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 25 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- No
- Touch Screen
- Yes
- Imax AC
