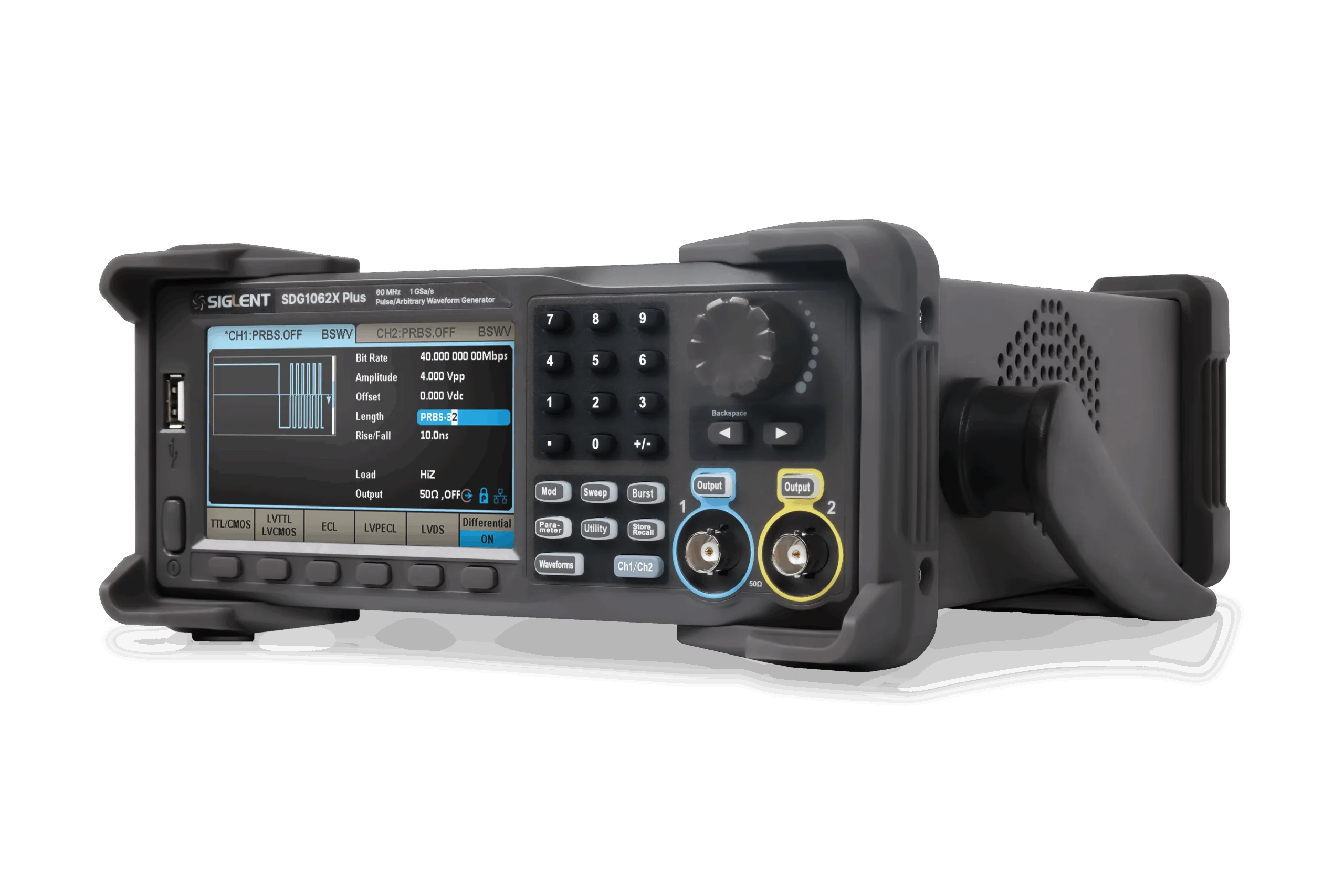

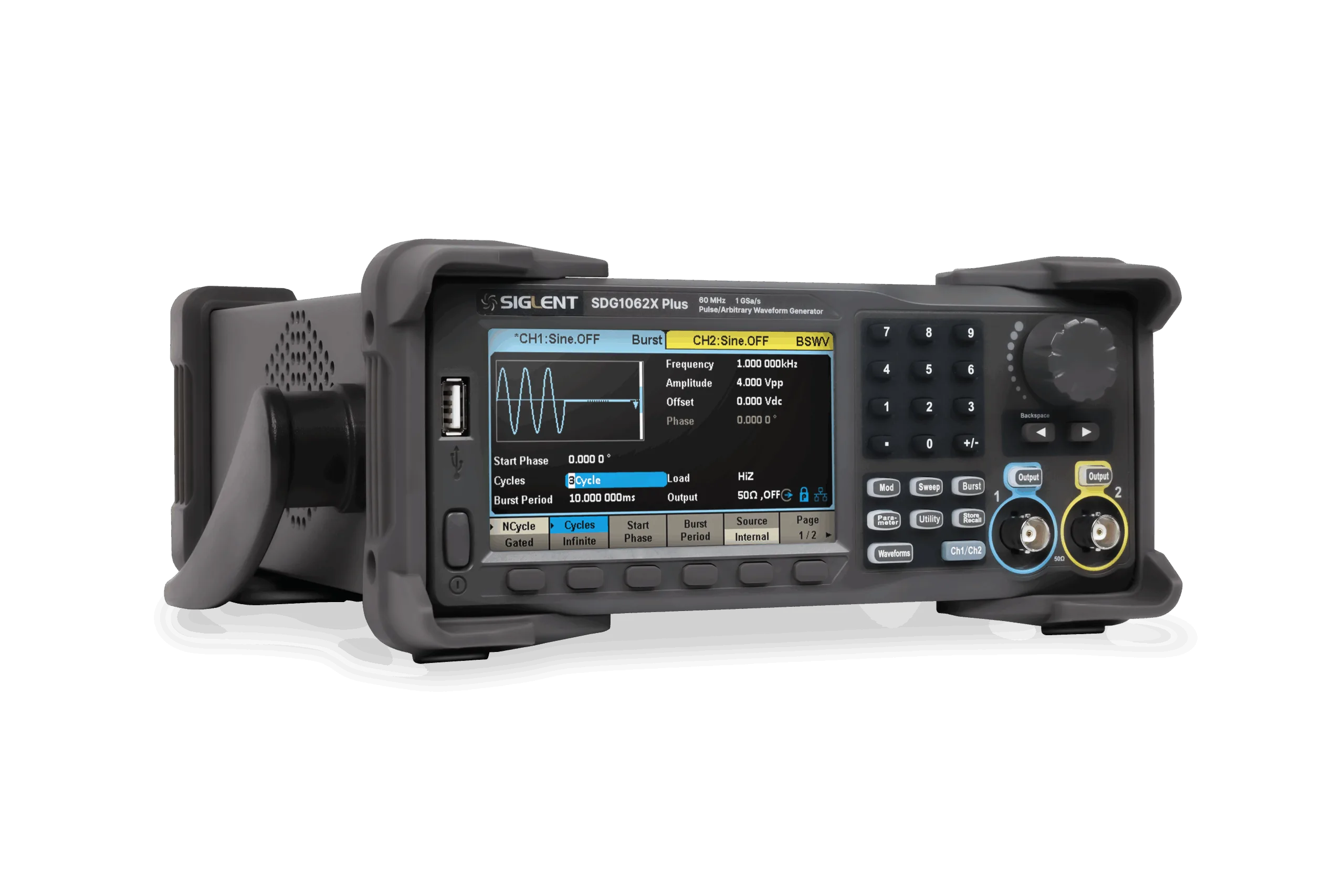

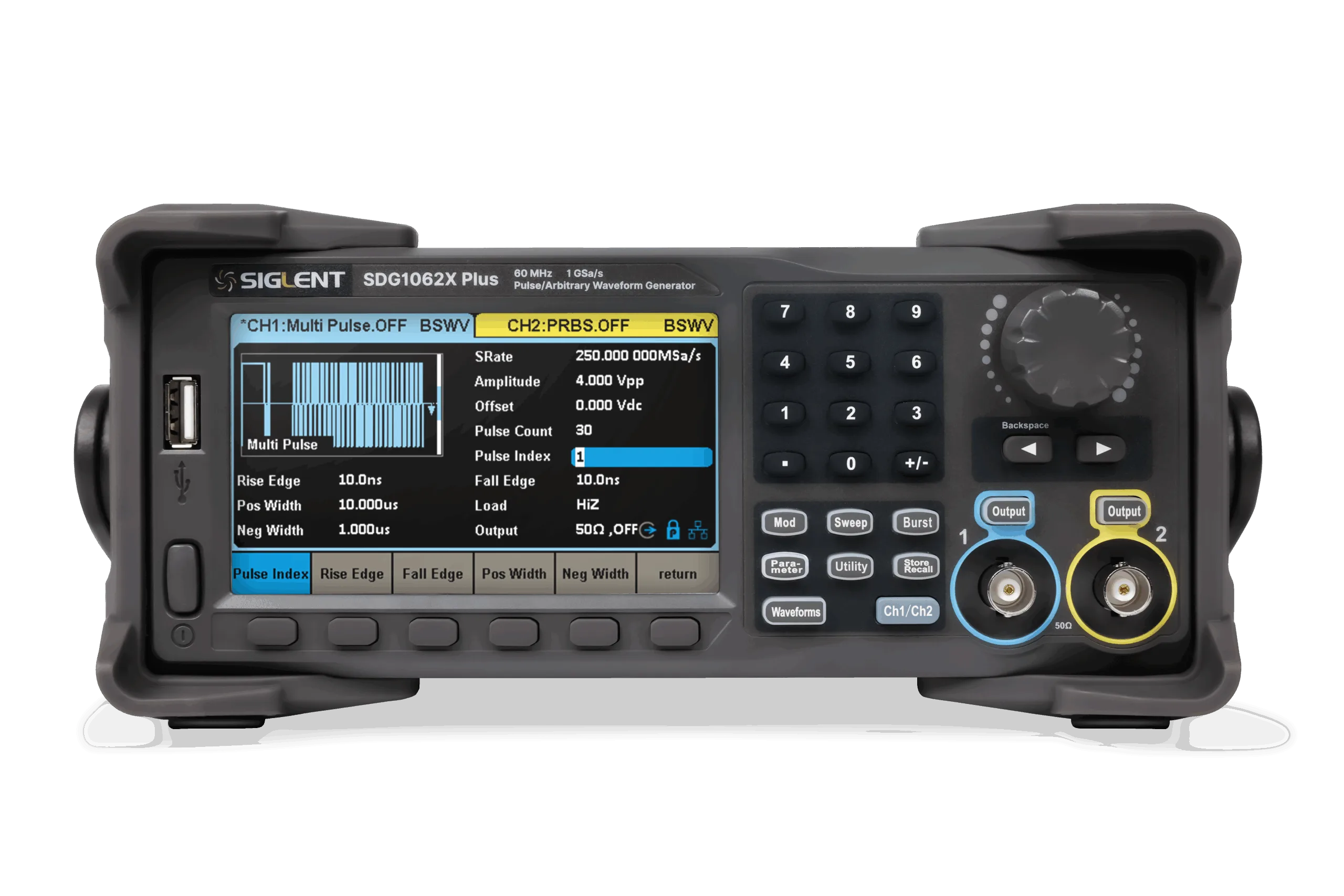

SDG1062X Plus
60 MHz 2 CH AWG; 1 GSa/s sampling rate; 16-bits vertical resolution; 8 Mpts/CH Arbitrary waveform length; ±10 V Max. amplitude;
Article no.
SDG1062X Plus
- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 60 MHz
- Amplitude
- 10 V
CHF 481.73
incl. 8.1% VAT · CHF 445.63 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 16 Bits vertical resolution
- 60 MHz frequency
- 10 V amplitude
- Sweep
The SDG1062X Plus by Siglent is a 60 MHz arbitrary waveform generator featuring two channels and a maximum amplitude of ±10 V. It offers a sampling rate of 1 GSa/s and a vertical resolution of 16 bits, ensuring precise waveform generation. Each channel supports an arbitrary waveform length of up to 8 Mpts, allowing for complex signal creation. The device includes sweep and burst functions, enhancing its versatility for various testing scenarios. It operates with a sampling rate of 250 MS/s and has a memory depth of 0.016 Mpts. The minimum transition time is 10 ns, and the minimum pulse width is 19.4 ns, supporting detailed signal shaping. This model is designed to meet the needs of users requiring high-resolution and high-speed arbitrary waveform generation.
Video
SDG1062X Plus
Technical data
Specifications
10- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 60 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 1000 MS/s
- Memory
- 8 MPts
- Transition time min
- 10 ns
- Pulse Width min
- 19.4 ns
