SDG810
10MHz; 1 channel; 125MSa/s; AWG/AFG
Article no.
SDG810
- Channels
- 1
- Vertical Resolution
- 14 Bits
- Frequency
- 10 MHz
- Amplitude
- 10 V
CHF 177.37
incl. 8.1% VAT · CHF 164.08 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1 channels
- 14 Bits vertical resolution
- 10 MHz frequency
- 10 V amplitude
- Sweep

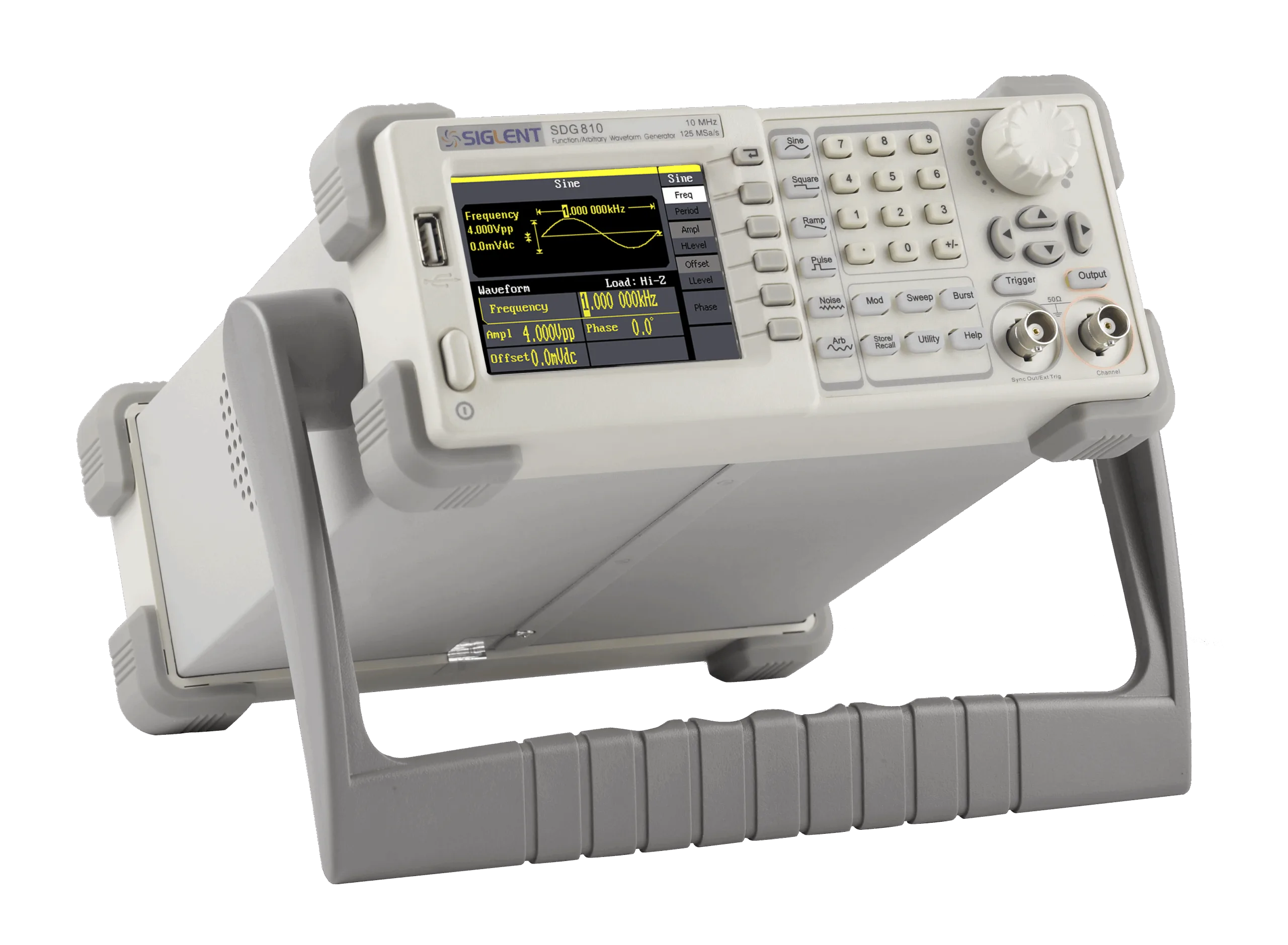

The Siglent SDG810 is a single-channel arbitrary waveform generator with a maximum frequency of 10 MHz. It features a sampling rate of 125 MSa/s, allowing for precise signal generation. The device supports sweep and burst modes, providing versatile waveform output options. Its memory depth is 0.016 Mpts, enabling storage of waveform data for output. The minimum transition time is 20 ns, and the minimum pulse width is 16 ns, which are critical parameters for timing accuracy in signal generation. The amplitude can reach up to 10 V, making it suitable for various testing and measurement applications. This model combines essential features for waveform generation in a compact design.
Technical data
Specifications
10- Channels
- 1
- Vertical Resolution
- 14 Bits
- Frequency
- 10 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 125 MS/s
- Memory
- 0.016 MPts
- Transition time min
- 20 ns
- Pulse Width min
- 16 ns
