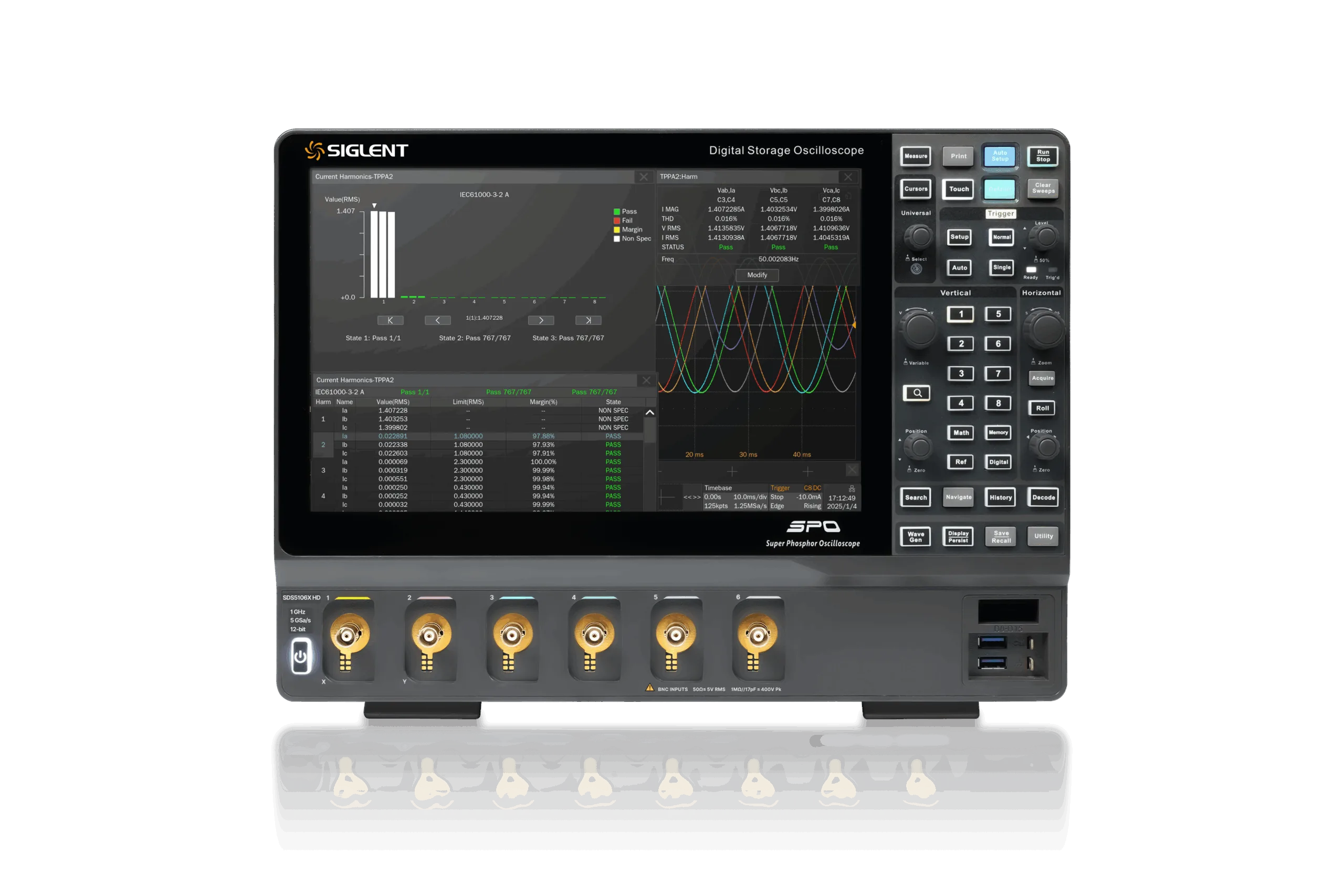

SDS5106X HD

6-ch, 1 GHz, 5 GSa/s, 12-bit, 2.5 Gpts/ch memory depth, 12.1” capacitive touch screen

Article no. SDS5106X HD

Channels: 6
Bandwidth: 1000 MHz
Sampling Rate/Channels: 2500 MS/s
Memory Depht: 2500 Mpts

CHF 15'092.02

incl. 8.1% VAT · CHF 13'961.17 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

6 channels
1000 MHz bandwidth
2500 MS/s sampling rate
2500 Mpts memory depht
12 Bits vertical resolution

The Siglent SDS5106X HD features six channels with a bandwidth of 1 GHz and a sampling rate of 2.5 GSa/s per channel. It offers a vertical resolution of 12 bits and a memory depth of 2.5 million points per channel, allowing for detailed signal analysis. The device is equipped with a 12.1-inch capacitive touch screen, providing an interactive and user-friendly interface. Each channel supports a sampling rate of 2500 MS/s, ensuring high-speed data acquisition. The oscilloscope’s memory depth of 2500 Mpts enables extended waveform capture for thorough examination. This model is designed to handle complex signal measurements across multiple channels simultaneously. The combination of high bandwidth, deep memory, and a large touch screen makes it suitable for various testing and diagnostic applications.

Video SDS5106X HD

Technical data
