SHA862A

9 kHz~7.5 GHz handheld spectrum analyzer， -165 dBm/Hz Displayed Average Noise Level (Typ.), SSB Phase Noise -104 dBc/Hz.@1 GHz, 10 kHz offset，Analysis Bandwidth 40/110 MHz，standard…

Article no. SHA862A

Frequency Max: 7500 MHz
Frequency min: 9000 Hz
Handheld: Yes
Analysis Bandwidth: 110 MHz

CHF 13'076.95

incl. 8.1% VAT · CHF 12'097.09 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

7500 MHz frequency max
9000 Hz frequency min
Handheld
110 MHz analysis bandwidth
-165 dBm/Hz danl

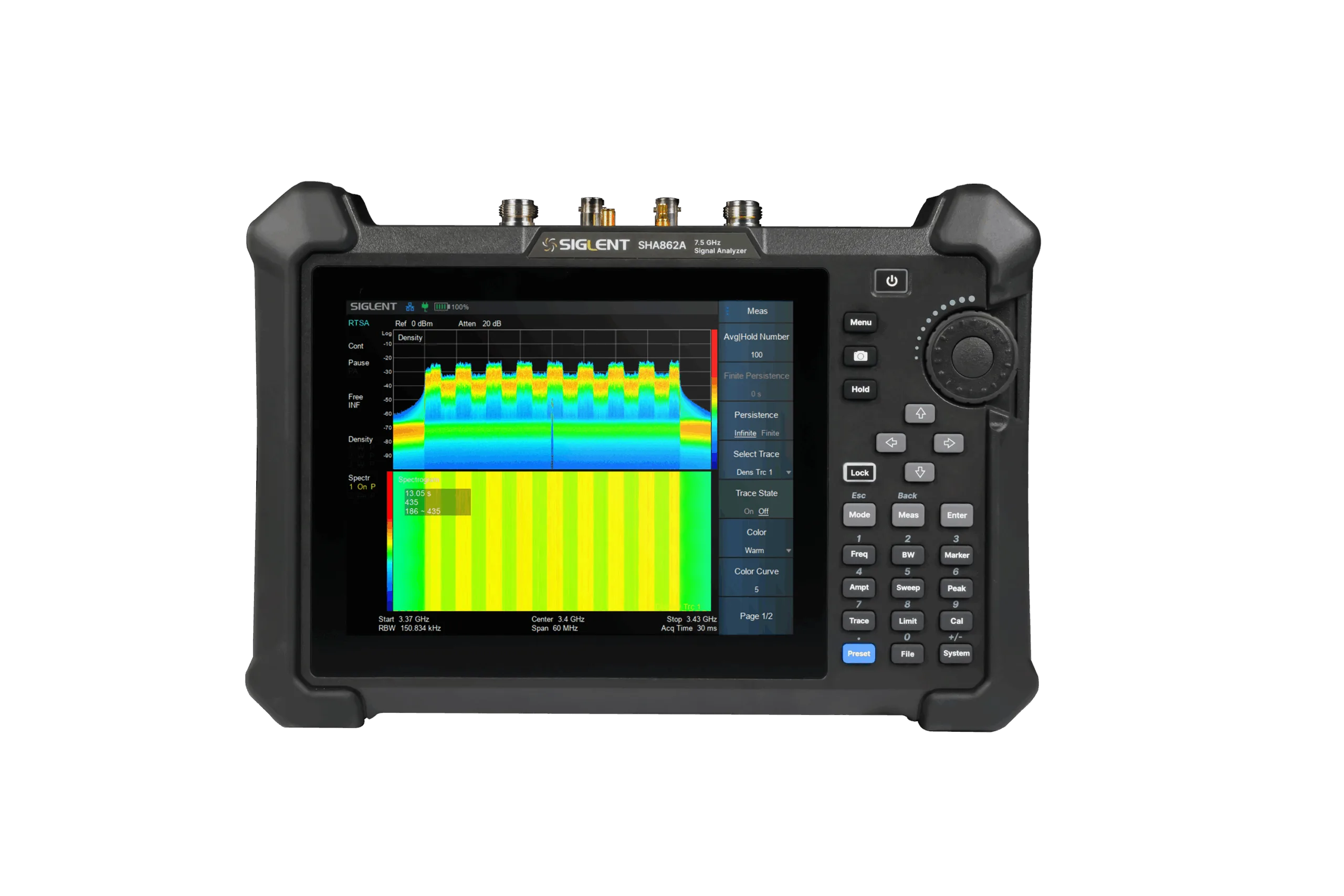

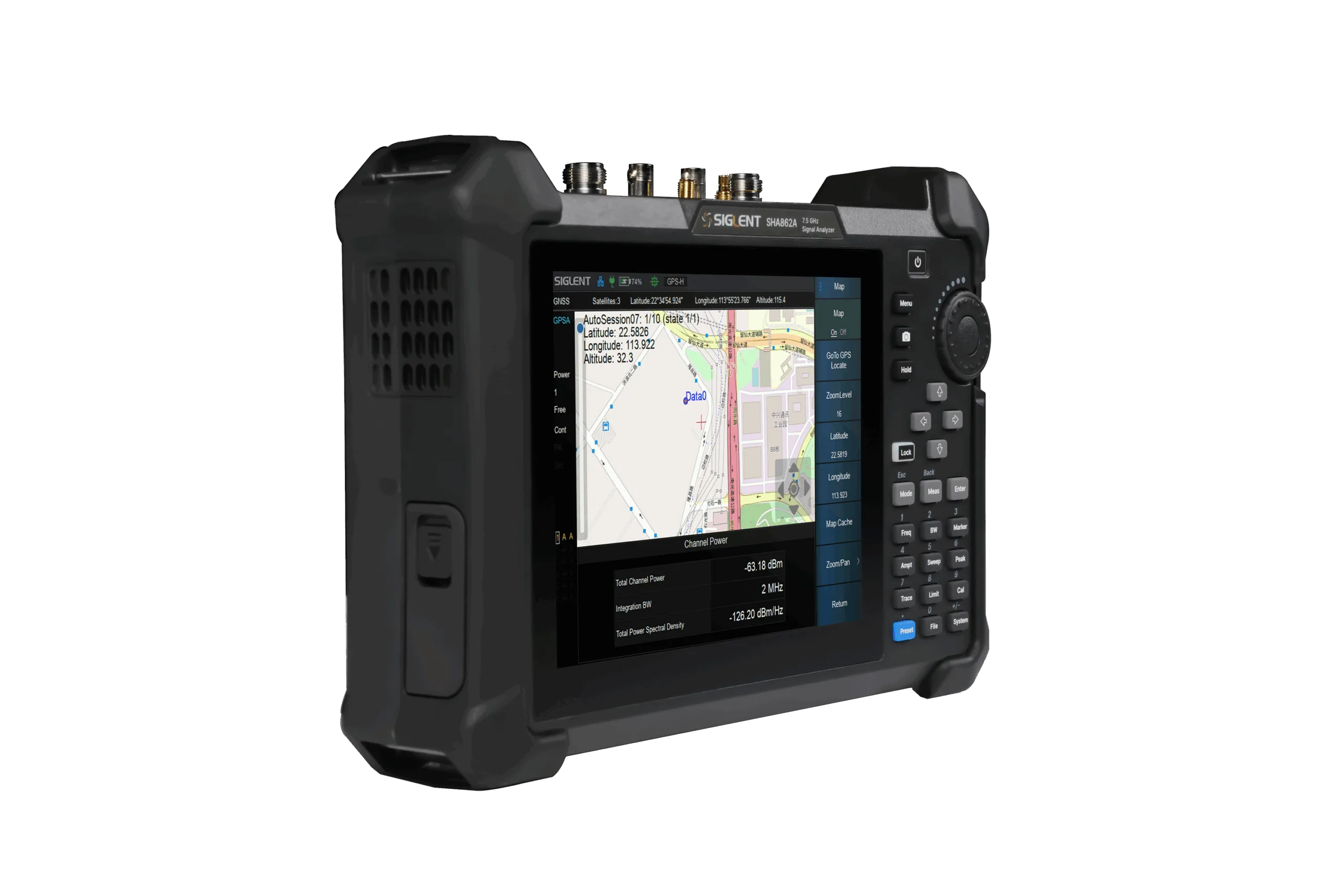

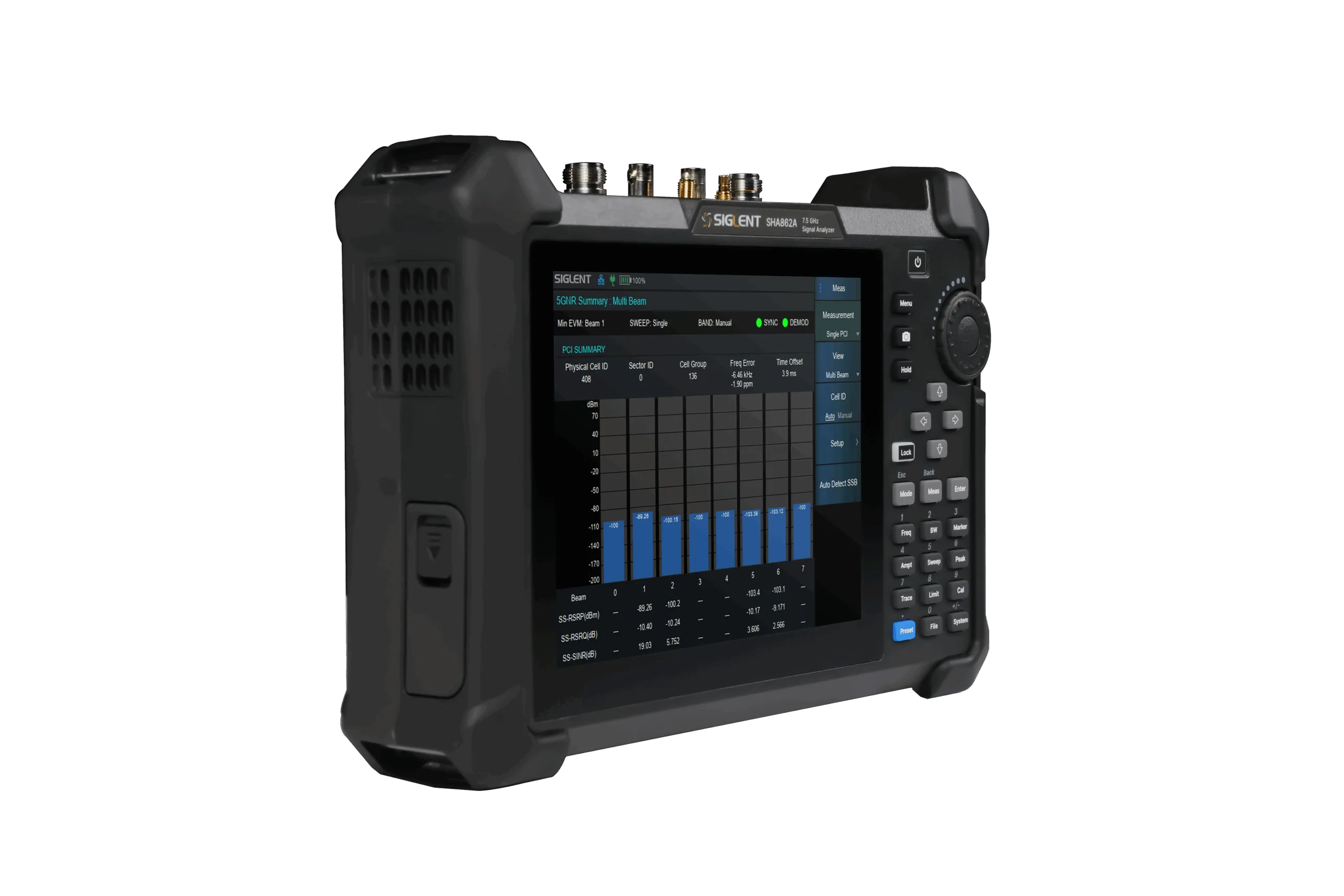

The SHA862A by Siglent is a handheld spectrum analyzer with a frequency range spanning from 9 kHz to 7.5 GHz. It features a displayed average noise level of -165 dBm/Hz, providing detailed signal analysis. The device offers a single sideband (SSB) phase noise of -104 dBc/Hz at 1 GHz with a 10 kHz offset, ensuring precise phase noise measurement. It supports analysis bandwidths of 40 MHz and 110 MHz, allowing for flexible signal examination. The spectrum analyzer includes a standard preamplifier to enhance signal detection capabilities. An 8.4-inch touch screen serves as the user interface, facilitating easy operation and navigation. The unit is designed for portability with a handheld form factor and provides approximately 2.5 hours of working time on a single charge.

Additional information

9 kHz~7.5 GHz handheld spectrum analyzer， -165 dBm/Hz Displayed Average Noise Level (Typ.), SSB Phase Noise -104 dBc/Hz.@1 GHz, 10 kHz offset，Analysis Bandwidth 40/110 MHz，standard preamplifier, 8.4'' touch screen, 2.5 hours working time

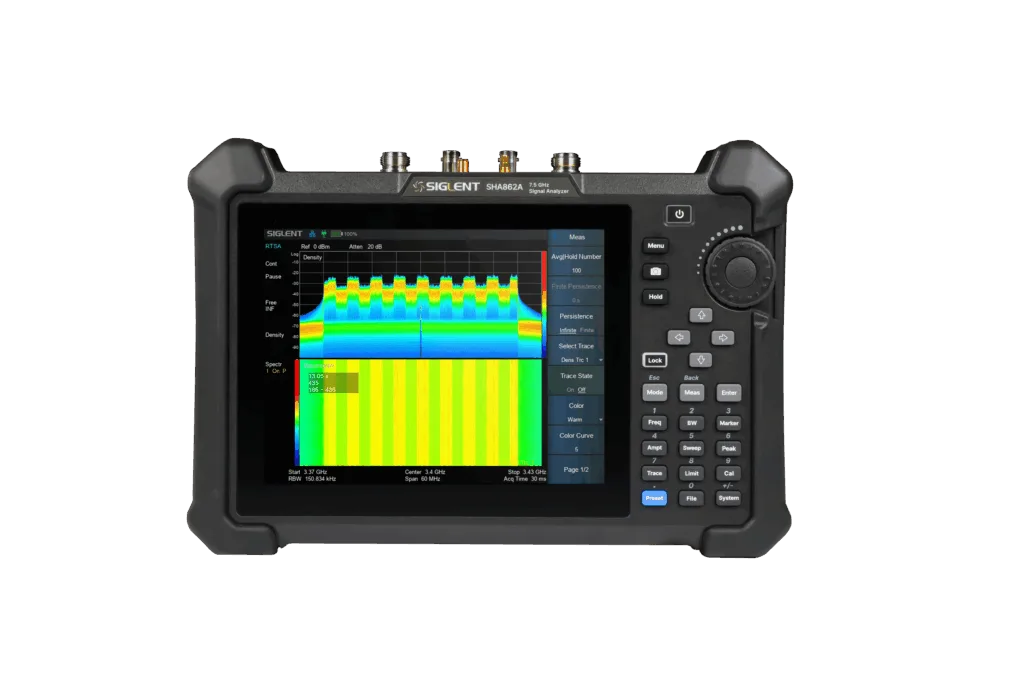

Video SHA862A

Technical data
