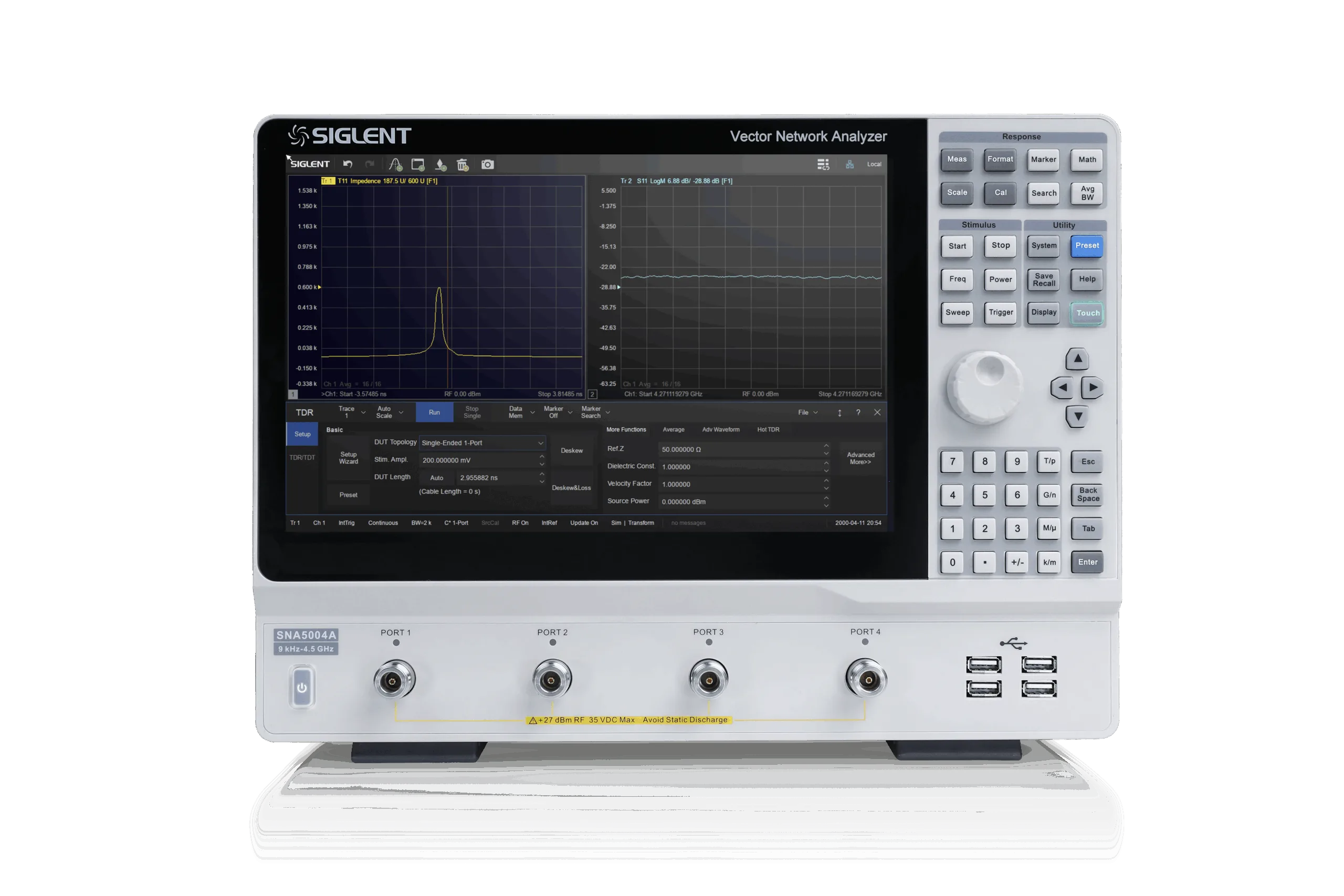

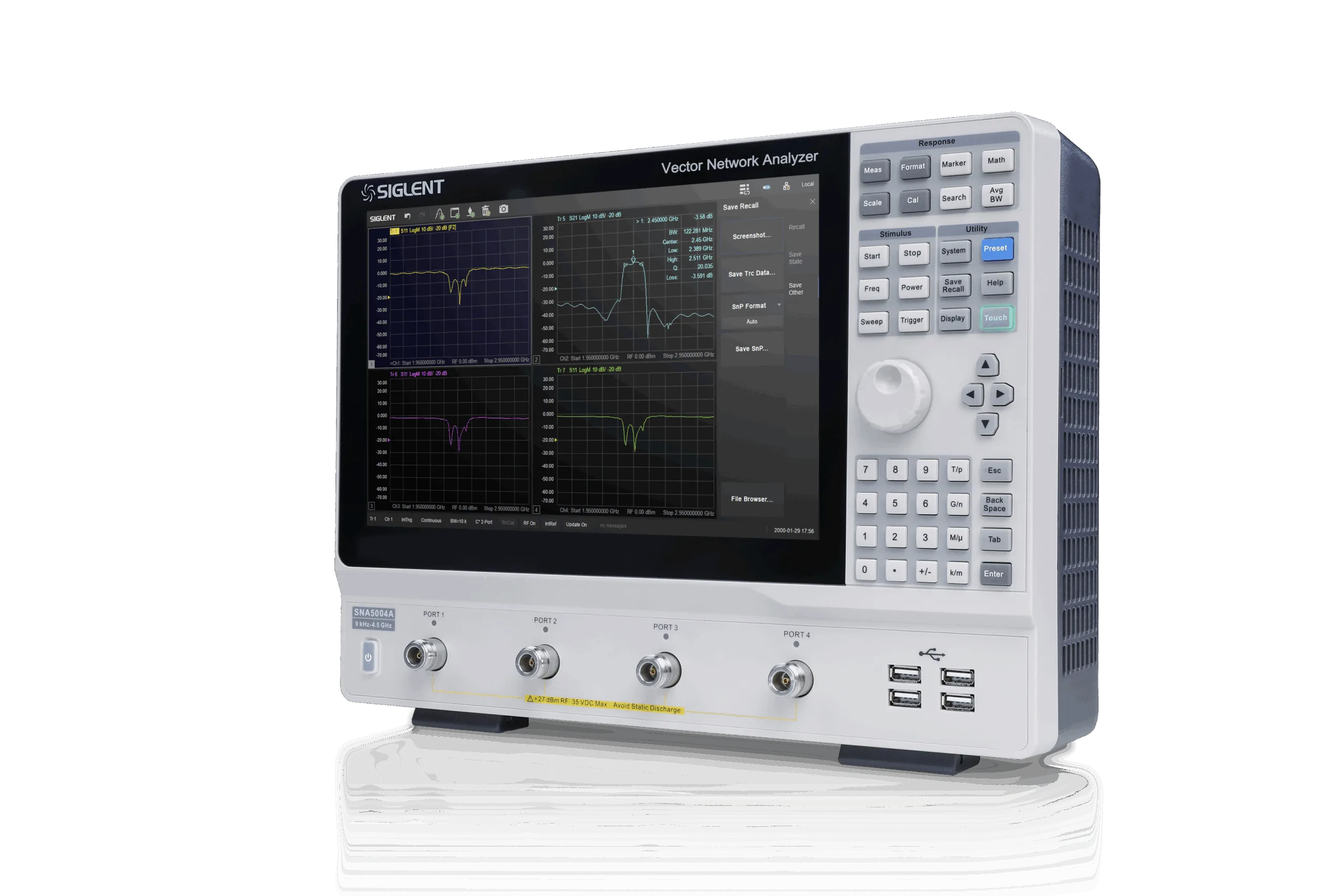

SNA5004A
Frequency Range: 9 kHz~4.5 GHz, 4 ports，Frequencey Resolution 1 Hz, IFBW 10 Hz~3 MHz, Dynamic Range 125 dB, Output Level Range -55 dBm ~ +10 dBm, 12.1'' Touch Screen
Article no.
SNA5004A
- Frequency Max
- 4500 MHz
- Frequency min
- 9000 Hz
- Dynamic Range
- 125 dB
- Ports
- 4
CHF 13'328.84
incl. 8.1% VAT · CHF 12'330.10 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4500 MHz frequency max
- 9000 Hz frequency min
- 125 dB dynamic range
- 4 ports
The Siglent SNA5004A operates within a frequency range of 9 kHz to 4.5 GHz, providing versatile coverage for various signal analysis needs. It features four ports, allowing for multiple input and output configurations. The device offers a frequency resolution of 1 Hz, enabling precise frequency measurements. Its intermediate frequency bandwidth (IFBW) ranges from 10 Hz to 3 MHz, supporting detailed signal filtering and analysis. The dynamic range of the SNA5004A is 125 dB, which facilitates the detection of signals with a wide range of amplitudes. The output level range spans from -55 dBm to +10 dBm, accommodating different signal strength requirements. Additionally, the instrument is equipped with a 12.1-inch touch screen, enhancing user interaction and control. This combination of features makes the SNA5004A suitable for comprehensive signal analysis tasks.
Video
SNA5004A
Technical data
Specifications
5- Frequency Max
- 4500 MHz
- Frequency min
- 9000 Hz
- Dynamic Range
- 125 dB
- Ports
- 4
- Handheld
- No
Presentation
Product presentation
PDFDocuments
