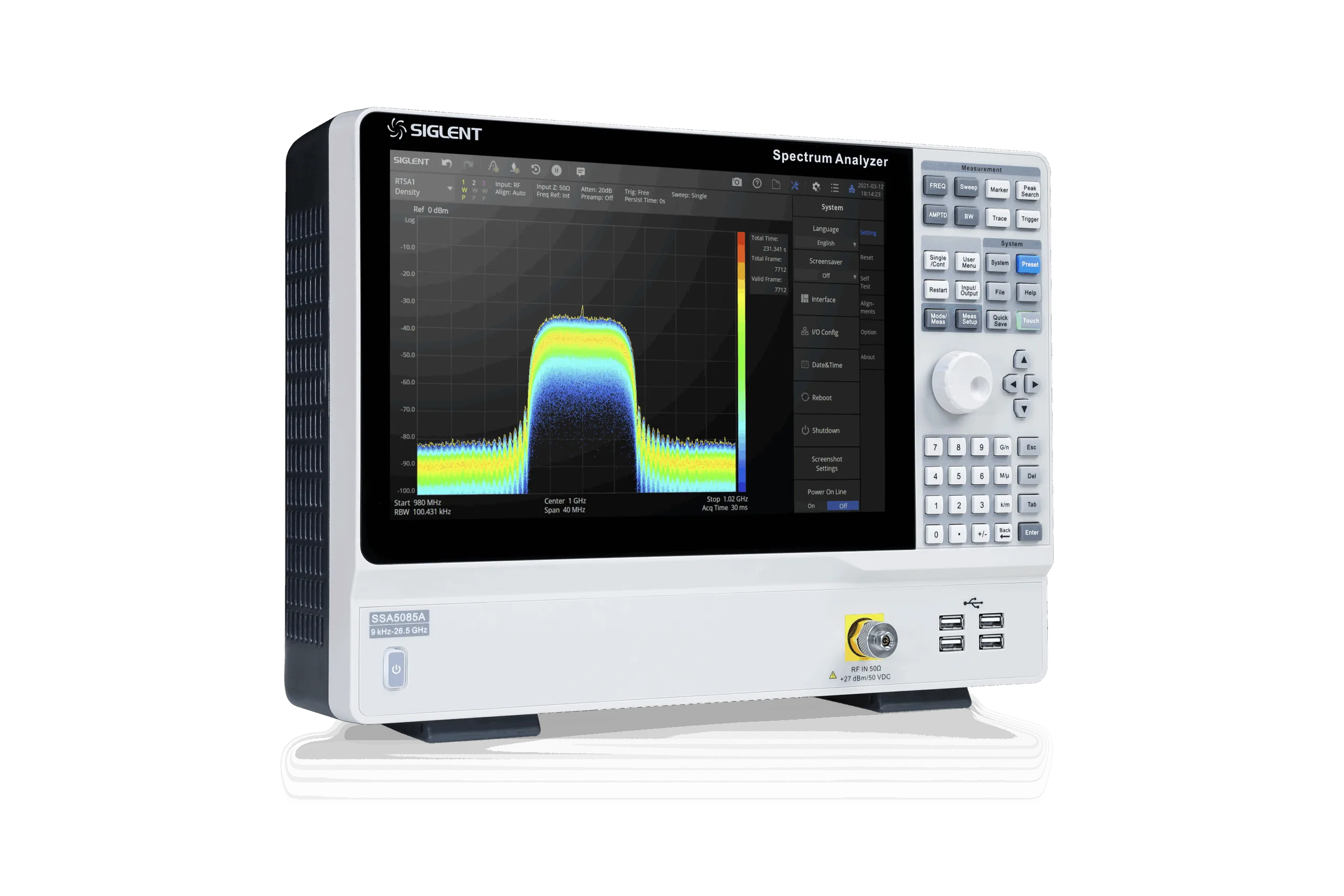

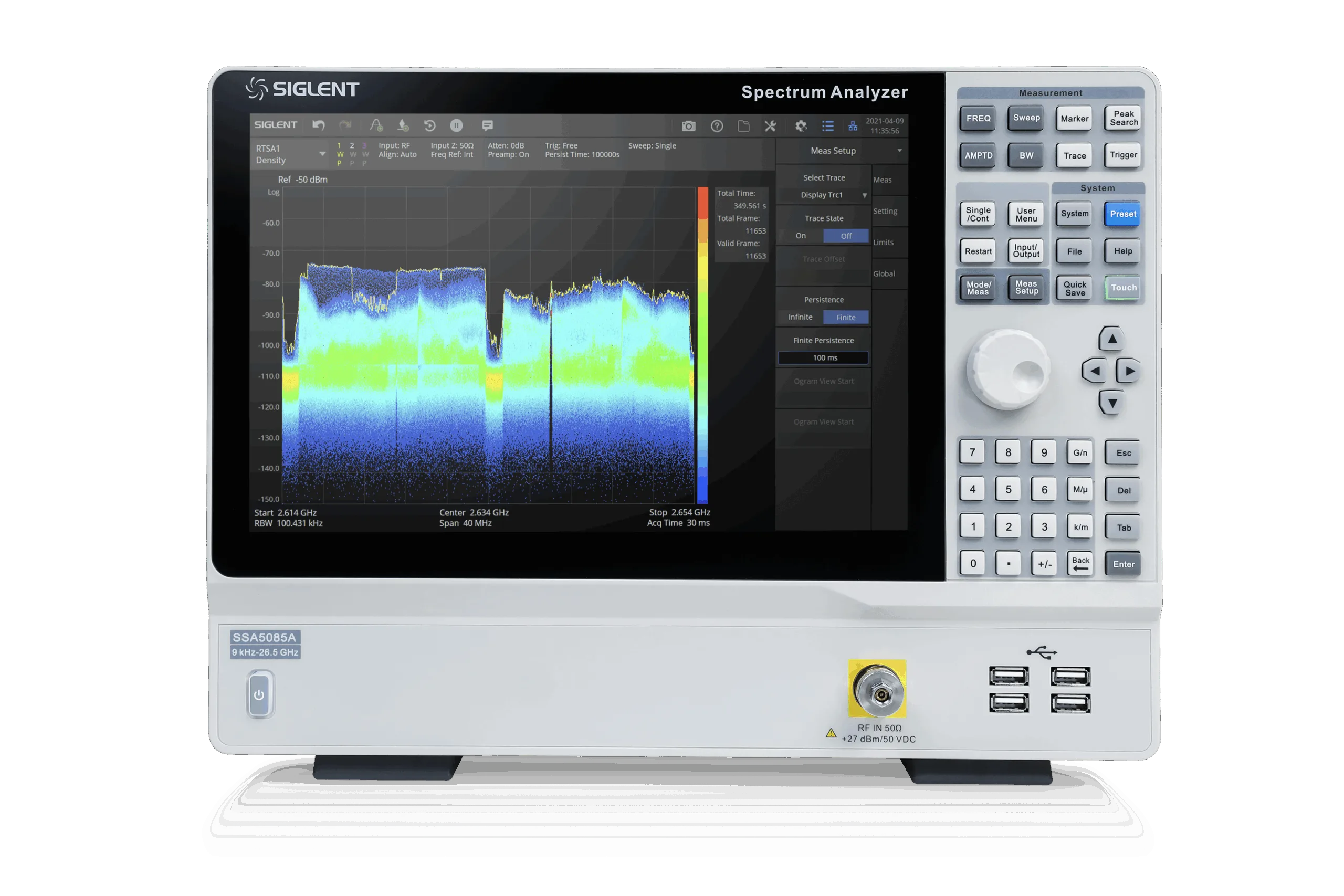

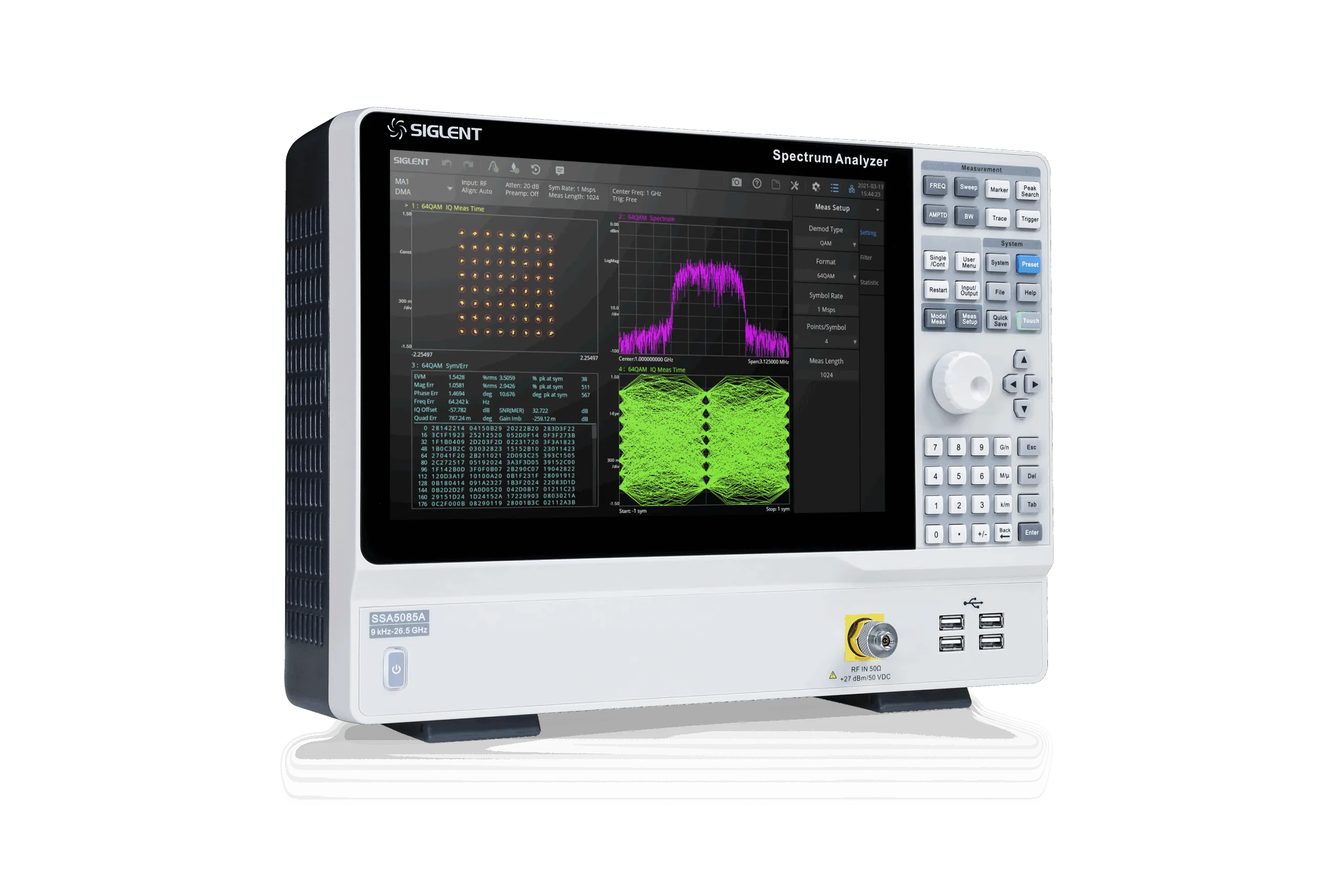

SSA5083A

9 kHz ~ 13.6 GHz; RBW 1 Hz ~ 10 MHz; DANL -165 dBm/Hz; SSB

Article no. SSA5083A

Frequency Max: 13600 MHz
Frequency min: 9000 Hz
Handheld: No
Analysis Bandwidth: 10 MHz

CHF 16'771.24

incl. 8.1% VAT · CHF 15'514.56 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

13600 MHz frequency max
9000 Hz frequency min
10 MHz analysis bandwidth
-165 dBm/Hz danl
Opt rtsa

The SSA5083A by Siglent operates over a frequency range from 9 kHz to 13.6 GHz, providing a wide spectrum for various applications. It features a resolution bandwidth (RBW) adjustable from 1 Hz to 10 MHz, allowing for precise signal analysis. The device offers a displayed average noise level (DANL) of -165 dBm/Hz, which supports the detection of very low-level signals. Its single sideband phase noise (SSB) is rated at less than -105 dBc/Hz, contributing to accurate frequency measurements. An optional real-time spectrum analyzer (RTSA) bandwidth of up to 40 MHz is available, enhancing its capability for real-time signal analysis. The analysis bandwidth is specified at 10 MHz, aligning with the RBW settings for detailed examination of signal characteristics. This model is not handheld, indicating it is designed for benchtop or stationary use. The maximum frequency capability is 13,600 MHz, and the minimum frequency is 9,000 Hz, covering a broad range suitable for diverse testing scenarios.
