SHA851A

9 kHz~3.6 GHz handheld spectrum analyzer, 100 kHz~3.6 GHz cable and antenna analyzer, -165 dBm/Hz Displayed Average

Article no. SHA851A

Frequency Max: 3600 MHz
Frequency min: 9000 Hz
Handheld: Yes
Analysis Bandwidth: 3 MHz

CHF 4'103.61

incl. 8.1% VAT · CHF 3'796.12 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

3600 MHz frequency max
9000 Hz frequency min
Handheld
3 MHz analysis bandwidth
-165 dBm/Hz danl

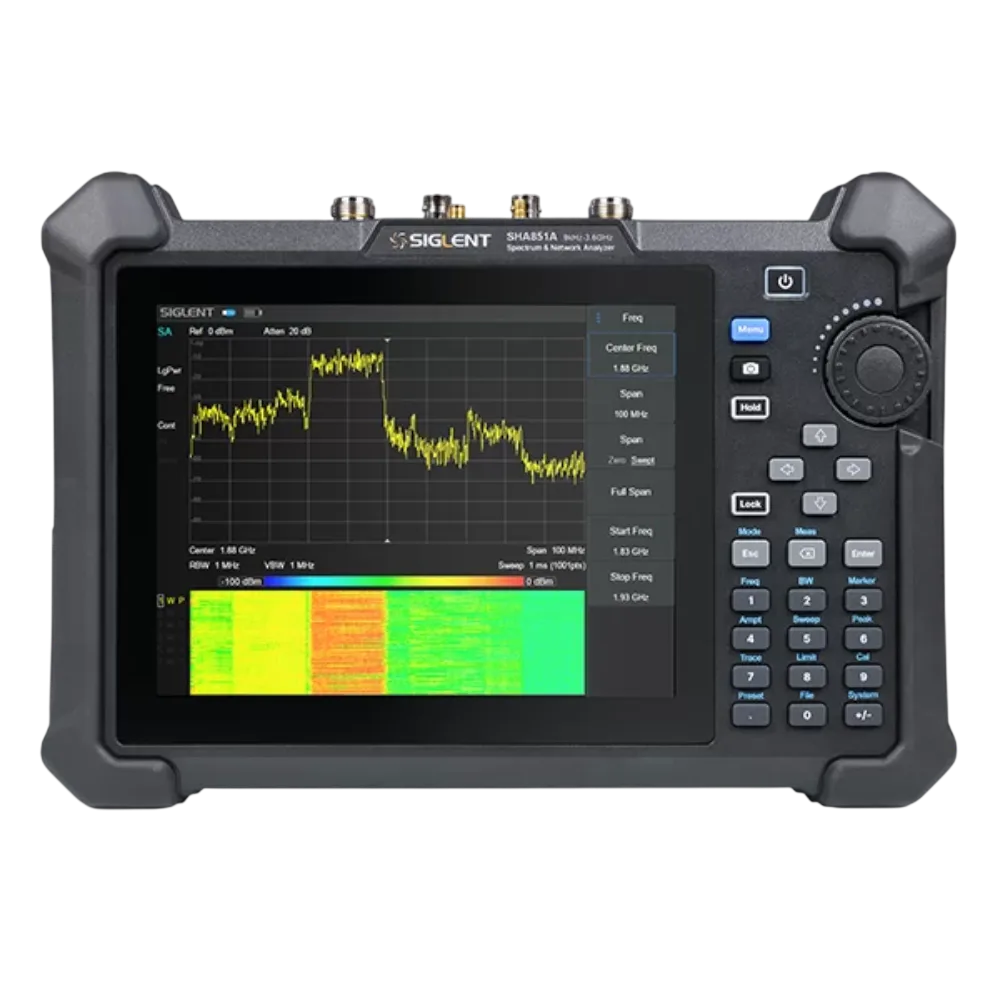

The SHA851A by Siglent is a handheld spectrum analyzer that operates over a frequency range from 9 kHz to 3.6 GHz. It also functions as a cable and antenna analyzer covering frequencies from 100 kHz to 3.6 GHz. The device features a displayed average noise level of -165 dBm/Hz, allowing for sensitive signal detection. Its phase noise is rated at -104 dBc/Hz, contributing to its measurement precision. The maximum frequency supported by the analyzer is 3600 MHz, while the minimum frequency is 9000 Hz. It has an analysis bandwidth of 3 MHz, which defines the range of frequencies it can analyze simultaneously. Designed for portability, the SHA851A is handheld, making it suitable for field use and on-site testing without the need for additional equipment.
