SSA3032X
9KHz-3.2GHz, Phase Noise
Article no.
SSA3032X
- Frequency Max
- 3200 MHz
- Frequency min
- 9000 Hz
- Handheld
- No
- Analysis Bandwidth
- 1 MHz
CHF 2'370.85
incl. 8.1% VAT · CHF 2'193.20 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 3200 MHz frequency max
- 9000 Hz frequency min
- 1 MHz analysis bandwidth
- -161 dBm/Hz danl

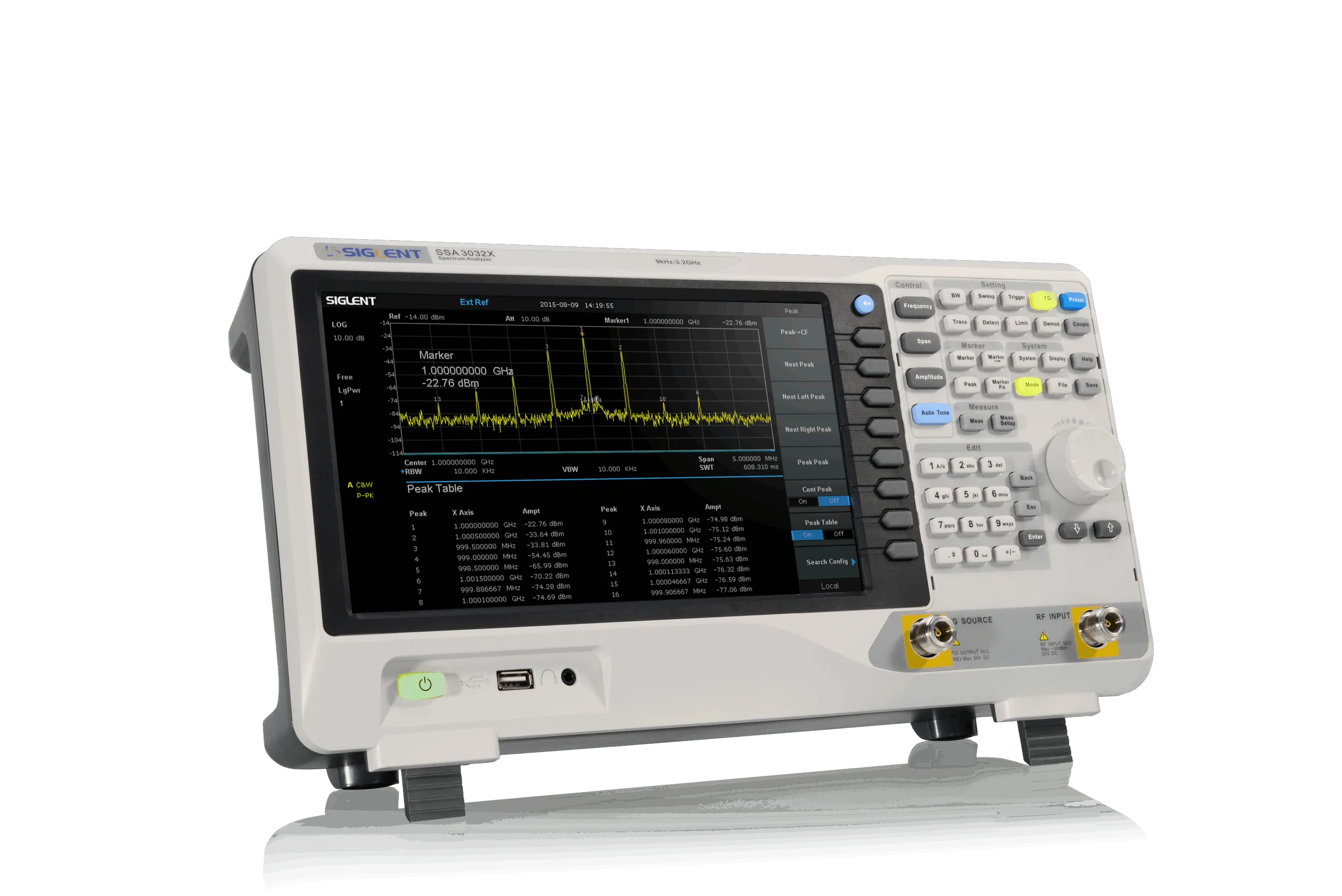

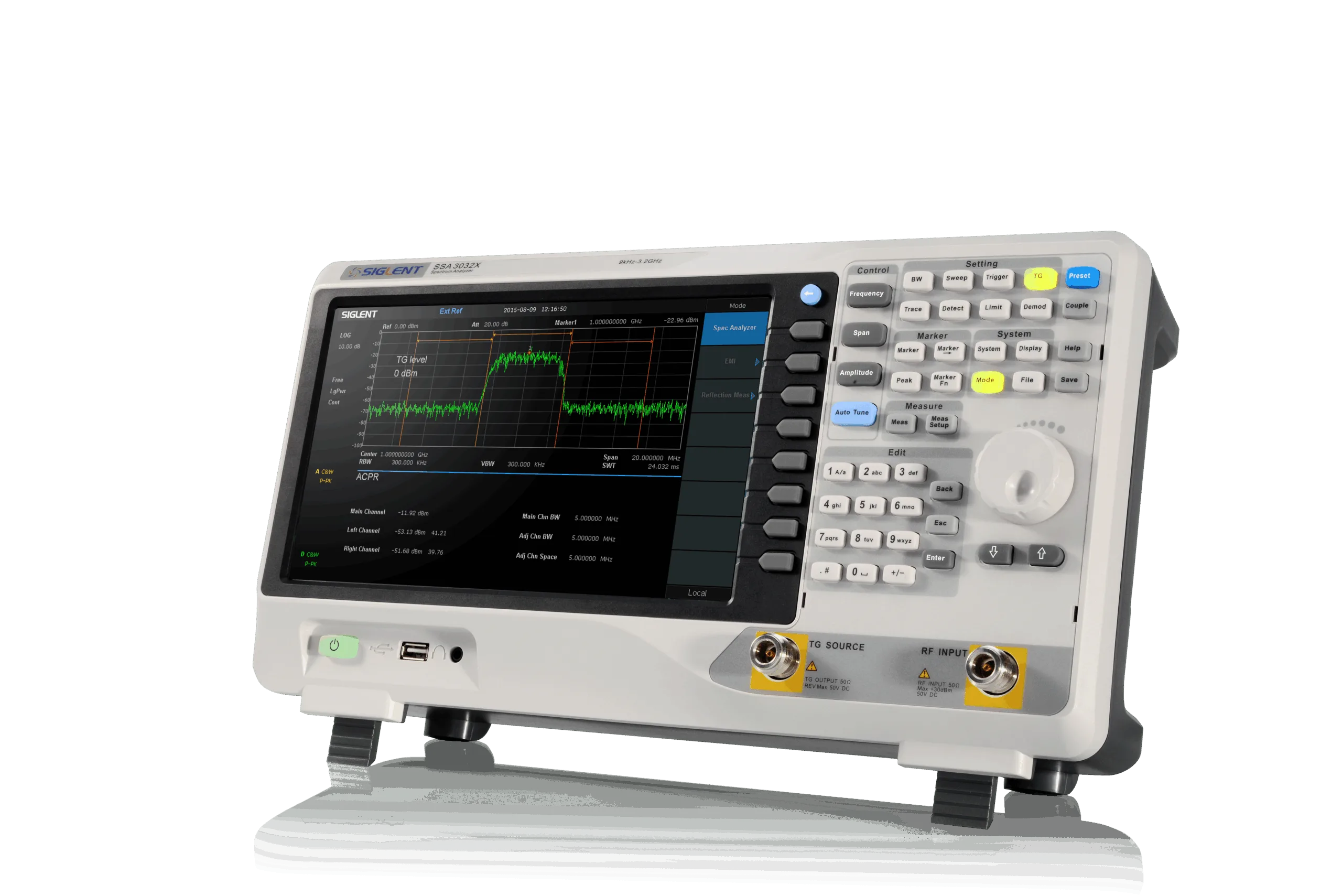

The SSA3032X by Siglent operates over a frequency range from 9 kHz to 3.2 GHz, providing a maximum frequency of 3200 MHz and a minimum frequency of 9000 Hz. It features a phase noise level of less than -98 dBc/Hz, ensuring precise signal analysis. The device offers a resolution bandwidth (RBW) adjustable between 10 Hz and 1 MHz, allowing for flexible measurement settings. Its minimum displayed average noise level (DANL) is -161 dBm/Hz, which supports the detection of very low-level signals. The total amplitude accuracy is maintained below 0.7 dB, contributing to reliable amplitude measurements. The SSA3032X is equipped with a 10.1-inch WVGA display with a resolution of 1024x600 pixels, providing clear visualization of data. It is designed as a non-handheld instrument and includes an analysis bandwidth of 1 MHz for detailed signal examination.

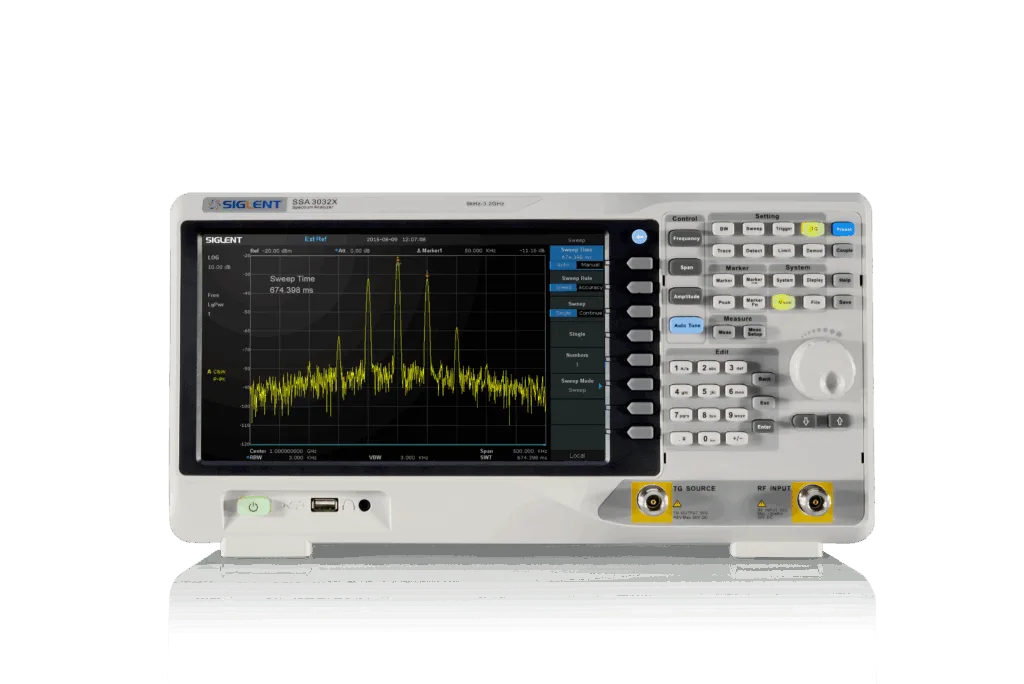

Video
SSA3032X
Technical data
Specifications
6- Frequency Max
- 3200 MHz
- Frequency min
- 9000 Hz
- Handheld
- No
- Analysis Bandwidth
- 1 MHz
- DANL
- -161 dBm/Hz
- RTSA
- No
