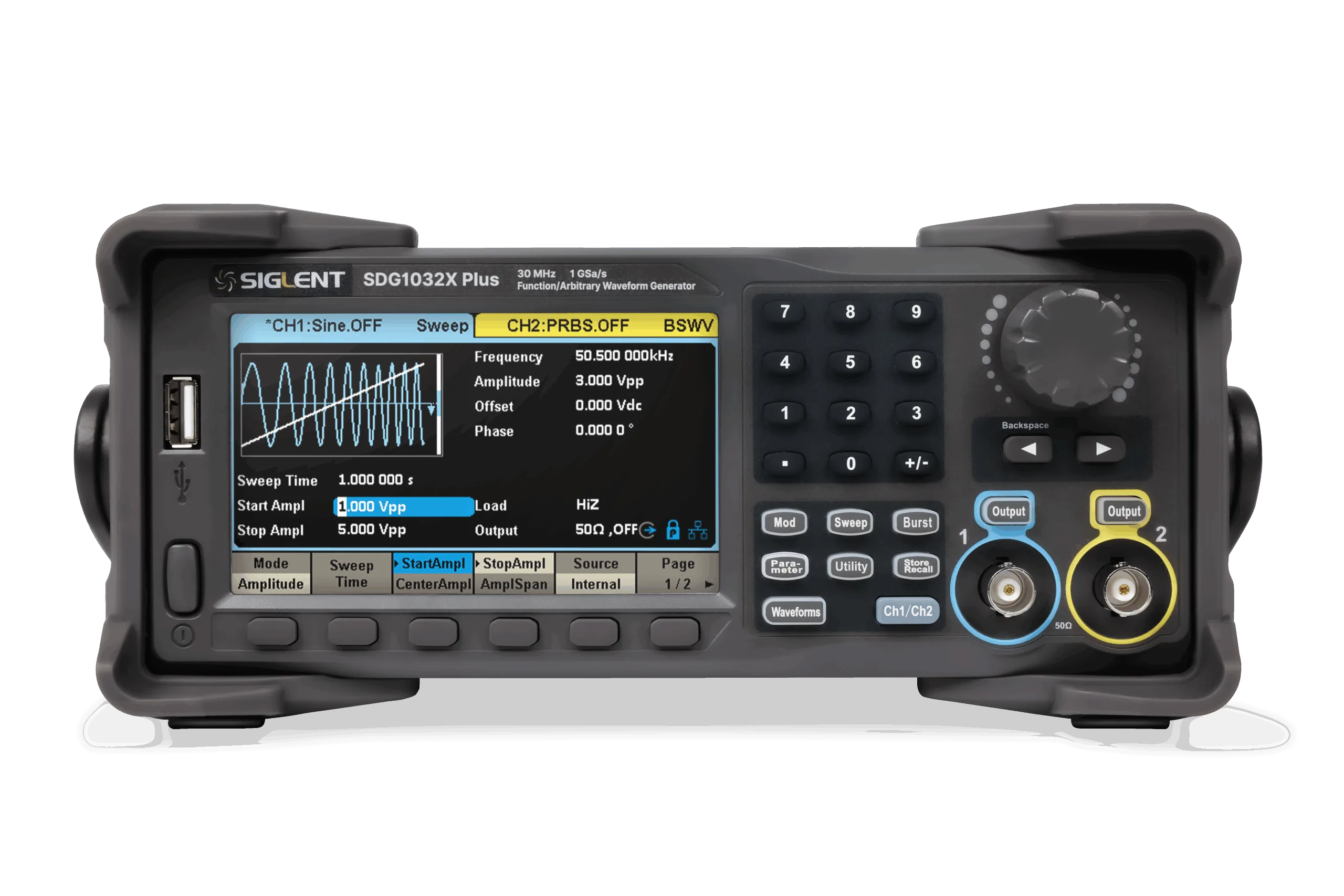

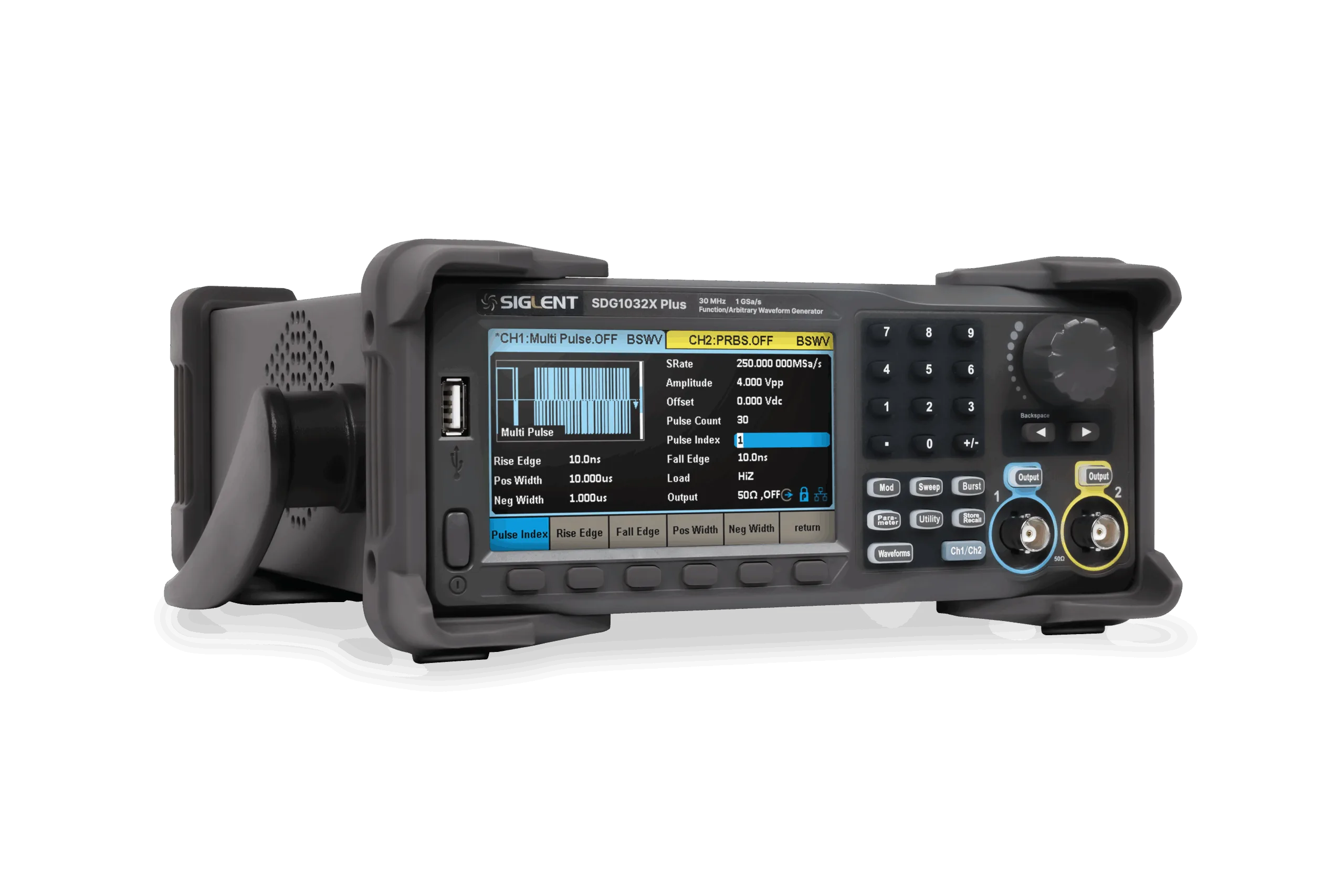

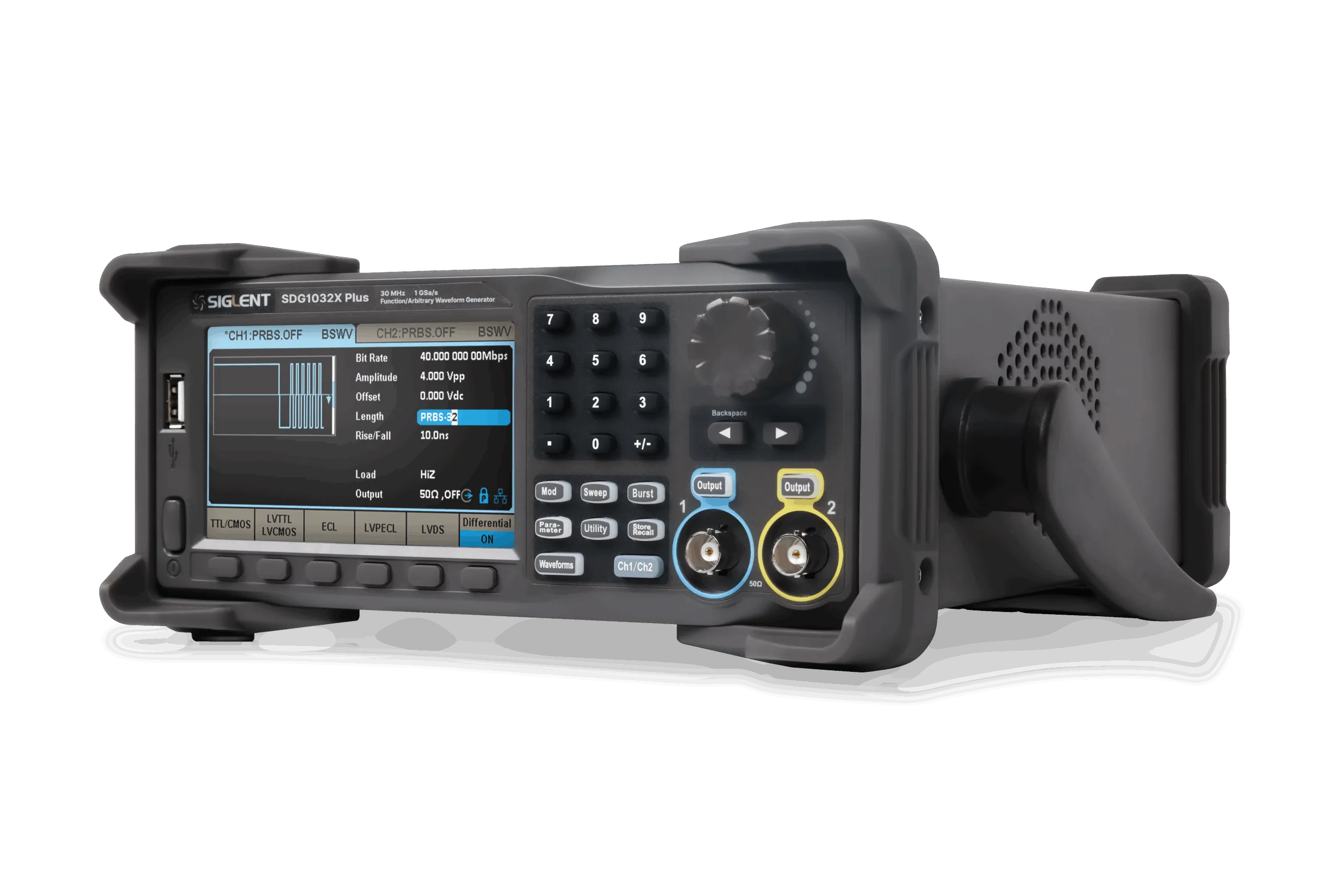

SDG1032X Plus
30 MHz 2 CH AWG; 1 GSa/s sampling rate; 16-bits vertical resolution; 8 Mpts/CH Arbitrary waveform length; ±10 V Max. amplitude;
Article no.
SDG1032X Plus
- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 30 MHz
- Amplitude
- 10 V
CHF 387.27
incl. 8.1% VAT · CHF 358.25 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 16 Bits vertical resolution
- 30 MHz frequency
- 10 V amplitude
- Sweep
The SDG1032X Plus from Siglent is a 30 MHz dual-channel arbitrary waveform generator featuring a 1 GSa/s sampling rate and 16-bit vertical resolution. It offers an 8 Mpts per channel arbitrary waveform length, allowing for detailed and complex signal generation. The device supports a maximum amplitude of ±10 V, providing a wide range of output voltage levels. It includes sweep and burst functions, enhancing its versatility for various testing scenarios. The sampling rate is 250 MS/s with a memory depth of 0.016 Mpts. The minimum transition time is 10 ns, and the minimum pulse width is 19.4 ns, enabling precise control over signal timing. This model is designed to deliver accurate and flexible waveform generation for a variety of applications.
Video
SDG1032X Plus
Technical data
Specifications
10- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 30 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 1000 MS/s
- Memory
- 8 MPts
- Transition time min
- 10 ns
- Pulse Width min
- 19.4 ns
Presentation
Product presentation
PDFDocuments
