T3DSO3104HD
1 GHz, 4 GS/s interleaved, 4 CH, 400 Mpts/Ch interleaved, DSO
Article no.
T3DSO3104HD
- Channels
- 4
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 2000 MS/s
- Memory Depht
- 100 Mpts
CHF 16'917.65
incl. 8.1% VAT · CHF 15'650.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 1000 MHz bandwidth
- 2000 MS/s sampling rate
- 100 Mpts memory depht
- 12 Bits vertical resolution

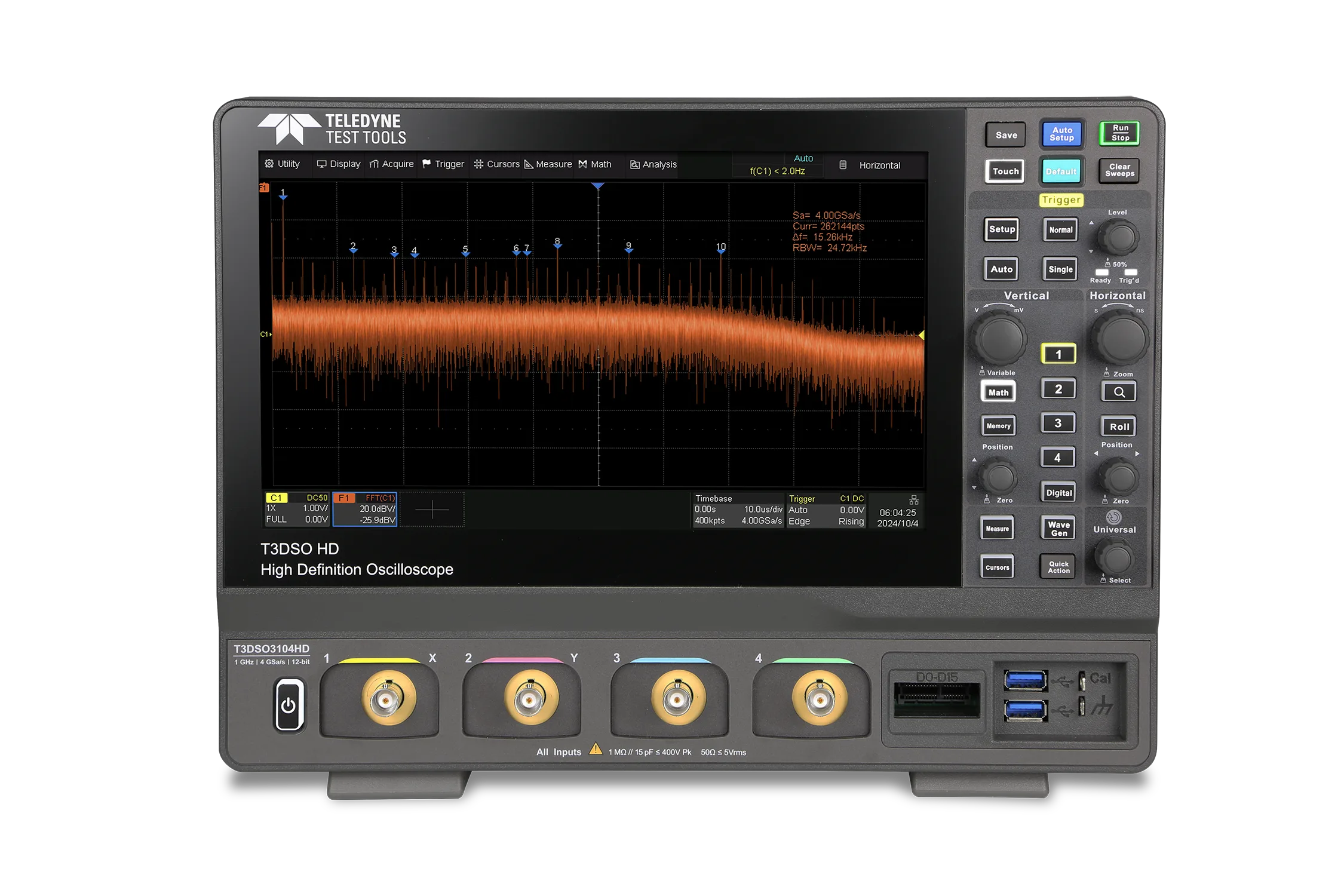

The Teledyne Lecroy T3DSO3104HD is a digital storage oscilloscope featuring a bandwidth of 1000 MHz and a maximum frequency of 1 GHz. It offers four channels with an interleaved sampling rate of 4 GS/s and a per-channel sampling rate of 2000 MS/s. Each channel is equipped with a memory depth of 100 Mpts, allowing for detailed signal capture and analysis. The device provides a vertical resolution of 12 bits, enhancing the precision of waveform measurements. It includes a touch screen interface for user interaction and supports 400 Mpts per channel in interleaved mode. This oscilloscope is designed to handle complex signal analysis with its high sampling rate and substantial memory capacity across multiple channels.

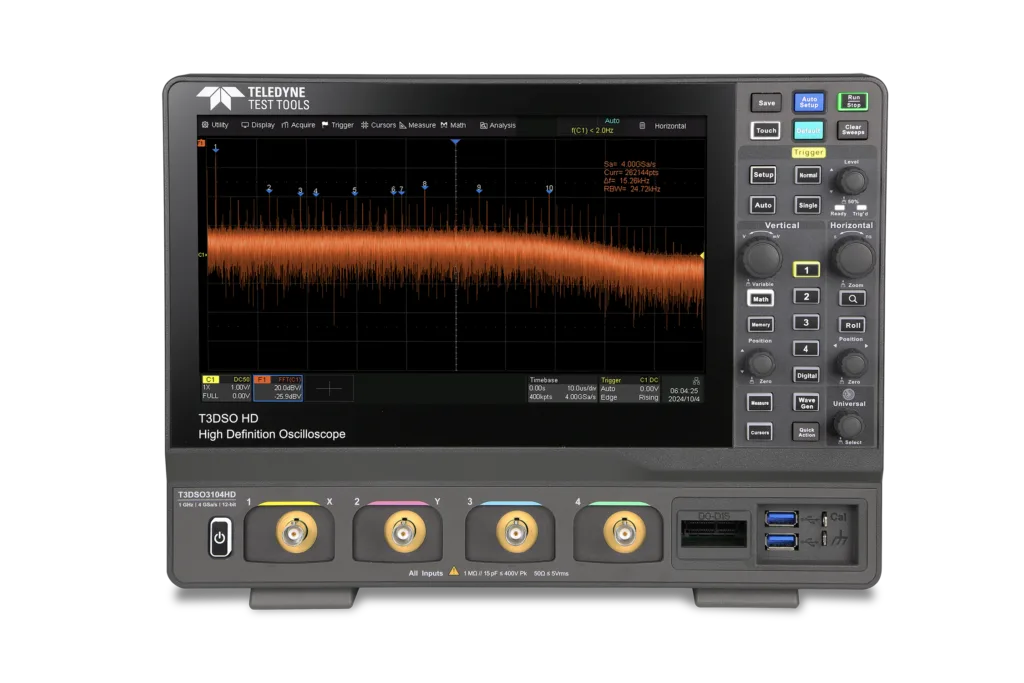

Video
T3DSO3104HD
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 2000 MS/s
- Memory Depht
- 100 Mpts
- Vertical Resolution
- 12 Bits

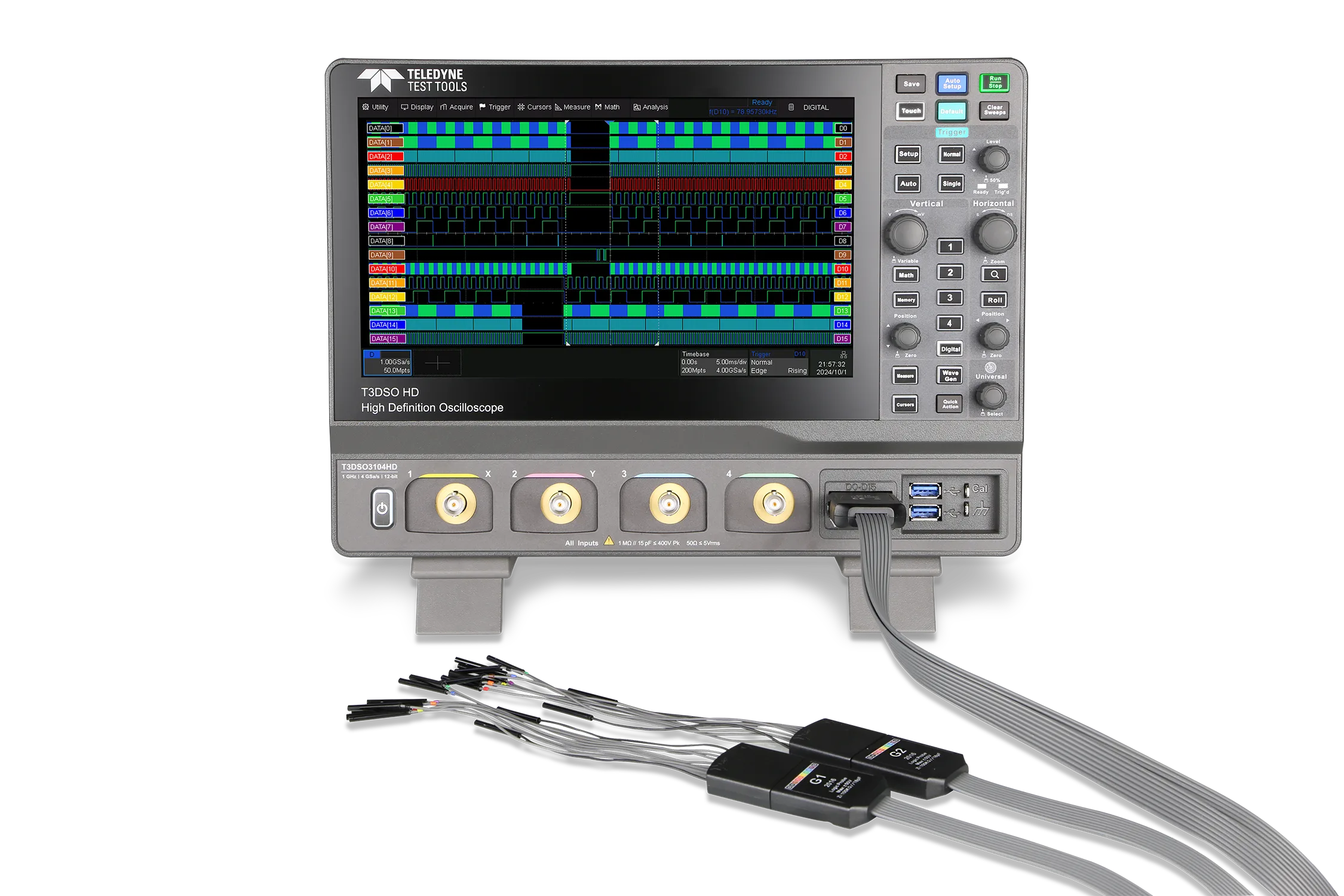

- Digital Channels
- Opt
- Touch Screen
- Yes
- Imax AC
