T3DSOH1102-ISO
100 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO with Isolated Channels, 5.6" Color Display
Article no.
T3DSOH1102-ISO
- Channels
- 2
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 12 Mpts
CHF 4'259.14
incl. 8.1% VAT · CHF 3'940.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 100 MHz bandwidth
- 500 MS/s sampling rate
- 12 Mpts memory depht
- 8 Bits vertical resolution

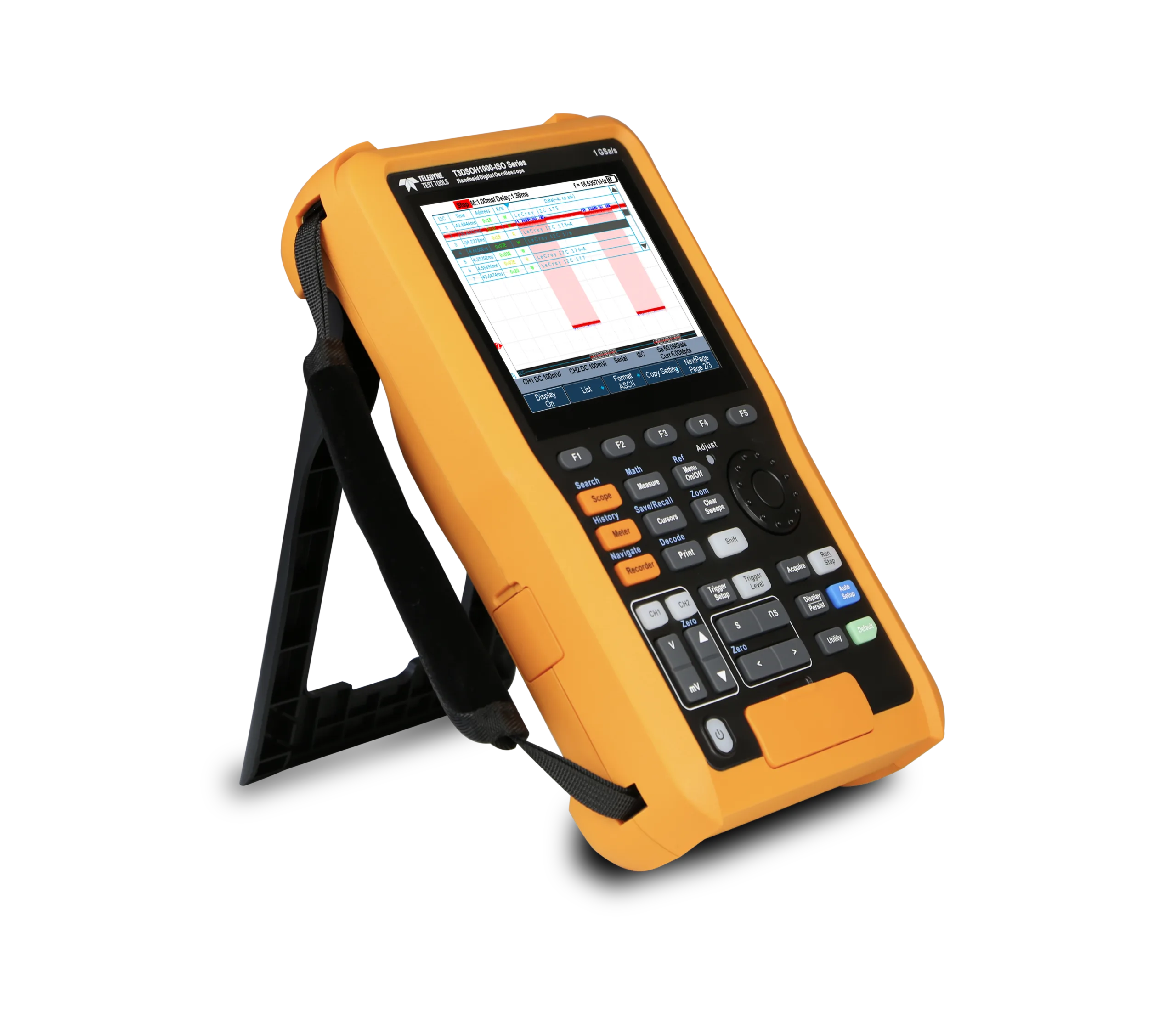

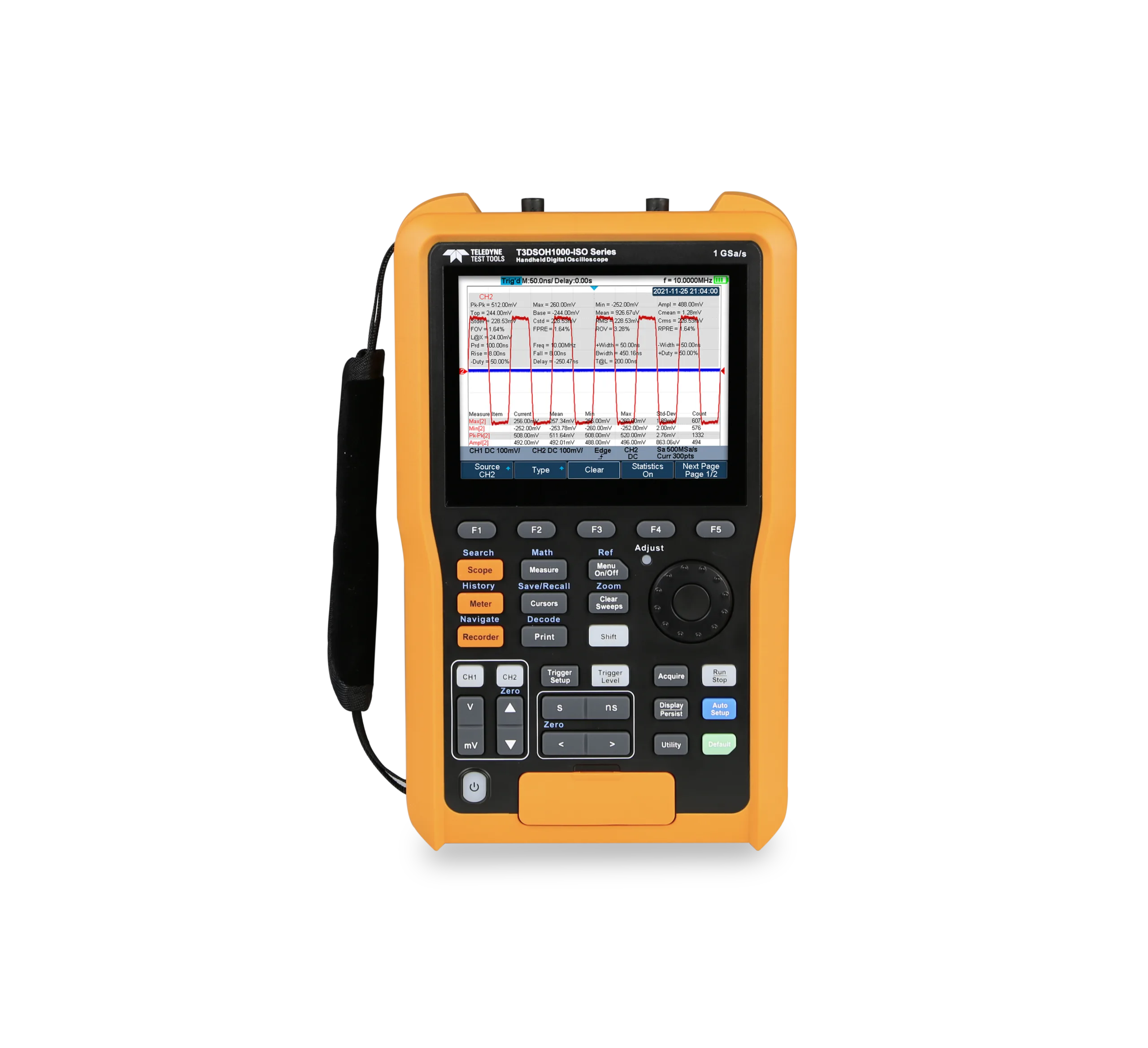

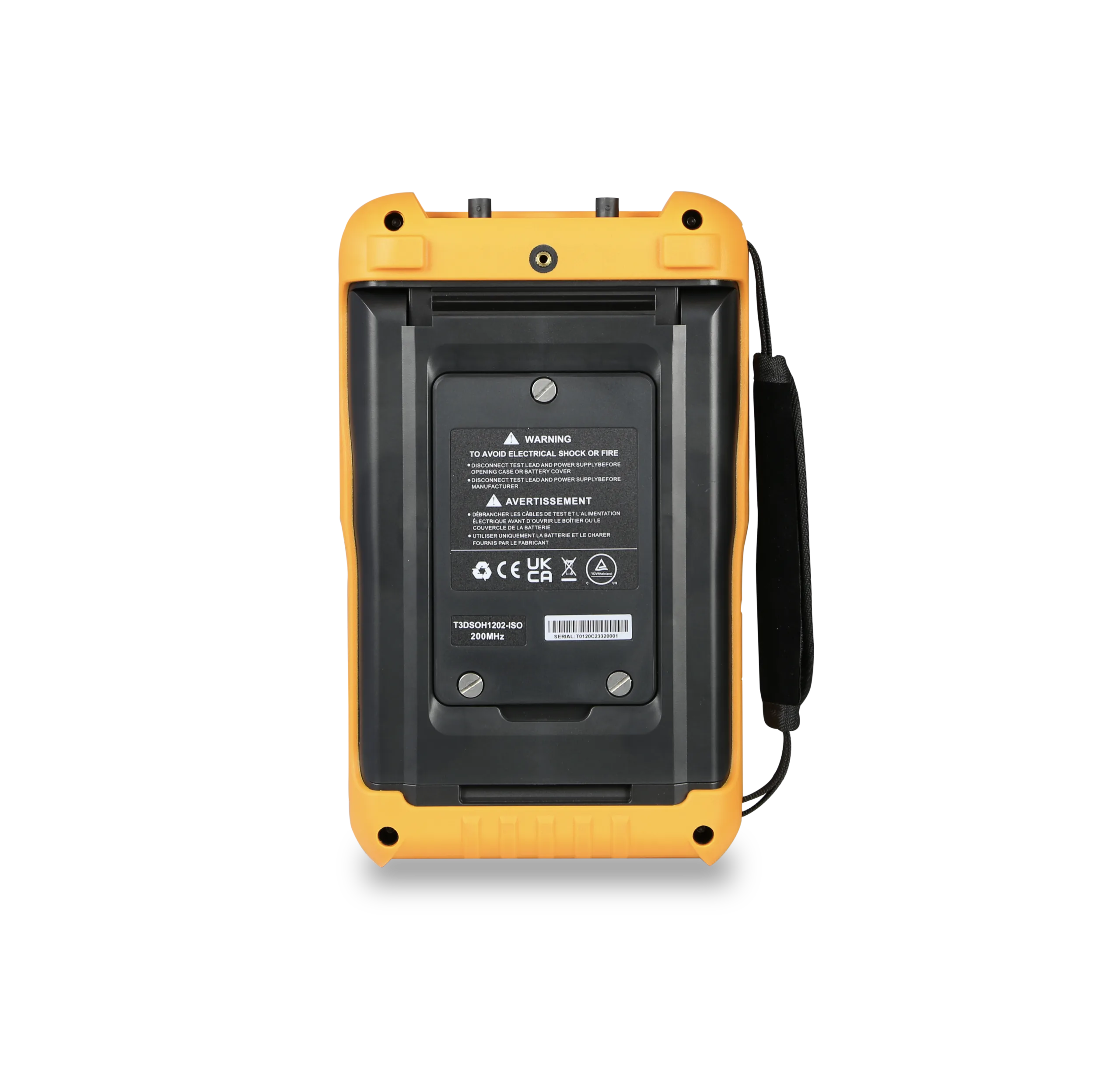

The Teledyne Lecroy T3DSOH1102-ISO is a handheld digital storage oscilloscope featuring two isolated channels with a bandwidth of 100 MHz. It offers a sampling rate of 500 MS/s per channel and a memory depth of 12 million points per channel, allowing for detailed signal analysis. The device includes an 8-bit vertical resolution and a 5.6-inch color display for clear visualization of waveforms. Designed for single-channel operation at 1 GS/s, it supports high-speed data acquisition. The oscilloscope does not include digital channels or a touch screen interface. Its isolated channels provide enhanced measurement safety and flexibility in various testing environments. This model is suitable for applications requiring precise signal capture and analysis with reliable isolation between channels.
Technical data
Specifications
8- Channels
- 2
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 12 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- No
- Touch Screen
- No
- Imax AC
