AWG2182-256M
2ch 600Ms/s AWG 256Ms memory - 180MHz AFG
Article no.
AWG2182-256M
- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 180 MHz
- Amplitude
- 6 V
CHF 11'296.45
incl. 8.1% VAT · CHF 10'450.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 16 Bits vertical resolution
- 180 MHz frequency
- 6 V amplitude
- Sweep

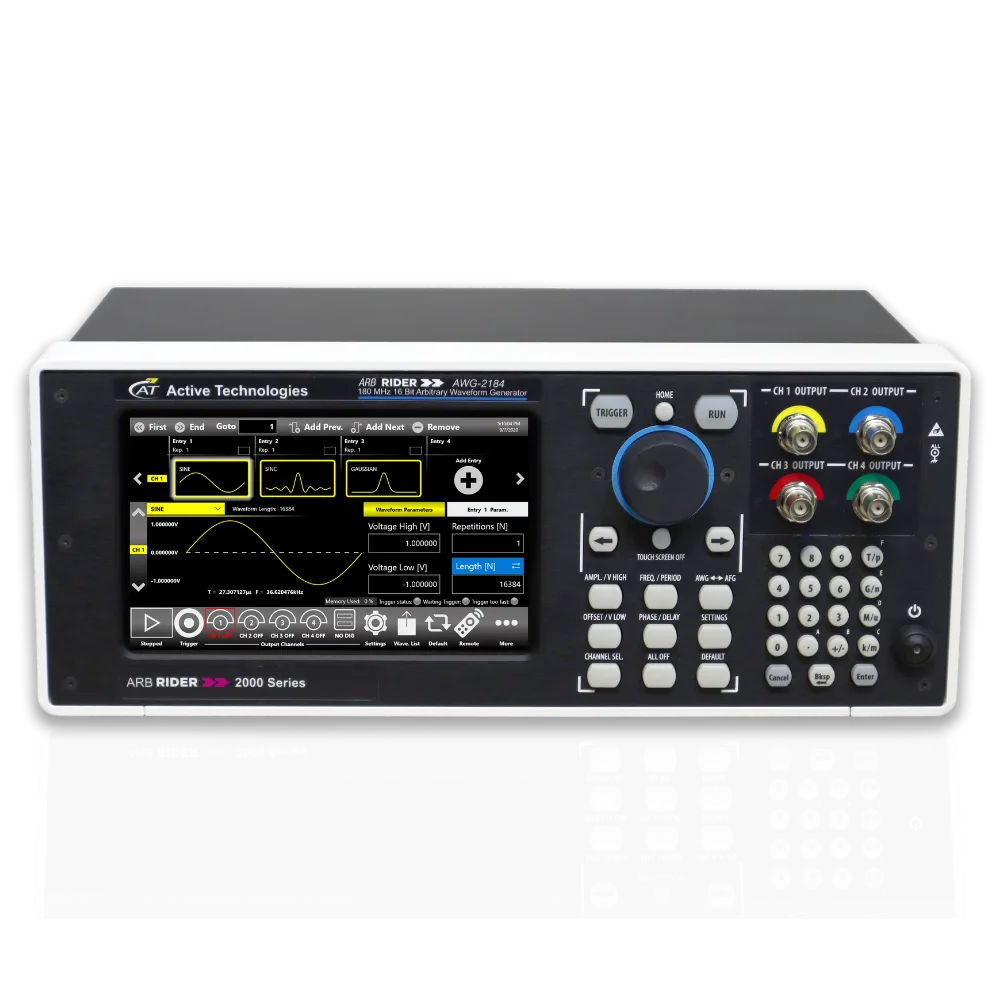

The AWG2182-256M from Active Technologies features a maximum frequency of 180 MHz and an amplitude of 6 V. It supports sweep and burst functions, allowing for versatile signal generation. The device offers a high sampling rate of 600 MS/s and a memory depth of 256 Mpts, enabling detailed waveform creation and storage. It has a minimum transition time of 4 ns and a minimum pulse width of 5 ns, suitable for precise timing applications. This model is designed to handle complex signal requirements with its advanced specifications and robust performance capabilities.
Technical data
Specifications
10- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 180 MHz
- Amplitude
- 6 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 600 MS/s
- Memory
- 256 MPts
- Transition time min
- 4 ns
- Pulse Width min
- 5 ns
