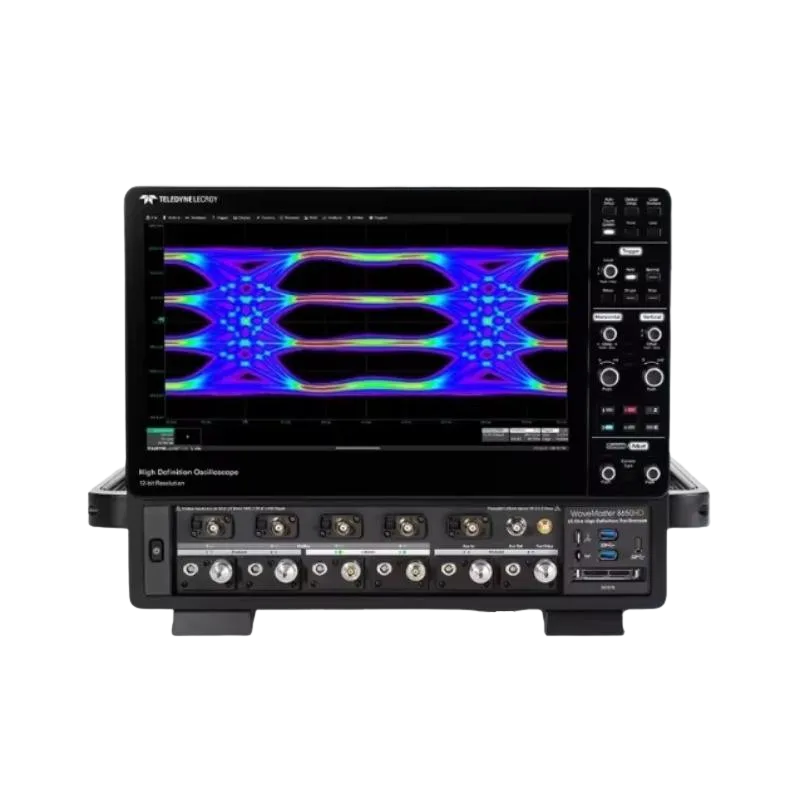

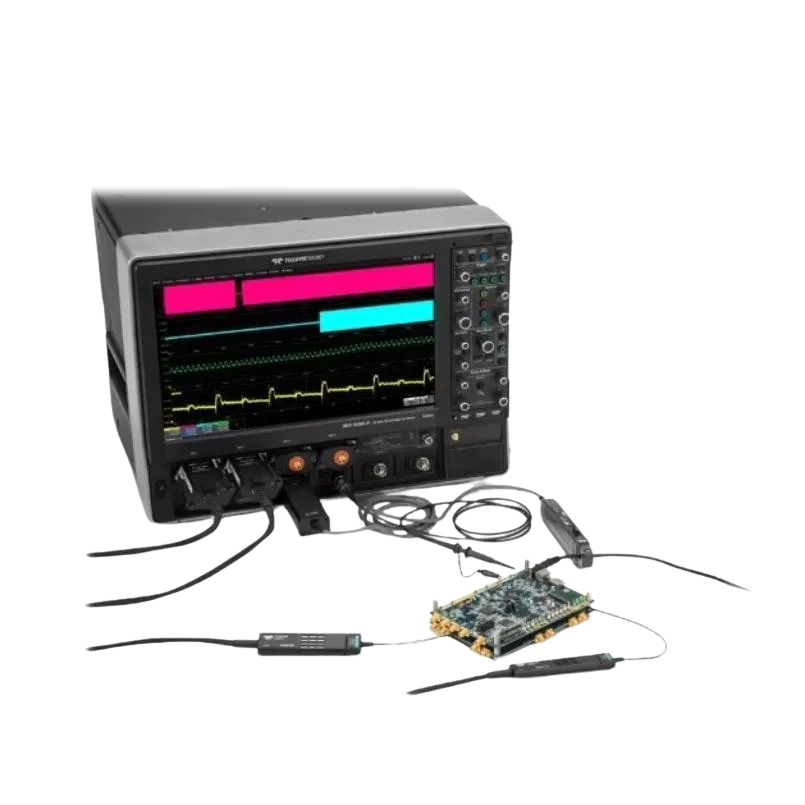

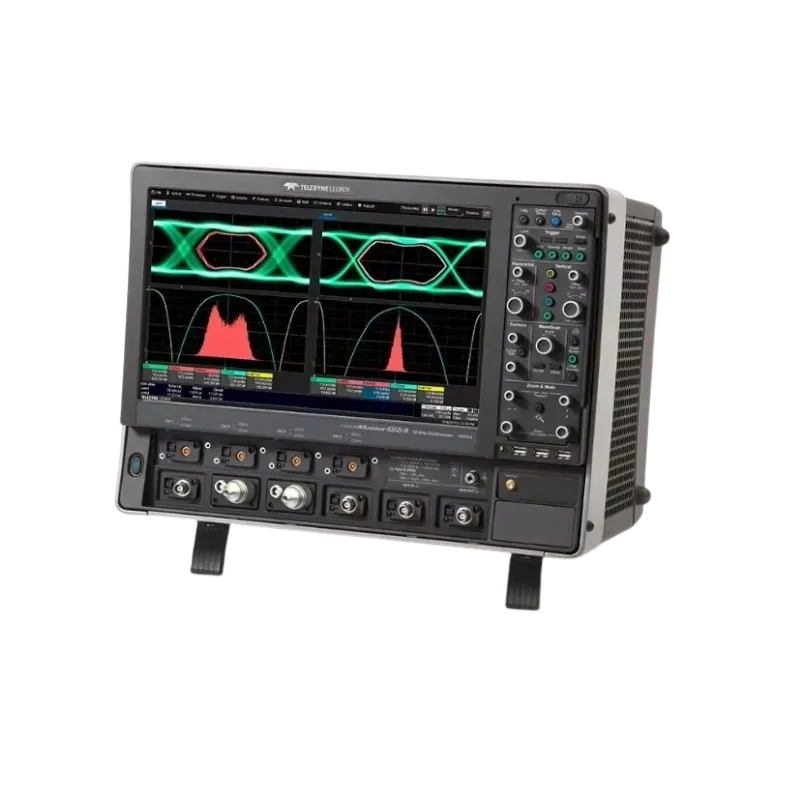

SDA 8080HD
8 GHz, 12 bits, 80 GS/s, 500 Mpts/Ch High Definition Serial Data Analyzer, 8 Gbps serial trigger
Article no.
SDA 8080HD
- Channels
- 4
- Bandwidth
- 8000 MHz
- Sampling Rate/Channels
- 80000 MS/s
- Memory Depht
- 8000 Mpts
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 4 channels
- 8000 MHz bandwidth
- 80000 MS/s sampling rate
- 8000 Mpts memory depht
- 12 Bits vertical resolution
The Teledyne Lecroy SDA 8080HD is a high-definition serial data analyzer designed to handle frequencies up to 8 GHz with a vertical resolution of 12 bits. It features a sampling rate of 80 GS/s per channel and offers a memory depth of 500 Mpts per channel, enabling detailed signal analysis. The device supports four channels and includes digital channels for comprehensive data capture. With an 8 Gbps serial trigger, it is capable of precise triggering on high-speed serial data streams. The analyzer also incorporates a touch screen interface for user-friendly operation. Its bandwidth reaches 8000 MHz, and the sampling rate per channel is 80000 MS/s, ensuring high-speed data acquisition. The memory depth is specified as 8000 Mpts, supporting extensive data storage during analysis.
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 8000 MHz
- Sampling Rate/Channels
- 80000 MS/s
- Memory Depht
- 8000 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Yes
- Touch Screen
- Yes
- Imax AC
